Anodized Pitched Tin Roof Mounting

Our Aluminum Alloy Pitched Tin Roof Mounting System is a good solution for metel tile roof

Due to its easy installation,light weight, durability and competitive price, so it's widely use in different countries


  • SHIPPING PORTXIAMEN
  • PRODUCT ORGINXIAMEN CHINA
  • BRANDXHFSOLAR
  • SURFACEANODIZED
  • MAX WIND SPEED60m/s
  • TILT ANGLEAS PER ROOF
  • SNOW LOAD 1.4KN/m²
  • DELIVERY7-30 DAYS
  • SERVICE LIFE20-25 YEARS
  • WARRANTY10 YEARS
  • PAYMENT TT/LC
  • MATERIALAI6005 +SUS304 +STEEL

Our aluminum alloy pitched tin roof mounting system is designed for residential and commercial applications.

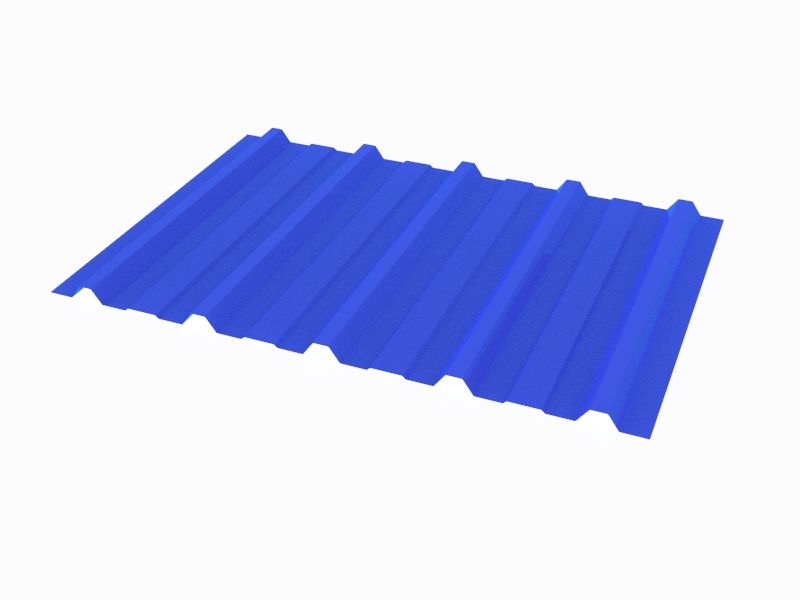

 It's a good solution for  steel tile roof.The model is according to the section specifications ofColor steel tile roof to choose the model, Which is simple installation, light quality, suitable for most of the Steel tile roof.


Anodized Surface Pitched Tin Roof Mounting

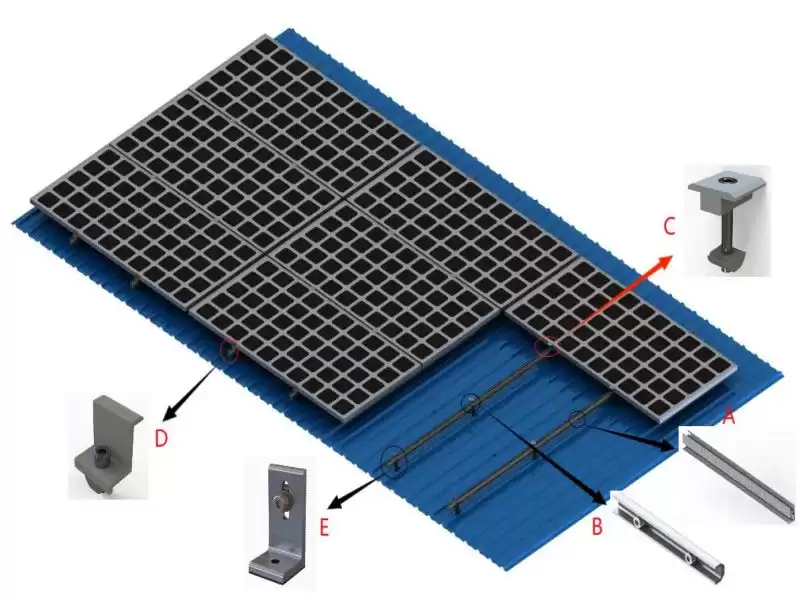

SOLAR PANEL RAIL

A

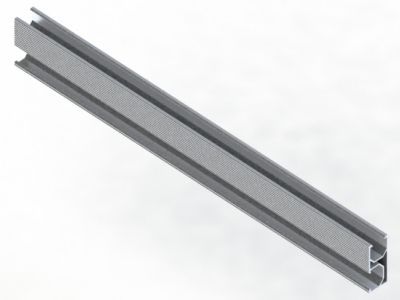

XHF-R02
Extruded AI6005-T5 rail profile
To support solar panel..


SOLAR PANRL RAIL SPLICE

B

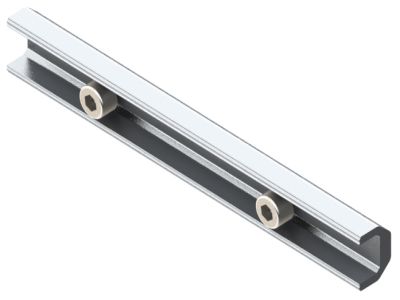

XHF-R02-S
Rail Splice, AI6005 & SUS304
To extend rail length.


MIDDLE CLAMP TO FIX THE SOLAR PANEL

C

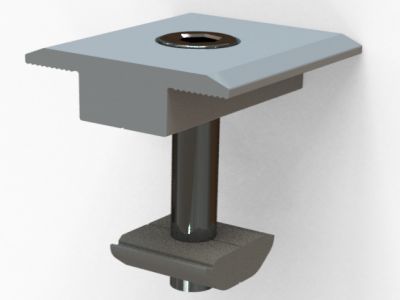

XHF-IC-40
Mid clamp, AI6005 & SUS304 To fix framed panel on rail

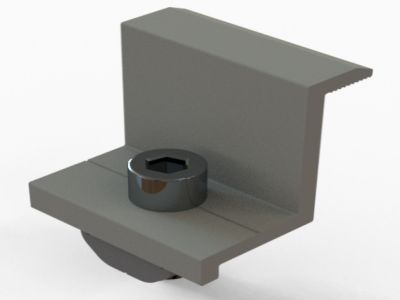

END CLAMP TO FIX THE SOLAR PANEL

D


XHF-SC-40
Side clamp, AI6005 & SUS304 To fix framed panel on rail


L feet to fix the rail

E

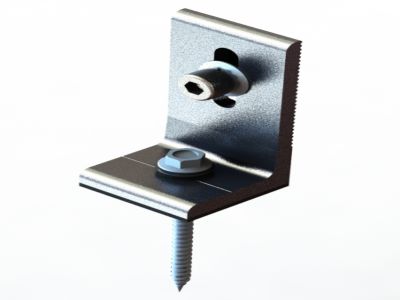

XHF-TH-L-B,

L footwood screw for wood beam self tapping screw for steel beam










Parameters

Application
Pitch Tin Roof
Max Building Height
Up to 20m(=65ft).
Max Wind Speed
60 m/s
Snow Load
1.4 KN/m2
Materia
Aluminum 6005-T5
Warranty
 10 years warranty; 25 years service life.



Pitched tin roof mountingis designed for residential and commercial applications.
This system allows installation onpitched  roofs.
Corrosion resistance is achieved through anodised structural grade aluminium and stainless steel components.


Durable
Low-cost
Easy installation
Lightweight
Reduce labor costs

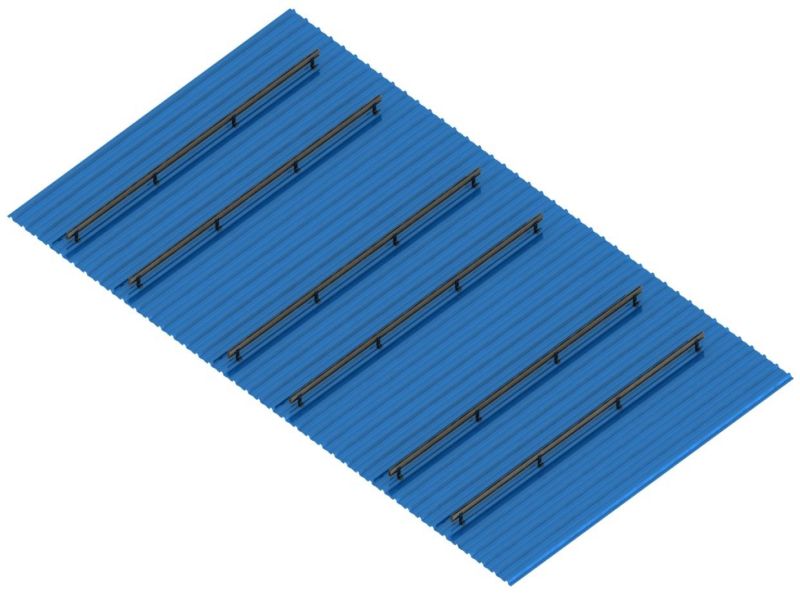

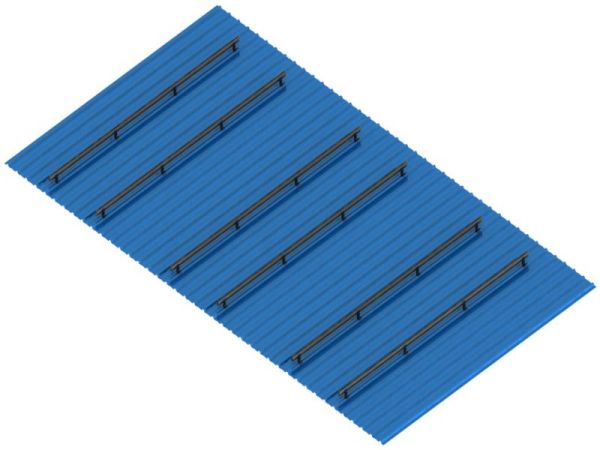

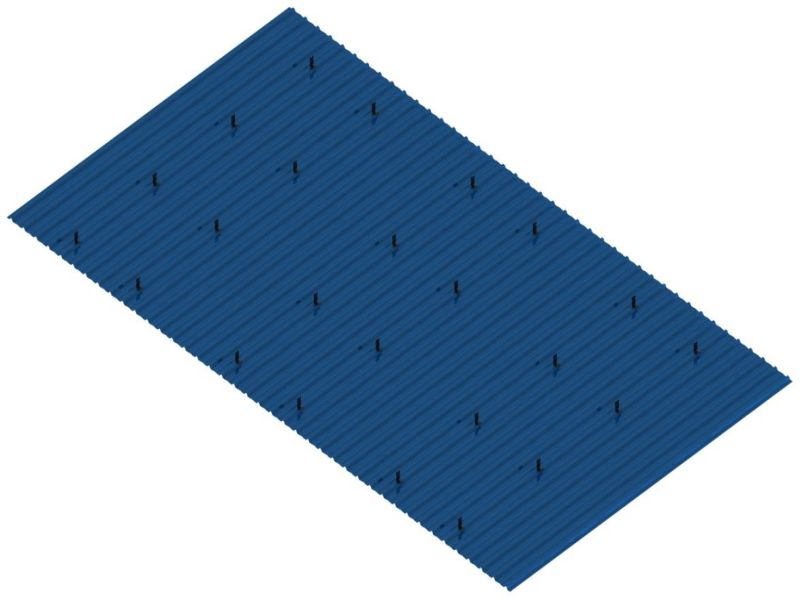

Install the L feet to the Pitched Tin Roof

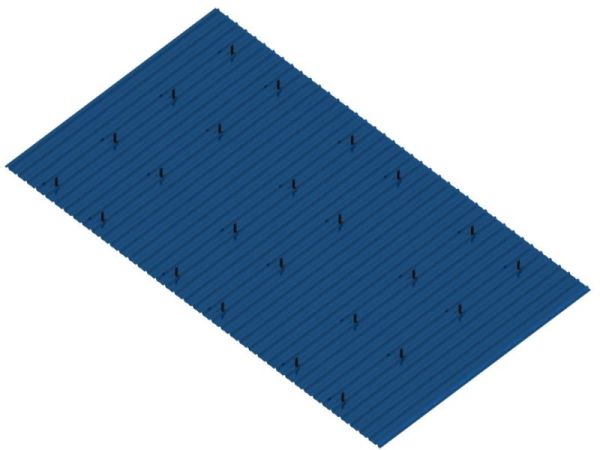

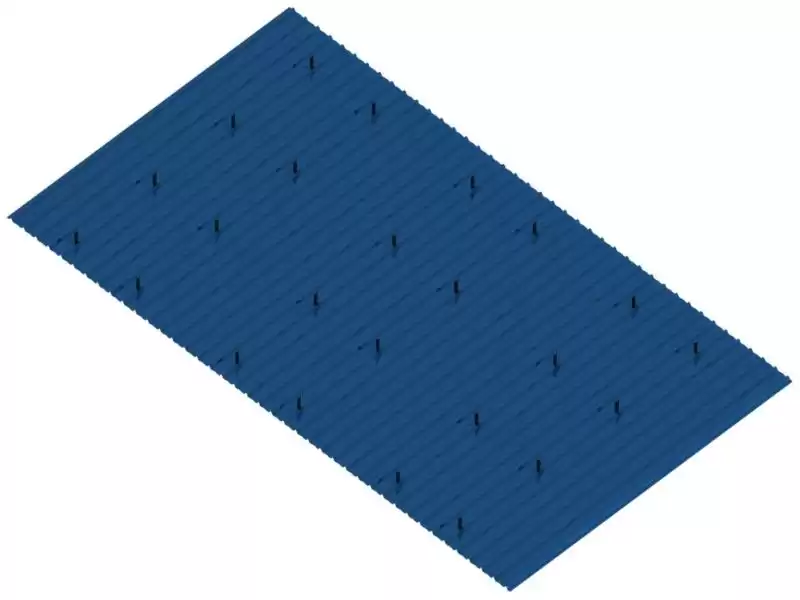

Step 1:Install L foot on tin roofing.



Fix the panel on the L feet

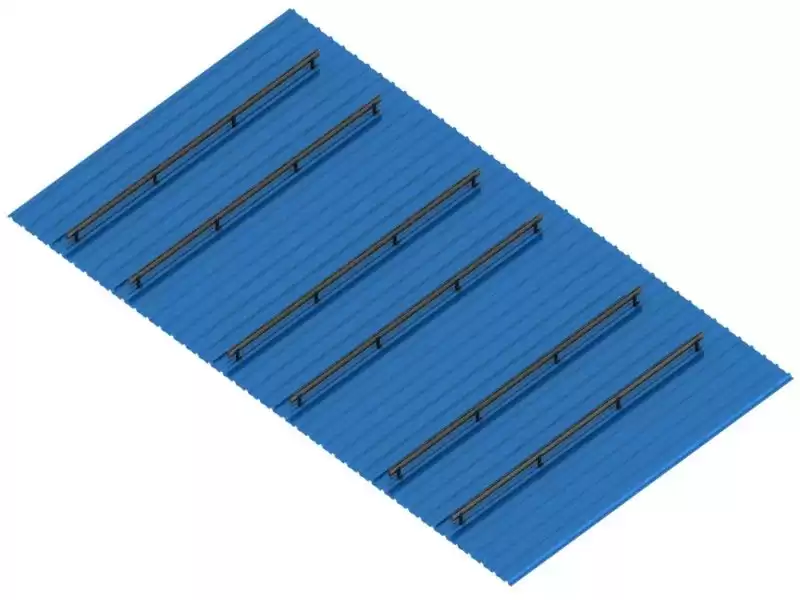

Step 2: Fix solar rail on L foot and locking by T modules set.


Install the solar panel on the rail

Step 3: Put solar panel on rail and fix with solar clamp.
