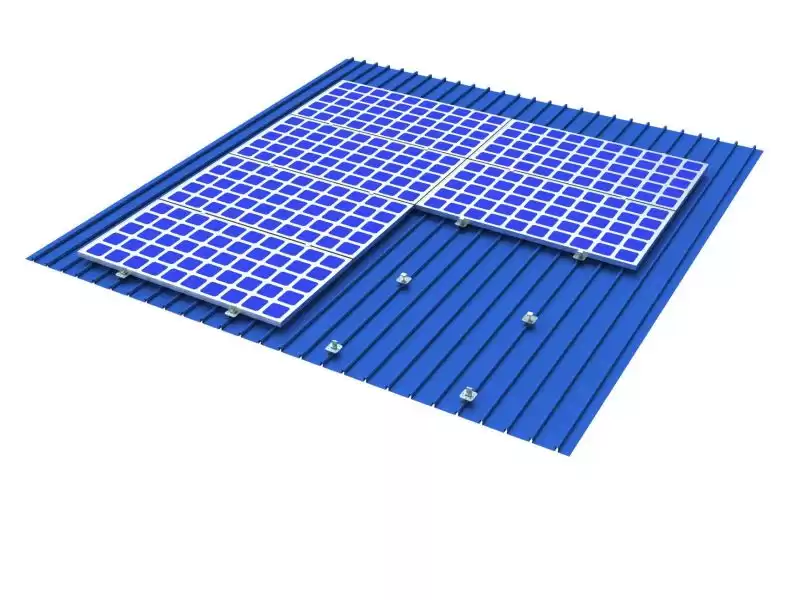

Our standing seam roof mounting is designed for residential and commercial applications.
It use railless clamp hookto fix Solar panel.So it needn't install rail and reduce the installation steps and save time.
It's easy installation, beautiful, strong wind resistance, Strong ability to withstand snow
Dute to the good price so its very popular in different market
|

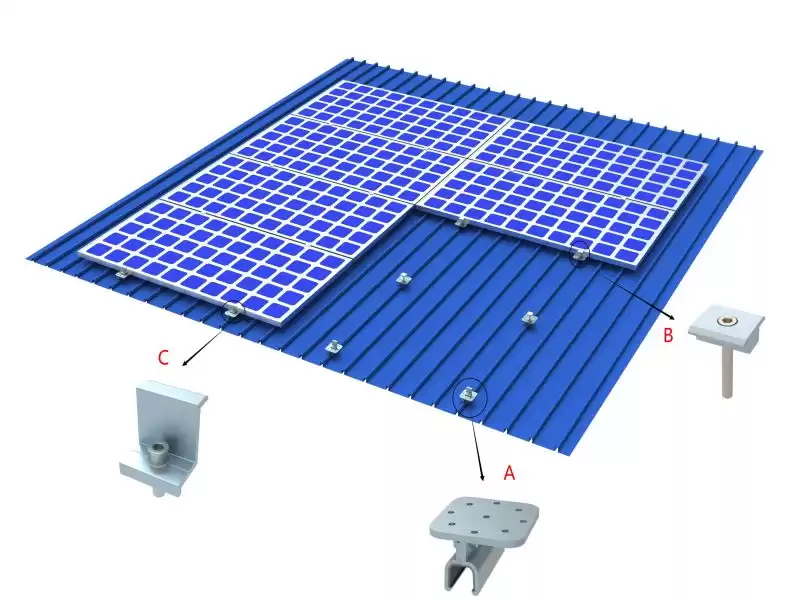

A

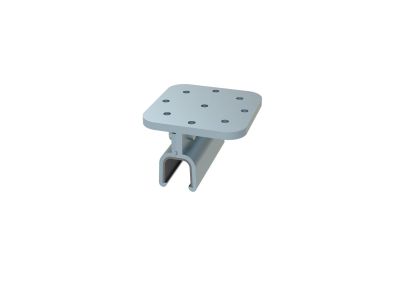

XHF-KLK-700, railless clamp hook
Aluminum6005-T5 & SUS410
|
B

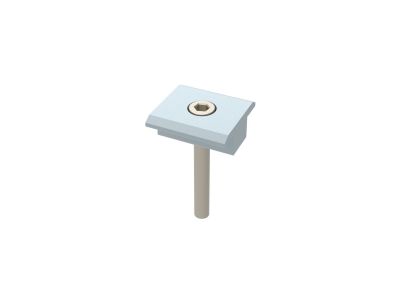

XHF-IC-40, mid clamp
Aluminum 6005-T5 & SUS304
|
C

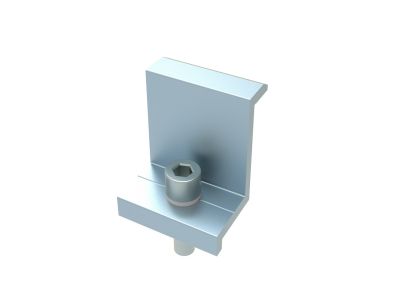

XHF-SC-40, end clamp
Aluminum 6005-T5 & SUS304
|
Parameters
|
|
Application
|
Klip Lok 700 Roof
|
Max Wind Speed
|
60 m/s
|
Snow Load
|
1.4 KN/m2
|
Material
|
Aluminum 6005-T5
|
Warranty
|
10 years warranty; 25 years service life
|
Framed modules can be quickly, safely and cost-effectively installed directly on the roof membrane with our standing seam clamp –
Without roof penetration and with minimal transport costs and storage space requirements.
Direct attachment of the modules to the sheet metal profile with thestanding seam clampand clickable module clamps
Suitable for metal industrial system roofs and residentical areas.No need rail that make installation easier and lower cost.
No additional load on the roof membrane due to thermal expansion with direct mounting
No roof penetration –- no leaks
Wide clamp design ensures the load is distributed across the surface of the sheet metal profile
Railless,so it’s low logistics costs due to fewer components and compact designs
|

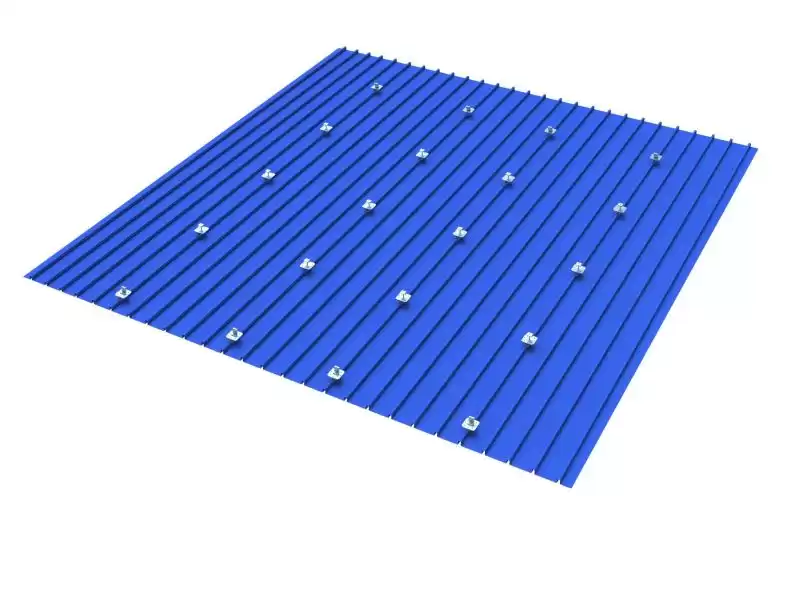

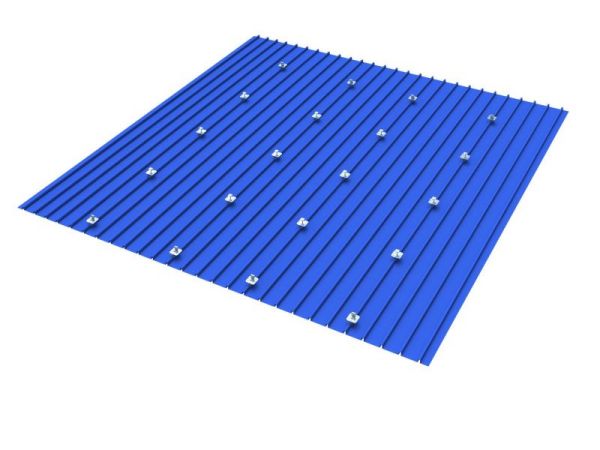

Step 1:
Fix YL-KLK-700 hook on KLIP LOK steel roofing as per technical drawing.
|

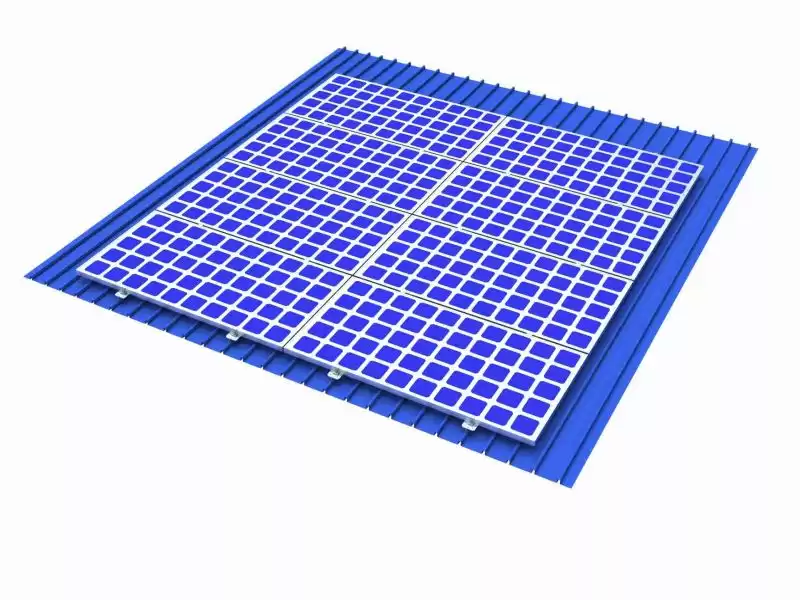

Step 2:
Fix solar panel on clamp hook one by one until finished
|
|

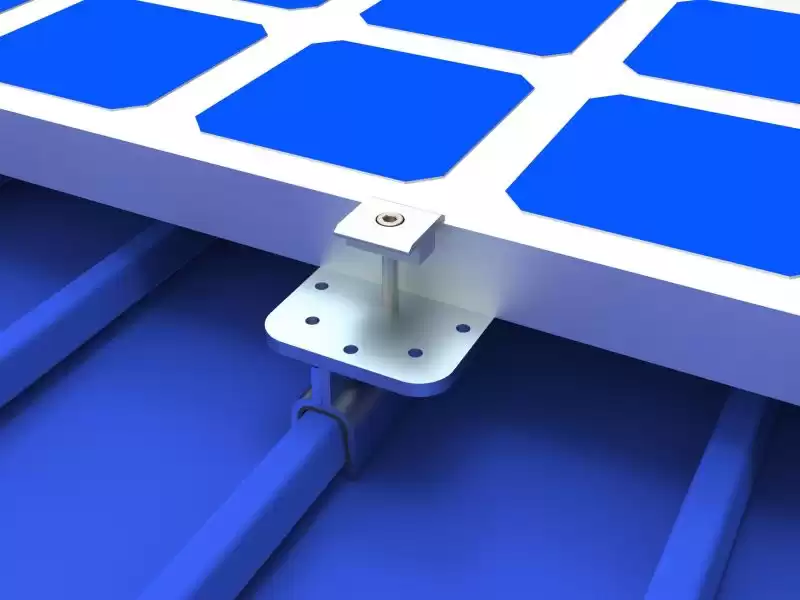

Mid clamp detail installation
|

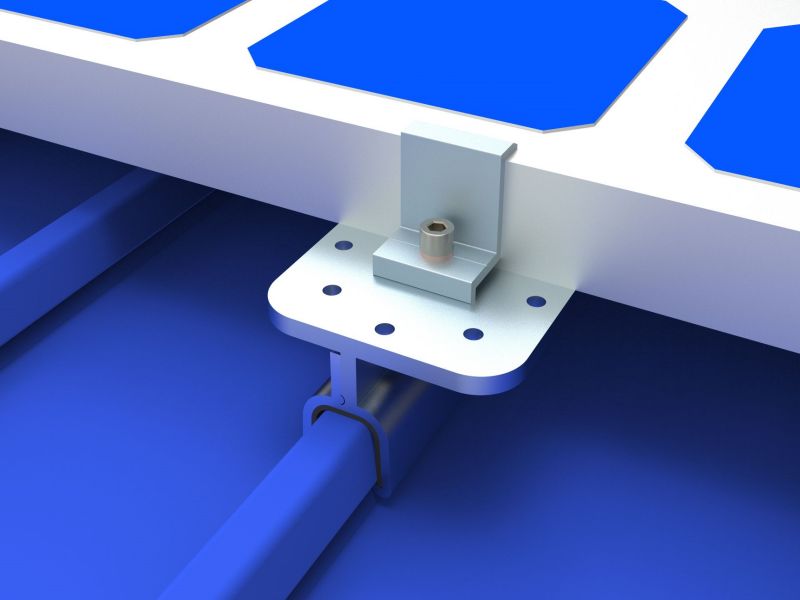

End clamp detail installation
|
Xiamen Xhfsolar Industrial Co., Ltd. ("Xhfsolar") is one of the few large factories in Xiamen, Fujian Province, which was established around 2010. The factory covers an area of about 50,000 square meters, with an annual output of about 8GW.
We're a high tech enterprise specializing in design, development, production and sales for solar mounting. With more than 10 years of industry experience and experienced engineer team, Xhfsolar provides roof mounting solution, ground mounting solution, agricultural mounting solution and solar carport etc.. Besides, we also have advantages in floating mounting, vehicle bracket, aluminum alloy frame, fence. In particular, the annual production capacity of ground screws can reach 800,000pcs.
Our products conform to international standards and pass EN standards. In addition, we have passed strict international quality certification such AS JISC8955, ISO9001 quality management system, AS/NZS 1170, TUV, UL, CE and CPP. Our products are sold to more than 100 countries including Japan, Europe, the United States, North America, and southeast Asia, and have been well received by our customers due to our high quality and low costs.
Price
|
Because we are a factory with a large production scale, our price will be more competitive than other suppliers
|
Quality
|
At present, we have qualified the AS/NZS 1170, TUV, UL, CE, CPP and other international certifications , and we will strictly follow the requirements in the production process. What's more we can provide the production schedule to you so that you can understand the production schedule
|
Market
|
Up to now, we have exported to Africa, the Middle East, Southeast Asia, the United States, Japan and European markets
|
Delivery time
|
7-30 days
|
Payment term
|
Flexible
|
Tech support
|
OEM,OGM
|
After Service
|
10 years warranty+ 25 long service
|
