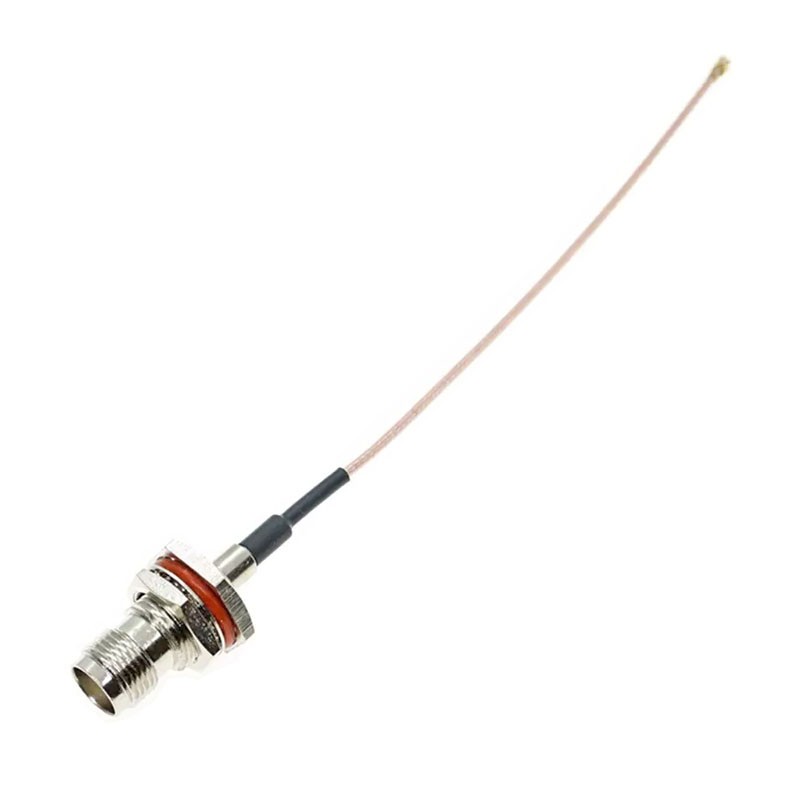

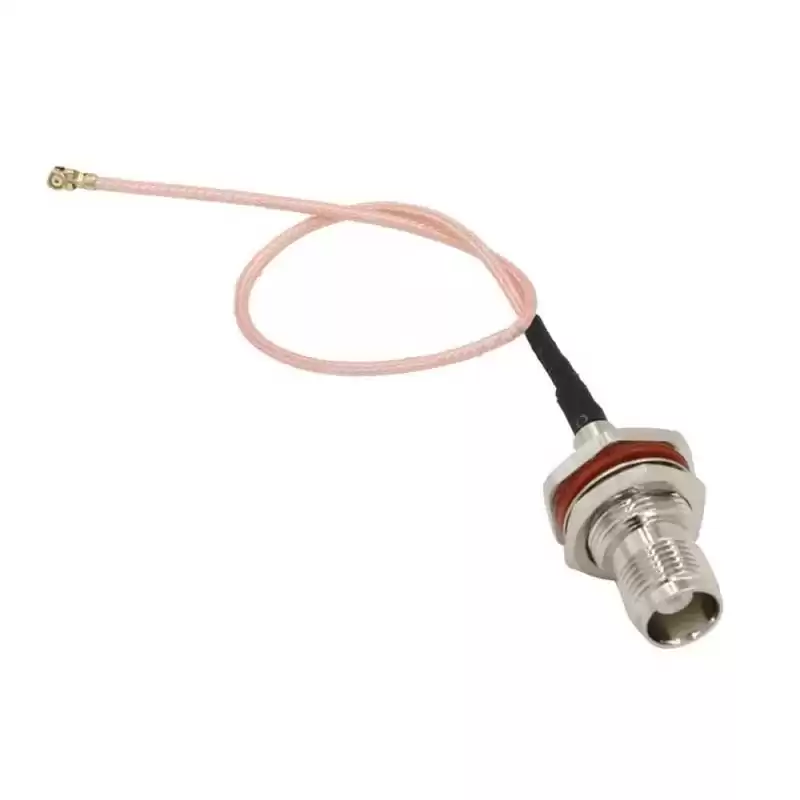

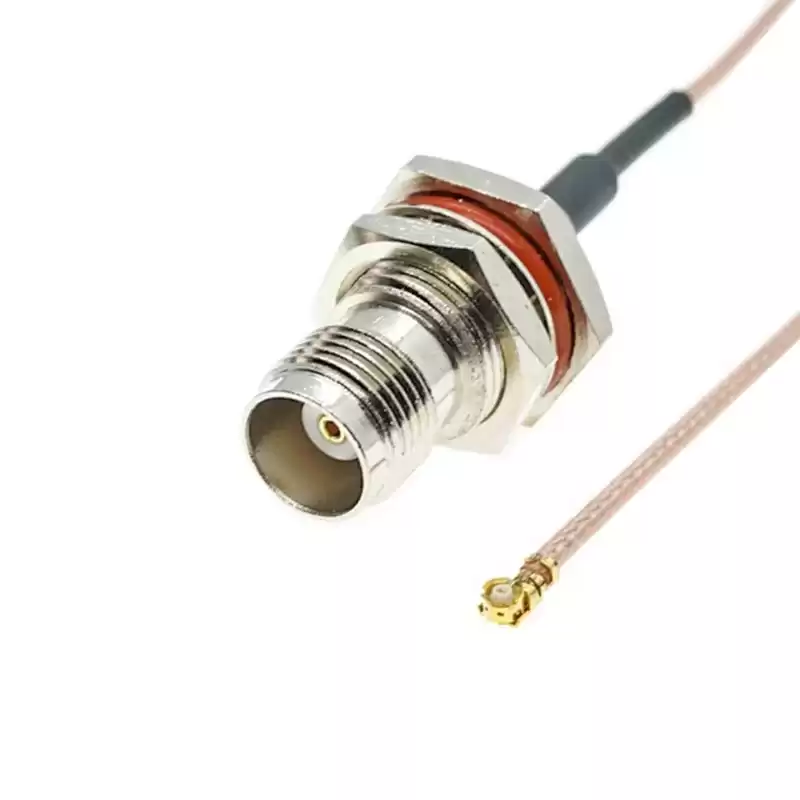

Antenna Extension Pigtail Cable TNC Female Bulkhead to UFL IPEX Connector Cable Assembly with RG178 Coaxial Cable

TNC Cable assembly Features:

  • Can be combined with BNC, FAKRA, MCX, MMCX, N, SMA, SMB or TNC connector;
  • Body Can be right angle or straight connectors;
  • Max Frequency 18 GHz;
  • Cable Can use flexible, formable or semirigid cable.



Antenna Extension Pigtail Cable TNC Female Bulkhead to UFL IPEX Connector Cable Assembly with RG178 Coaxial Cable



The TNC cable assembly can use flexible, formable or semirigid coaxial cable such as LMR195、LMR240、LMR400、RG142、RG174、RG178、RG188、RG213、RG214、RG223、RG316、RG393、RG400、RG401、RG402、RG58、RG8; the body of TNC to UFL cable assembly is right angle or straight connectors which is female to jack, female to plug, male to jack or male to plug gender. This TNC female to UFL plug cable assembly uses a 50ohm straight TNC for connector 1 and a 50ohm straight UFL for connector 2, Cable is a 50ohm flexible RG178.



Specifications

ELECTRICAL DATA
Connector 1 Series TNC
Connector 1 Style Str Female
Cable Type RG178
Connector 2 Series UFL/IPEX
Connector 2 Style Str Plug
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 3GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Automated Test Systems
  • Airborne Systems
  • Phased Arrays
  • EW and Countermeasures




Product Tags TNC Female to UFL Plug Cable Assembly          TNC Female to UFL Cable Assembly          TNC to UFL Cable Assembly          TNC Female Cable Assembly          TNC Female Connector Cable Assembly          TNC to UFL Connector Assembly
