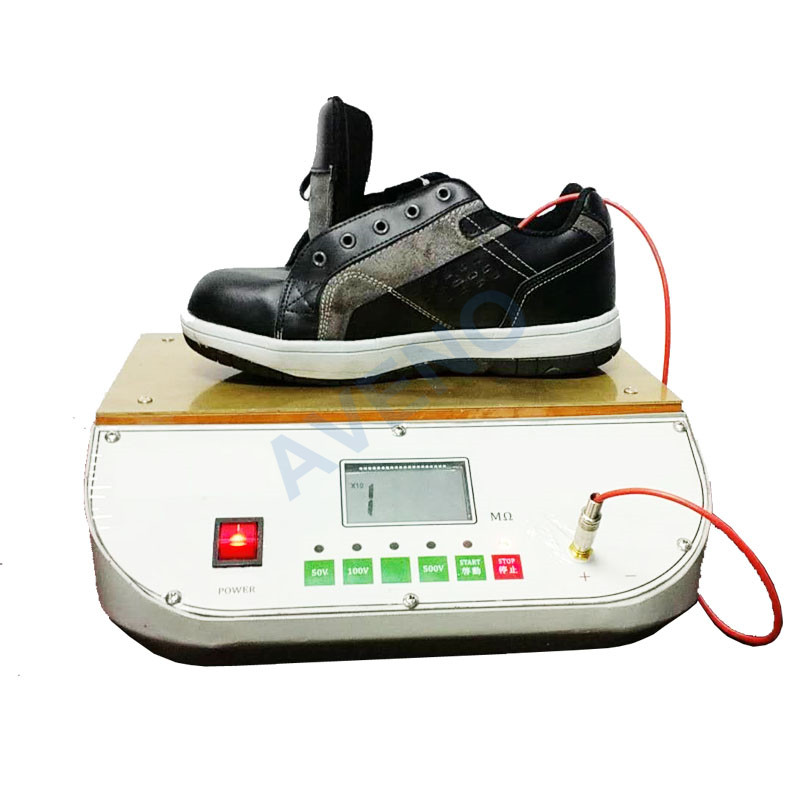

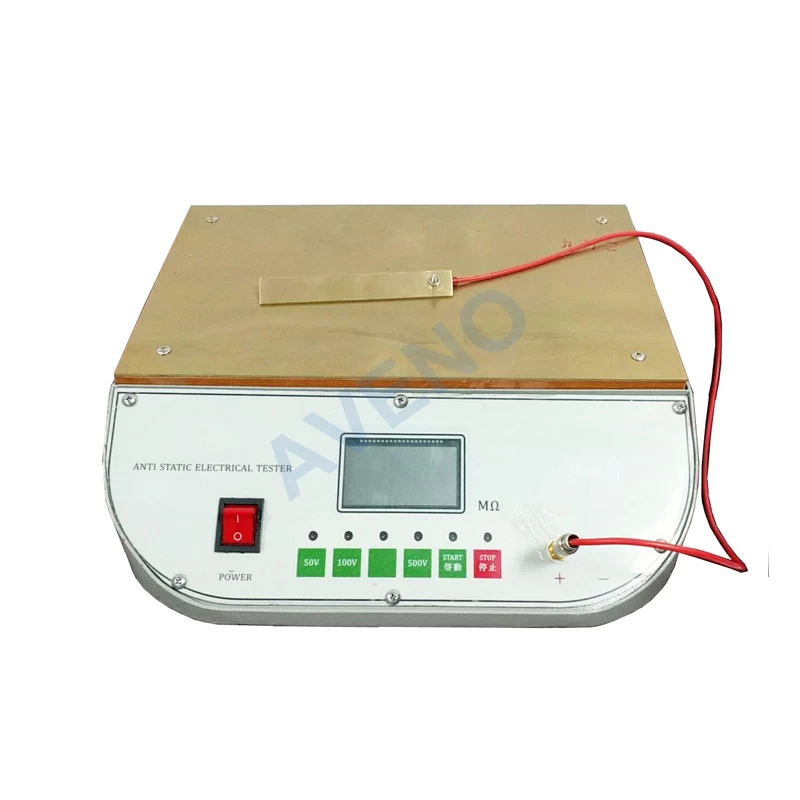

AF08 Anti-static Electrical Resistance Tester
Application Of Anti-static Electrical Resistance Tester
Anti-static Electrical Resistance Testeris used to testing the electrical resistance of the shoes to assess its anti-static characteristics.
Standards Of Anti-static Electrical Resistance Tester
SATRA TM240, EN-344, ANSI Z41, ISO20344, ISO08782, ASTM F2421, F2413
Key Specification Of Anti-static Electrical Resistance Tester
|
Model
|
AF08 Anti-static Electrical Resistance Tester
|
|
Testing voltage
|
DC-100V, 250V, 500V, can be choose
|
|
Resistance test range
|
0.001-1999MΩ
|
|
Conductive copper plate
|
300×400mm
|
|
Testing accuracy
|
±2%, ±5%, ±10% (depends on test range)
|
|
Testing environment
|
Temperature 0-40℃, Humidity 20-90﹪R.H
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimension
|
35×33×22cm
|
|
Weight
|
22kg
|
Accessories Of Anti-static Electrical Resistance Tester
|
Standard
Accessories
|
5mm stainless steel bead
|
4kg
|
|
Copper test line
|
1pc
|
|
Copper board
|
1pc
|
|
Power line
|
1pc
|
