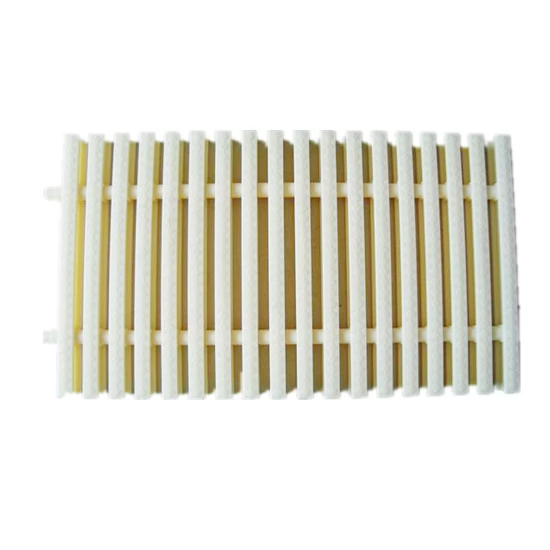

Anti-UV Swimming Pool Plastic Drain Grating

Leiyuan offer swimming pool gutter overflow grating with different specification. The plastic grating is very durable and also resistant to corrosion. The professional plastic drain grating will be satisfied for your needs.


  • MaterialHDPE
  • Press Strength400 KN (41 ton/sqm)
  • Total Volume0.6m3/bundle
  • Size18cm/25cm/30cm
  • ColorWhite

Anti-UV Swimming Pool Plastic Drain Grating Specification:

 Item No.  JES03
 Material  HDPE and flat steel (Outer plastic, inner steel)
 Size  18cm/25cm/30cm
 Color  Beige (Other color can be customize)
 Shape  One faucet or two faucet
 Pressure Strength  400KN (41Ton/Sqm)
 Unit Weight  150g/pc
 Hardness  86
 Water Drainage Rate  95%
 Vertical Circulating Capacity  50cm3/s
 Water Retention  3.5litre/m2
 Elongation  9%
 Tensile Strength  250MPa
 Application  Swimming pool, guttery, ditch, landscape pool, spa, basin, anti-skid slot of drain etc.
 Package  45pcs/bundle, 0.6m3/bundle



Introduction About Overflow Grating:

Overflow Grating uses high density polyethylene (HDPE) and flat steel as raw material. With high strength, corrosion resistance, fast drainage, easy installation feature, plastic overflow grating is the best solution for swimming pool and other grating. If combined with pebbles the plastic drain grating will have beautiful landscape and excellent drainage effect.



Our Swimming pool drain grating confirms to international standards, the particular comb-like structure effeciently slows down the speed of waves. Our professionals make sure of injection molding, which make the products resistant to harsh weather tested of various parameters by our able quality analysts and defective parts are immediately removed.



The most popular size of pool overflow grating, the 300mm wide product can be found in pools all across China. The modular design makes our overflow grating easy to install and maintenance.

Plastic Grating Feature:

  •  Solid and Corrosion Resistant(Outer plastic plus inner steel);Fiberglass plastic grating

  •  UV treated, high tensile strength, excellent quality;

  • Durability and accurate dimensions;

  • Anti-slippery and very comfortable;

  • Available in different sizes and colors;

  •  Attractive, non-slip top surface;
  •  Recoverable, recycle, classical environment protection material;
  •  Anti-slip and wear-resistant for long life;
  •  Environmental friendly, non-pollution, no toxic chemicals;
  •  Easy installation and easy to clean and maintenance convenient;
  •  Water-proof, weather resistance, flexible and strong arcing curves;

  •  Ideal for overflow systems of swimming pool and spa;


Plastic Overflow Grating Main Material:

Pool Plastic Grating

Overflow Grating Construction Section View:

Pool Overflow grating

Project:

Swimming Pool Overflow grating
