Product Details:
| Brand Name |
ABB |
| Model |
AO895 |
| Product ID |
3BSC690087R1 |
| Condition |
New |
| Gross Weight |
2.2 lbs / 35.2 oz / 1kg |
| Packing Size |
7" x 7" x 4" (18 cm x 18 cm x 10 cm) |
| Country of Origin |
Estonia |
| Lead Time |
In Stock |
| Shipping Port |
Xiamen |
| Payment |
T/T |
| Sales Price |
Inquiry |
| Color |
Depends on material |
| Warranty |
12 months |
| Lead time |
5-8 work days |
| Courier partners |
DHL, UPS, TNT, FedEx and EMS |
Additional Information:
| Resolution |
12 bit |
| Isolation |
Groupwise isolated from ground |
| Under/over range |
2.5 / 22.4mA |
| Output load |
<725 ohms at 20 mA, no over-range
<625 ohms at up to 22 mA |
| Error |
Typ. 0.05%, Max. 0.1% at 650 ohms |
| Temperature drift |
Typ. 50 ppm/°C, Max. 100 ppm/°C |
| Rise Time |
30 ms (10% to 90%) |
| Current limiting |
Short circuit proof current limited output |
| Rated insulation voltage |
50 V |
| Dielectric test voltage |
500 V a.c. |
| Power dissipation |
4.25 W |
| Current consumption +5 V Modulebus |
Typ. 130 mA |
| Current consumption +24 V external |
Typ. 250 mA, Max. <330 mA |
| Front LED’s |
F(ault), R(un), W(arning), O(SP), Tx (HART communiation) |
| Supervision |
Internal process supply, Open wire if > 1 mA is set |
| CE mark |
Yes |
| Electrical safety |
IEC 61131-2, cFMus |
| Hazardous Location |
ATEX/IECEx Zone 2 with interface to Zone 0, cFMus C1, Div 2/Zone 2 with interface to C1, C2, C3 Div 1/Zone 0 |
| Marine certification |
- |
| Protection rating |
IP20 according to IEC 60529 |
| Corrosive atmosphere ISA-S71.04 |
G3 |
| Climatic operating conditions |
0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2 |
| Pollution degree |
Degree 2, IEC 60664-1 |
| Mechanical operating conditions |
IEC/EN 61131-2 |
| EMC |
EN 61000-6-4 and EN 61000-6-2 |
| Overvoltage categories |
IEC/EN 60664-1, EN 50178 |
| Equipment class |
Class I according to IEC 61140; (earth protected) |
| Max ambient temperature |
55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F) |
| RoHS compliance |
DIRECTIVE/2011/65/EU (EN 50581:2012) |
| WEEE compliance |
DIRECTIVE/2012/19/EU |

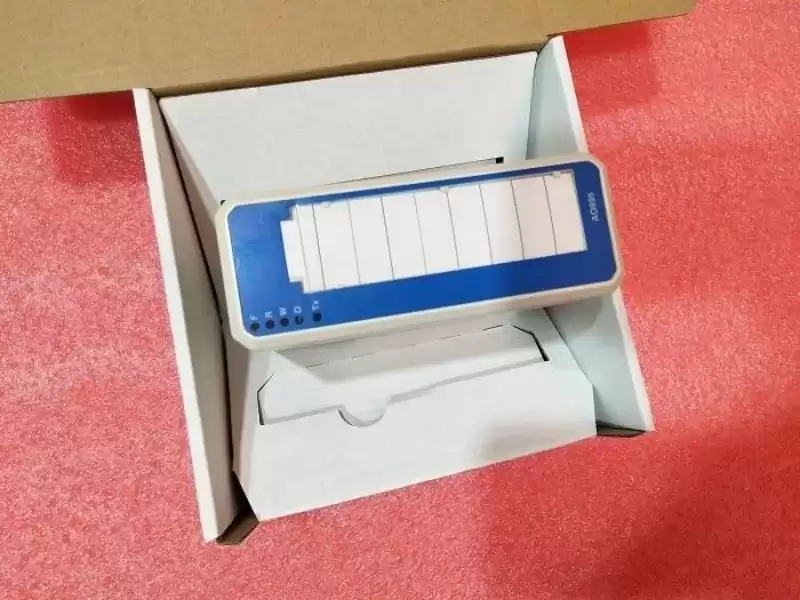

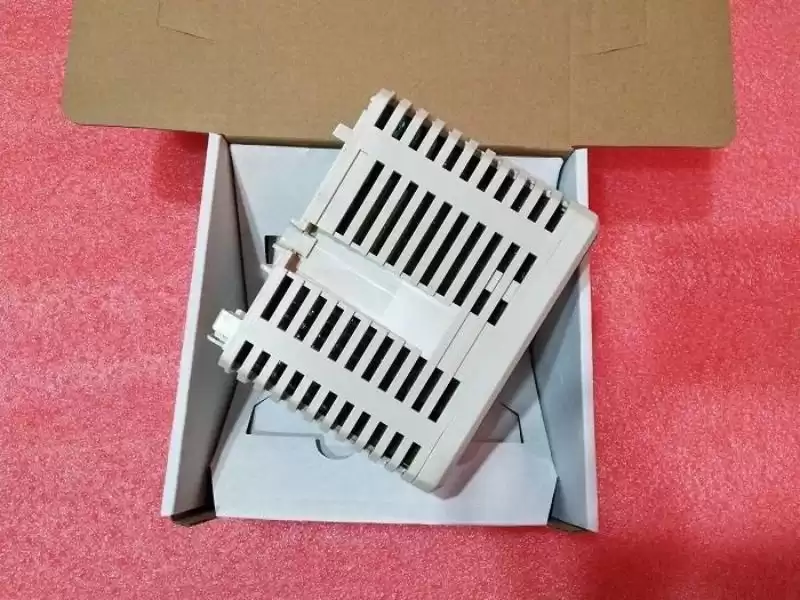

The AO895 Analog Output Module has 8 channels. The module includes Intrinsic Safety protection components and HART interface on each channel for connection to process equipment in hazardous areas without the need for additional external devices.
Each channel can drive up to 20 mA loop current into a field load such as an Ex certified current-to-pressure converter and is limited to 22 mA in overload conditions. All eight channels are isolated from the ModuleBus and power supply in one group. Power to the output stages is converted from the 24 V on the power supply connections.
Features and benefits
• 8 channels of 4...20 mA outputs.
• HART communication.
• 1 group of 8 channels isolated from ground.
• Power to drive Ex certified I/P actuators.
