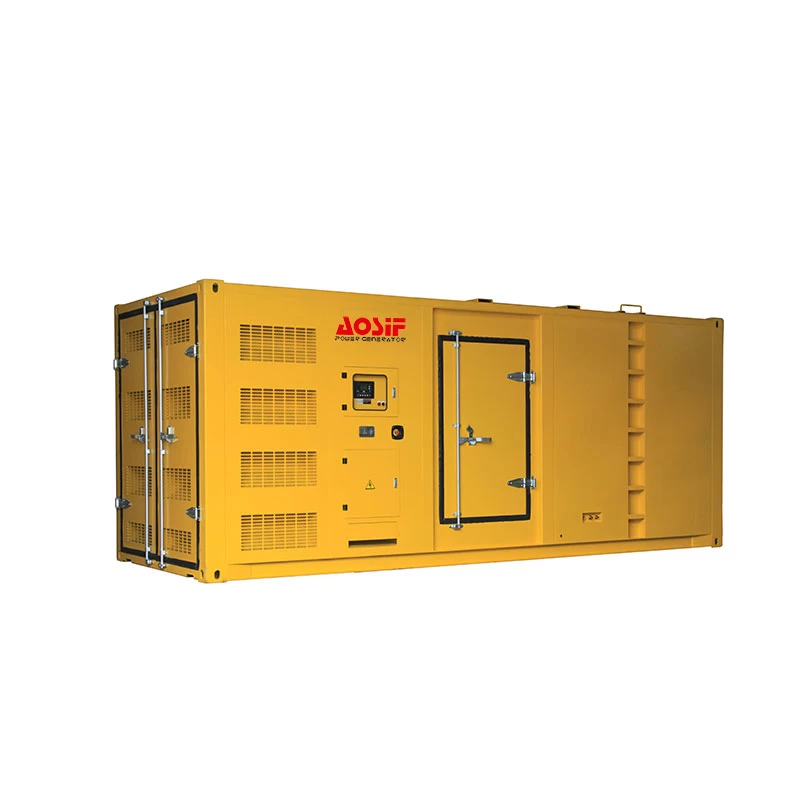

800KW 1000KVA Container Type Soundproof Canopy Diesel Generator Set
Diesel Engine Features:
(1) Adopts engine brand include: Cummins, Deutz, Doosan, Volvo, MAN, etc.
(2)Mounted on heavy-duty frame steel skid;
(3)Built-in Dumper for Anti-vibration;
(4)Diesel Engine has the advantages of compact size, low oil consumption and high efficiency;
(5)Heavy load endurable, Four Strokes, water-cooled, industrial engine;
(6)Outstanding transient response capacity and it is easy in operation, installation and maintenance;
(7)Advanced and reliable control module, which is auto started and can be remotely controlled by PC or Cell phone;
(8)Full range protect function and alarm shutdown feature;
Alternators Features:
(1) Adopts alternator brand include: Leroy somer, Stamford, Marathon, etc.
(2)Self-exciting,Brushless,4 Poles, Rotation Magnet;
(3)IP23 enclosure is standard for all industrial alternator;
(4)The industrial system is Class H;
(5)Simple installation and maintenance, with easy access to terminals and rotating diadems;
(6)Wide range of flange adopters and single bearing disc coupling;
(7)Standard 2/3 pitch windings;
(8)AVR auto voltage regulator, auto exciter ,auto adjustment
Canopy Features:
(1)Good Performance in Outdoor Environment:
a) Adapt to any harsh environment;
b) Large fuel tank capacity;
c).Easy in Transportation;
d) Portable Trailer for Generator is optional;
(2)High Reliability:
a) High efficiency cooling system;
b) .Multi-step shockproof device;
c) .Anti-corrosion resistance surface;
d).Anti-leakage structure for fuel tank;
(3)Excellent Noise Attenuation Device:
a) New and efficient sound-absorbing material;
b) Special muffler with excellent performance;
c) Special wind dust structure;
d) Super Silent Generator's Noise Level ≤ 70-75dB(A) at the distance of 7meters;
(4)High Safety: Comply with GB/T 2820-97 standard; Comply with CE safety standard; Self-protection function.
Quality control of silent generator:
|
1)All the silent power generator sets with CE & ISO certification are manufactured in accordance with ISO9001:2000, ISO14000 and other common global standards.
|
|
2)Each power soundproof generator set undergoes a 1 hours factory load test at 0%, 25%, 50%, 75%, 100% and 110% duty
|
|
3)all protection devices and control functions are simulated and checked as part of the factory testing regime. A test certificate can be provided upon request.
|
Warranty of silent generator set
1)A guarantee of 1000 hours or 12 months from the date of commissioning or 18 months from shipping, whichever occurs first, is provide.
2)Warranty will be invalid if customer disobeys the requirements of the operation and maintenance in Generator Set Technical Manual.
Similar product
Cummins electric Generator, Perkins generator, Deutz diesel generator, Doosan generator set, Volvo diesel generator set,
Chinese power generator, and silent generator, movable generator etc, power range from 9kva to 2000kva.
|
Engine
|
Alternator
|
Power range
|
Voltage
|
Frequency
|
Speed
|
|
Cummins
|
Optional
|
20-2500KVA
|
208-480
|
50/60HZ
|
1500/1800RPM
|
|
Perkins
|
Optional
|
9-2500KVA
|
208-480
|
50/60HZ
|
1500/1800RPM
|
|
Doosan
|
Optional
|
8-900KVA
|
208-480
|
50/60HZ
|
1500/1800RPM
|
|
SDEC
|
Optional
|
50-900KVA
|
208-480
|
50/60HZ
|
1500/1800RPM
|
|
SME
|
Optional
|
650-2200KVA
|
208-480
|
50/60HZ
|
1500/1800RPM
|
|
Deutz
|
Optional
|
20KV-750KVA
|
208-480
|
50/60HZ
|
1500/1800RPM
|
|
Wandi
|
Optional
|
75-1500KVA
|
208-480
|
50/60HZ
|
1500/1800RPM
|
|
Others
|
Optional
|
5-5000KVA
|
208-480
|
50/60HZ
|
1500/1800RPM
|
Why choose AOSIF for your power generation supplier
1. with more than 19 years experience,and clients in more than 100 countries,AOSIF is the rising star in generators today.
2. Our company has advance testing center and the most advanced testing facilities.we test each Genet before delivery and package items carefully to ensure our clients to receive products in their best condition.
3. AOSIF productions are submit to IS08525 GB/T2820-97,and CE certification and quality certified by ISO9001/14001.management system to guarantee high quality products and service.
4. 100% factory outlets:manufacture supply directly,reduce business links.real high performance price.we are the approval OEM partner of Cummins, Perkins.Doosan, LeroySomer,Stadform which can promise our clients high quality at best prise.
5. We stand behind our products with friendly,expert support.our department will be full-responsibility and fast support to every of you technical issues.and provide solution to repair or replace your generator.
Please contact us,our specialist are willing to discuss the power and performance needs to ensure you select the best unit for your needs
If you are interest in us,please contact us freely! welcome to xiamen,welcome to our AOSIF！！
