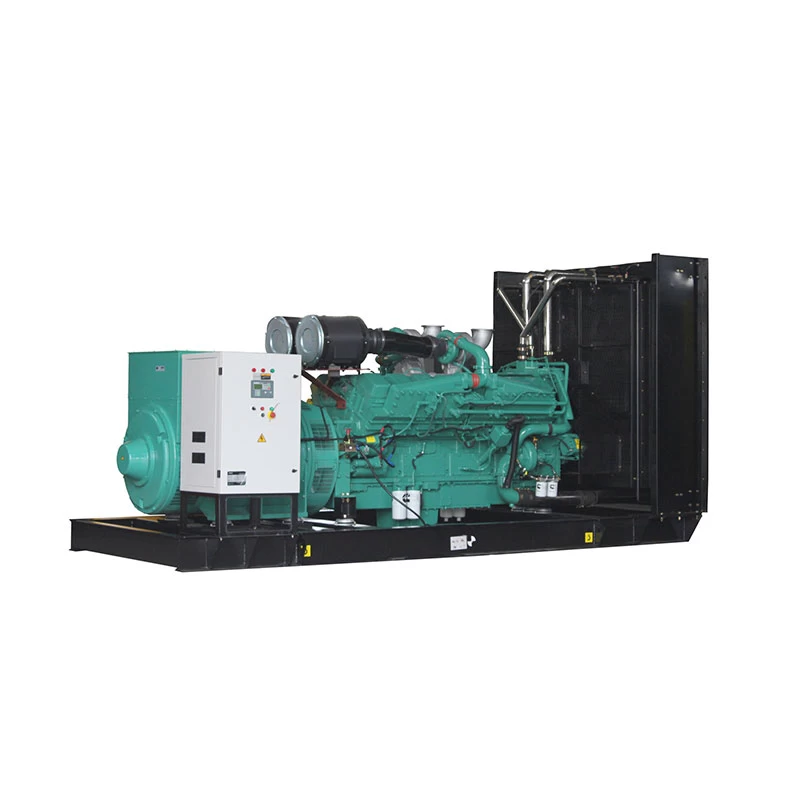

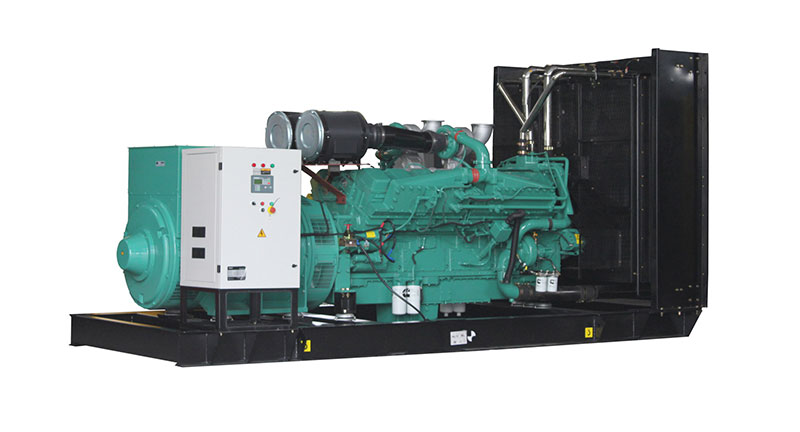

AOSIF 1200KW 1500KVA Cummins Series Diesel Generators set
Engine: Cummins engine
Alternator: Leroy somer,stamford,Marathon
Power:1100KW/1375KVA
Delivery time:4 to 6 weeks
Warranty:1 year or 1000hours whichever comes first
genset Date:
|
Genset Model
|
AC1650
|
|
Prime Power(50HZ)
|
1200KW /1500KVA
|
|
Standby Power(50HZ)
|
1320KW /1650KVA
|
|
Frequency/Speed
|
50Hz/1500rpm
|
|
Standard Voltage
|
220V/380V
|
|
Phases
|
Three phases, four wires
|
|
Manufacturer
|
Xiamen AOSIF Engineering LTD.
|
Engine Data:
|
Manufacturer
|
Chongqing Cummins Engine Co. Ltd.
|
|
Model
|
KTA50-GS8
|
|
Engine speed
|
1500rpm
|
|
Engine power
|
|
|
--------------------Prime power
|
1287kw /1725HP
|
|
--------------------Standby power
|
1429kw /1915HP
|
|
Type
|
4 cycle, 60°Vee, 16-cylinder
|
|
Aspiration
|
Turbocharged and aftercooled
|
|
Bore * Stroke
|
159*159 mm
|
|
Displacement
|
50.3 L
|
|
Compression ratio
|
14.9:1
|
|
Idle speed
|
725 – 775 r/min
|
|
Brake mean effective pressure under prime power
|
2062kpa
|
|
Piston speed
|
7.9 m/s
|
|
Friction horsepower
|
116kw(155BHP)
|
Alternator Data:
|
Manufacturer
|
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
|
|
Model
|
LSA50.2L8
|
|
Frequency
|
50HZ
|
|
Voltage
|
400V
|
|
Output power-----------Continuous duty/40℃
|
1500kVA / 1200kW
|
|
-----------Stand-by/27℃
|
1650kVA / 1320kW
|
|
Phase
|
3 ph.
|
|
Power factor
|
P.F.=0.8
|
|
Insulation class
|
H
|
|
Winding pitch
|
2/3
|
|
Number of wires
|
6
|
|
Protection
|
IP23
|
|
Altitude
|
≤ 1000 m
|
|
Overspeed
|
2250 min-1
|
|
Excitation system
|
AREP
|
|
AVR type
|
R450
|
|
Voltage regulation
|
±0.5%
|
|
Short-circuit current
|
300% (3IN) 10s
|
|
Total harmonics (THD)
|
no load < 3.5%
|
|
Wave form : NEMA = TIF
|
< 50
|
|
Air follow
|
1.1 m3/s
|
|
Relative humidity
|
≤ 95%
|
|
Bearing
|
Single
|
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame .
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
AOSIF main products:
Diesel generator set: power by Perkins, Cummins, Doosan,Deutz,China Googol,Wandi.
Natural gas generator set: power by Perkins, revised Cummins.

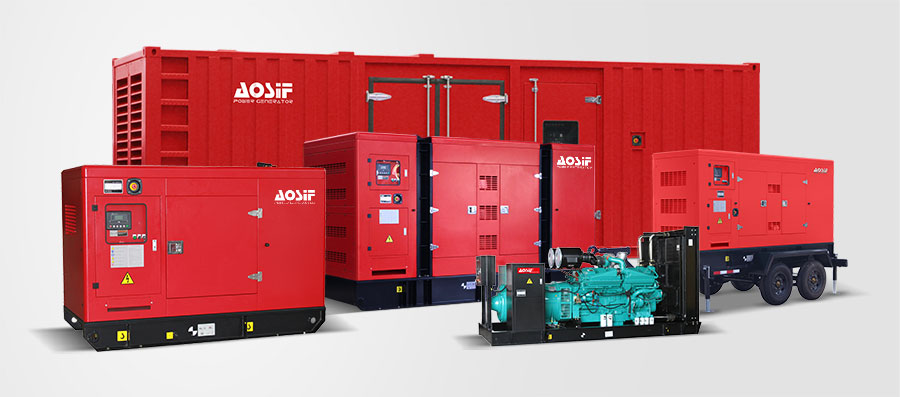

Generator type: open generator, silent generator, mobile generator.
Packaging & Shipping
Packed with wrapped film as standard,plywooden case for options
When we finished the test of diesel generator,our transporation department then will take charge of sending the generator to the container at port of loading,with help of our excellent forwarder,we send our generators to our customers successfully without any damage
Our Services
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from ex-factory date.
During the guarantee period, we will provide the free easy-damageable
spare parts of diesel engine caused by our quality of production or raw material.
After expiration, we provides cost spare parts maintenance of gensets
OEM Service
We can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customers requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to
customer requirement.
4. Full warranty cover to support customers.
FAQ
FAQ(Frequently Asked Question):
1.What is your warranty period?
Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.
2.Does your generator have global warranty?
Yes, most of our products like Cummins, Perkins, Doosan power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
3.Can you accept OEM?
Yes, we can accept OEM.
4.What is your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
5.What is your delivery time?
Our normal delivery time is 2 to 5 weeks. But if your order is some special engine and alternator, then the delivery time is longer.
AOSIF engineering LTD supplies and exports diesel generators, including Cummins generators, Perkins generators, Doosan generator,and diesel generator types. Everything from a 20 kw generator to a 2500 kw diesel generator and more found here.with more than 19 years experiences,we,AOSIF is still trying our best to help everyone which need power generator.
