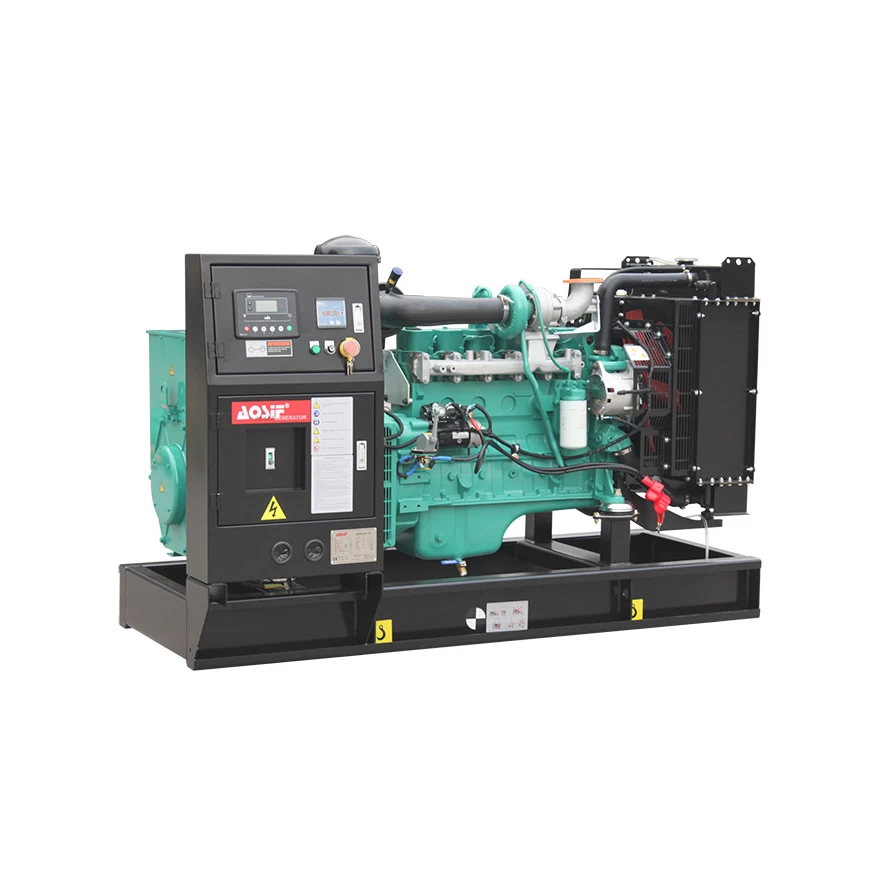

AOSIF 80KW 100kva Cummins diesel generator set
General feature:
♦ Asse
mbled by Cummins diesel engine and Leroy Somer alternator.
♦ Three filters as standard, fuel and water separator as optional.
♦ Radiator and fan with safety guard.
♦ Single bearing alternator IP 23, Insulation Class H.
♦ Heavy duty steel as base frame and 8hrs operation base fuel tank.
♦ Automatic control panel and 3 poles circuit breaker, internal cable.
♦ 12V battery, battery wires.
♦ Battery charger and float battery charger as standard supply scope.
♦ Optional soundproof canopy, ATS, synchronization panel, movable trailers.
Genset Open Version Genset Soundproof Version

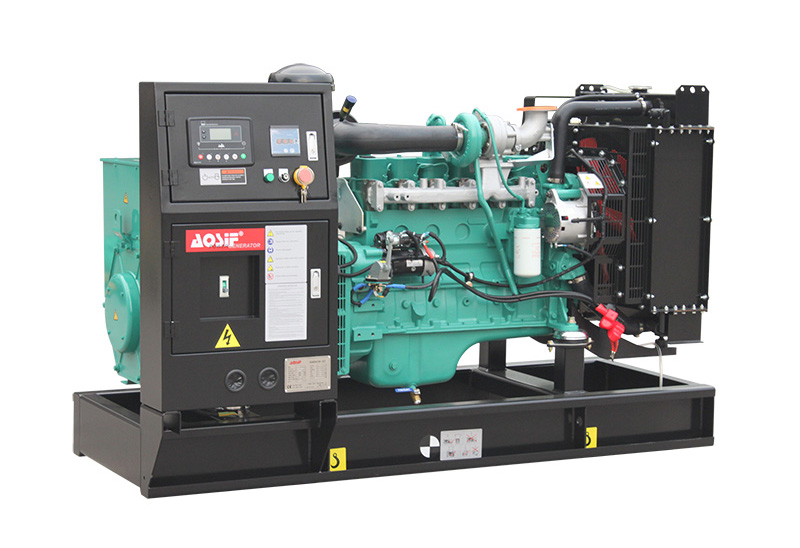

Open Type (Standard Configuration)
|
Soundproof Type
|
Overall Size: 2084×785 ×1365mm(L*W*H)
|
Overall size: 2950× 1160×1930mm(L*W*H)
|
Weight: 1088kg
|
Weight: 1618kg
|
Genset Main Technical Data:
|
Genset Model
|
AC110
|
|
Prime Power
|
80KW / 100KVA
|
|
Standby Power
|
88KW / 110KVA
|
|
Frequency/Speed
|
50Hz/1500rpm
|
|
Standard Voltage
|
230V/400V
|
|
Phases
|
Three phases, four wires
|
|
Manufacturer
|
Xiamen AOSIF Engineering LTD.
|
Cummins Engine Data:
|
Manufacturer
|
Dongfeng Cummins Engine Co., Ltd.
|
|
Model
|
6BT5.9-G2
|
|
Engine speed
|
1500rpm
|
|
Engine power
|
|
|
----------------------------Standby power
|
92kw / 123HP
|
|
----------------------Base output power
|
86kw / 115HP
|
|
Aspiration
|
Turbochanged
|
|
Cylinder quantity
|
6
|
|
Bore * Stroke
|
102*120mm
|
|
Displacement
|
5.9L
|
|
Fuel system
|
BYC A/Electronic Governor
|
|
Speed-droop
|
≤5%
|
|
Low idle
|
750-950 rpm
|
|
Piston speed
|
6.0 m/s
|
|
Friction energy output
|
12.7 kw
|
Generator Detail
Our Sales Promises
★ AOSIF Engineering provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment.
★ Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours, whichever comes first.
★ Service and parts are available from XIAMEN AOSIF Engineering Ltd. or distributors in your location.
★ All the products from Xiamen AOSIF Engineering Ltd. is CE marked.
