AOSIF Cummins 6C Series Prime Power 160KW 200KVA Cummins Diesel Generators

AOSIF 50HZ 60HZ standby power range 176KW 220KVA Cummins diesel generator in China.

  • controllerDeepsea 6120
  • Frequency50HZ
  • AlternatorLeroy somer /Stamford/Marathon/ AOSIF
  • EngineCummins
  • Prime Power160KW/200KVA
Facebook Twitter Pinterest LinkedIn 分享
AOSIF 160KW 200kva Cummins diesel generator set


♦ Assembled by Cummins diesel engine and Leroy Somer alternator.
         ♦ Three filters as standard, fuel and water separator as optional.

♦ Radiator and fan with safety guard.

♦ Single bearing alternator IP 23, Insulation Class H.

♦ Heavy duty steel as base frame and 8hrs operation base fuel tank.
♦ Automatic control panel and 3 poles circuit breaker, internal cable.

♦ 12V battery, battery wires.
         ♦ Battery charger and float battery charger as standard supply scope.

♦ Optional soundproof canopy, ATS, synchronization panel, movable trailers.

    Genset Open Version                                                                               Genset Soundproof Version

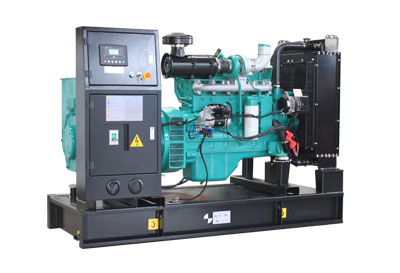

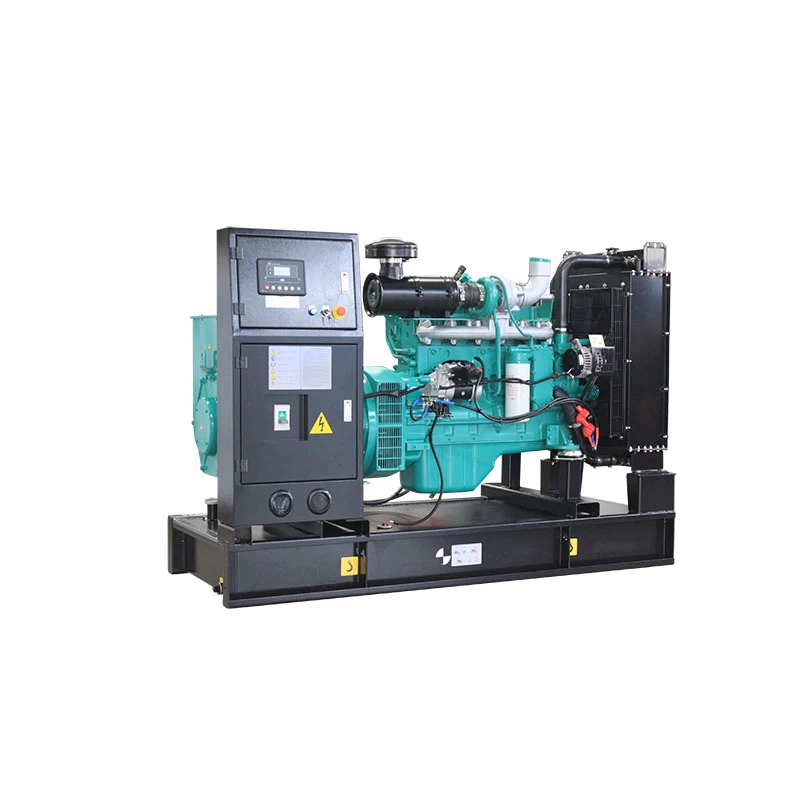

Open Type (Standard Configuration)
 Soundproof  Type
Overall Size: 2460×945 ×1560mm(L*W*H)
 Overall size: 3600× 1200×1900mm(L*W*H)
Weight: 1779kg
 Weight: 2380kg


General feature: 50HZ/1500rpm

 Genset  AC165-AC206
 Voltage  220V-480V
 Engine  6CTAA8.3-G2
 Prime Power/Standby Power  160KW/176KW
 Alternator  Leroy somer,Stamford,Marathon,Aosif
 Controller  Deepsea,Comap
 Circuit Breaker  ABB/SCHNEIDER
 Type  Open/Silent
 Fuel Tank  Base Tank,External Daily Fuel Tank
 Optional supporting products  Moveable/Trailer Type Diesel Generator /Synchronization System   Automatic Transfer Switch /Dummy Load  Day Tank

Generator Detail


Our Sales Promises

★ AOSIF Engineering provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment.
★ Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours, whichever comes first.
★ Service and parts are available from XIAMEN AOSIF Engineering Ltd. or distributors in your location.
★ All the products from Xiamen AOSIF Engineering Ltd. is CE marked.
