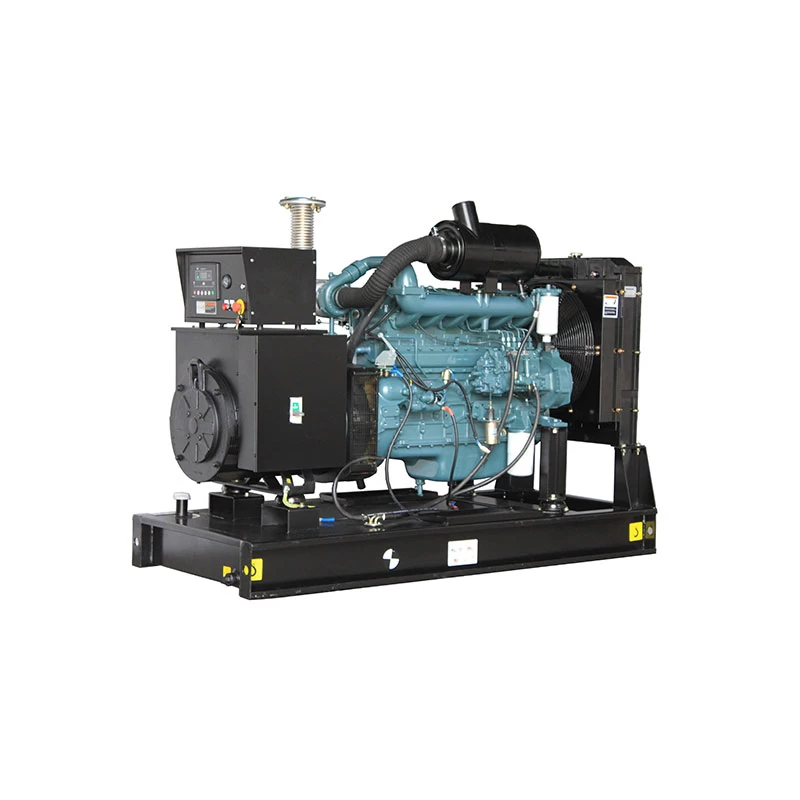

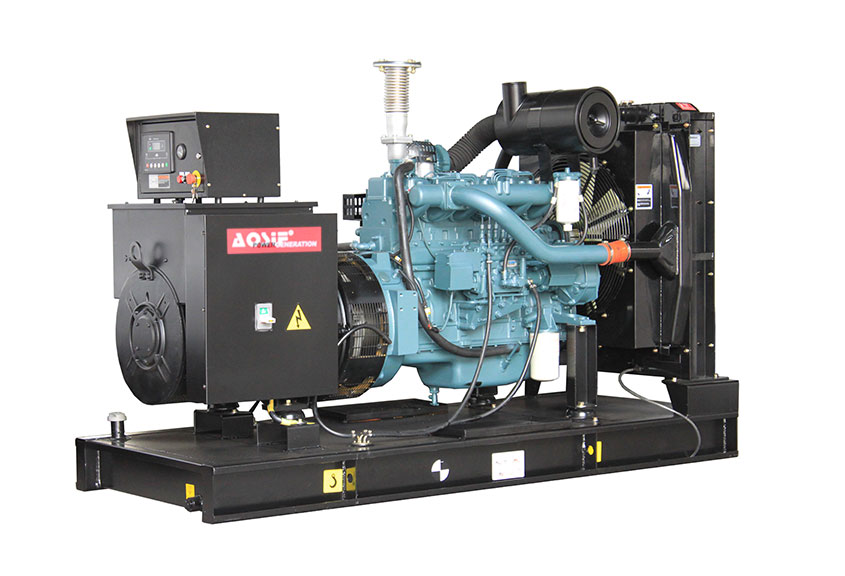

AOSIF Standby 20KW 25kva Doosan Diesel Generator Set
♦ Asse
mbled by Doosan diesel engine and Leroy Somer alternator.
♦ Three filters as standard, fuel and water separator as optional.
♦ Radiator and fan with safety guard.
♦ Single bearing alternator IP 23, Insulation Class H.
♦ Heavy duty steel as base frame and 8hrs operation base fuel tank.
♦ Automatic control panel and 3 poles circuit breaker, internal cable.
♦ 12V battery, battery wires.
♦ Battery charger and float battery charger as standard supply scope.
♦ Optional soundproof canopy, ATS, synchronization panel, movable trailers.
Genset Open Version Genset Soundproof Version
Open Type (Standard Configuration)
|
Soundproof Type
|
Overall Size: 1450×630 ×1120mm(L*W*H)
|
Overall size: 1500× 780×1320mm(L*W*H)
|
Weight: 772kg
|
Weight: 1000kg
|
General feature: 60HZ/1800rpm
|
Genset Model
|
AD28
|
|
Prime Power
|
20KW / 25KVA
|
|
Standby Power
|
22KW / 28KVA
|
|
Frequency/Speed
|
50Hz/1500rpm
|
|
Standard Voltage
|
220/400V
|
|
Available Voltage
|
230V/430V
|
|
Phases
|
Three phases, four wires
|
|
Manufacturer
|
Xiamen AOSIF Engineering LTD.
|
Doosan Engine Data:
|
Manufacturer
|
Doosan Infracore Co.,Ltd.
|
|
Model
|
SP224TA
|
|
Engine speed
|
1500rpm
|
|
Engine type
|
n-line 4 cycle, water cooled; Turbo charged & intercooled (air to air)
|
|
Cylinder quantity
|
4 line
|
|
Fuel Consumption
|
24L/H
|
|
Displacement
|
2.4
|

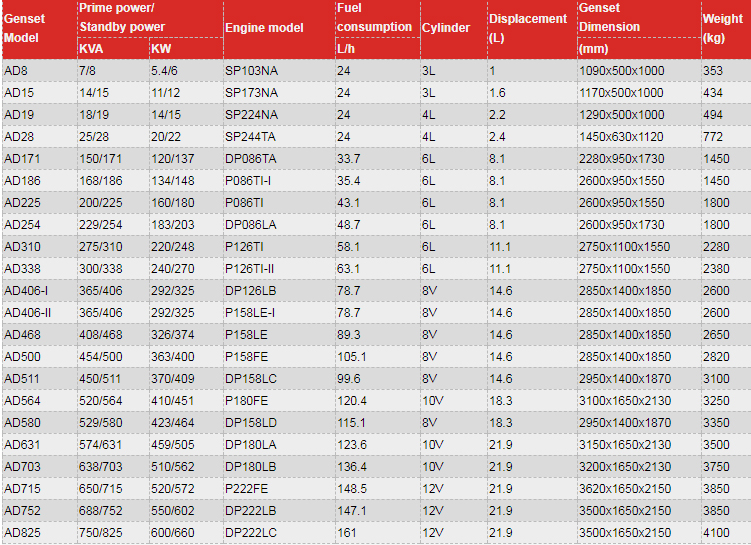

Doosan Generator Technical Data
Why choose AOSIF for your power generation supplier
1. with more than 19 years experience,and clients in more than 100 countries,AOSIF is the rising star in generators today.
2. Our company has advance testing center and the most advanced testing facilities.we test each Genet before delivery and package items carefully to ensure our clients to receive products in their best condition.
3. AOSIF productions are submit to IS08525 GB/T2820-97,and CE certification and quality certified by ISO9001/14001.management system to guarantee high quality products and service.
4. 100% factory outlets:manufacture supply directly,reduce business links.real high performance price.we are the approval OEM partner of Cummins, Perkins.Doosan, Leroy somer,stadform which can promise our clients high quality at best prise.
5. We stand behind our products with friendly,expert support.our department will be full-responsibility and fast support to every of you technical issues.and provide solution to repair or replace your generator.
Please contact us,our specialist are willing to discuss the power and performance needs to ensure you select the best unit for your needs
