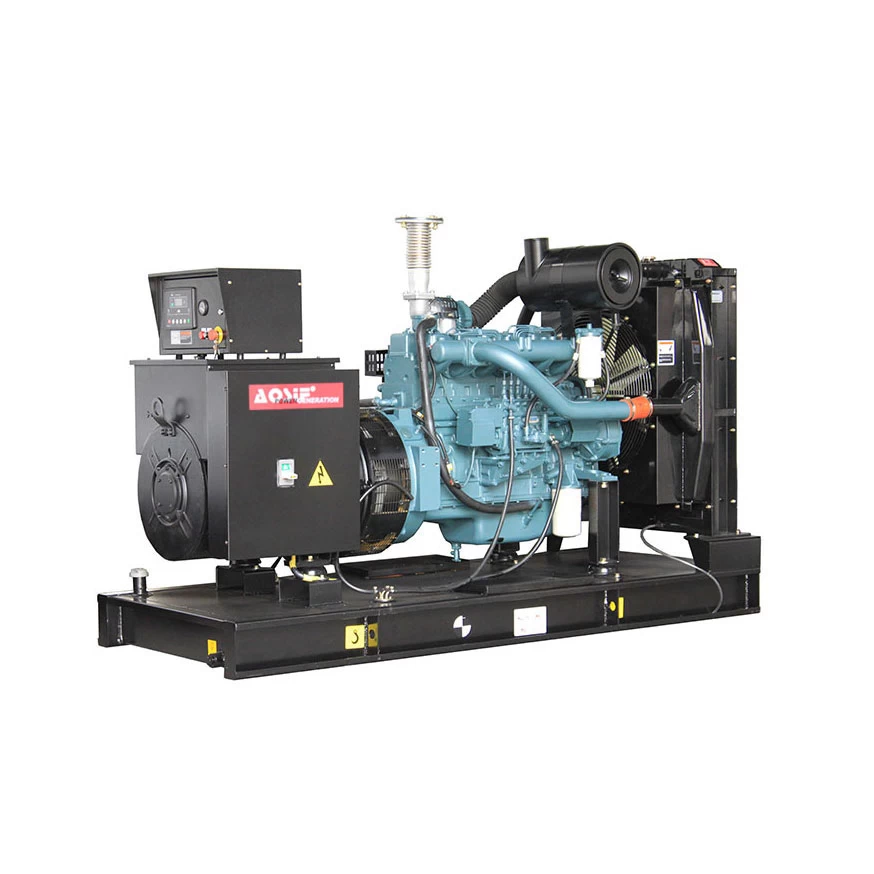

AOSIF Standby 200KW 250kva Doosan Diesel Generator Set
♦ Asse
mbled by Doosan diesel engine and Leroy Somer alternator.
♦ Three filters as standard, fuel and water separator as optional.
♦ Radiator and fan with safety guard.
♦ Single bearing alternator IP 23, Insulation Class H.
♦ Heavy duty steel as base frame and 8hrs operation base fuel tank.
♦ Automatic control panel and 3 poles circuit breaker, internal cable.
♦ 12V battery, battery wires.
♦ Battery charger and float battery charger as standard supply scope.
♦ Optional soundproof canopy, ATS, synchronization panel, movable trailers.
Genset Open Version Genset Soundproof Version
Open Type (Standard Configuration)
|
Soundproof Type
|
Overall Size: 2563×945 ×1560mm(L*W*H)
|
Overall size: 3600× 1200×1950mm(L*W*H)
|
Weight: 1900kg
|
Weight: 2500kg
|
General feature: 60HZ/1800rpm
|
Genset Model
|
AD250
|
|
Prime Power
|
183KW / 229KVA
|
|
Standby Power
|
200KW / 250KVA
|
|
Frequency/Speed
|
60Hz/1800rpm
|
|
Standard Voltage
|
127V/220V
|
|
Available Voltage
|
220V/380V
|
|
Phases
|
Three phases, four wires
|
|
Manufacturer
|
Xiamen AOSIF Engineering LTD.
|
Doosan Engine Data:
|
Manufacturer
|
Doosan Infracore Co.,Ltd.
|
|
Model
|
P086TI
|
|
Engine speed
|
1800rpm
|
|
Engine power
|
|
|
----------------------------Standby power
|
223kw / 303kva
|
|
----------------------Base output power
|
205kw / 2798kva
|
|
-----------------------Continuous power
|
186kw / 253kva
|
|
Engine type
|
n-line 4 cycle, water cooled; Turbo charged & intercooled (air to air)
|
|
Cylinder quantity
|
6 line
|
|
Bore * Stroke
|
111(4.37) x 139(5.47) mm(in.)
|
|
Displacement
|
8.071(492.49) lit.(in3)
|
Doosan Generator Technical Data
Our Sales Promises
★ AOSIF Engineering provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment.
★ Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours, whichever comes first.
★ Service and parts are available from XIAMEN AOSIF Engineering Ltd. or distributors in your location.
★ All the products from Xiamen AOSIF Engineering Ltd. is CE marked.
