AOSIF 1000KW 1250kva Cummins diesel generator set
General feature:
♦ Asse
mbled by Cummins diesel engine and Leroy Somer alternator.
♦ Three filters as standard, fuel and water separator as optional.
♦ Radiator and fan with safety guard.
♦ Single bearing alternator IP 23, Insulation Class H.
♦ Heavy duty steel as base frame and 8hrs operation base fuel tank.
♦ Automatic control panel and 3 poles circuit breaker, internal cable.
♦ 24V battery, battery wires.
♦ Battery charger and float battery charger as standard supply scope.
♦ Optional soundproof canopy, ATS, synchronization panel, movable trailers.
Genset Open Version Genset Soundproof Version

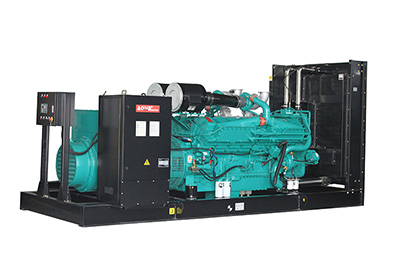

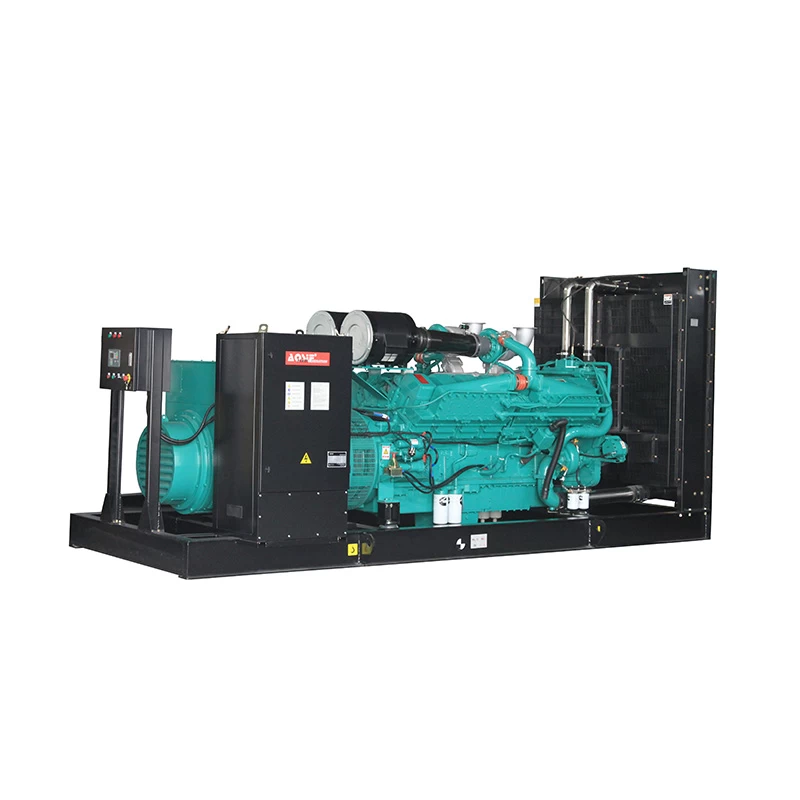

Open Type (Standard Configuration)
|
Soundproof Type
|
Overall Size: 4850×1850 ×2480mm(L*W*H)
|
Overall size: 6500× 2280×2500mm(L*W*H)
|
Weight: 8840kg
|
Weight: 9790kg
|
Genset Main Technical Data:
|
Genset Model
|
AC1375
|
|
Prime Power(50HZ)
|
1000KW /1250 KVA
|
|
Standby Power(50HZ)
|
1100KW /1375KVA
|
|
Frequency/Speed
|
50Hz/1500rpm
|
|
Standard Voltage
|
230V/400V
|
|
Phases
|
Three phases, four wires
|
|
Manufacturer
|
Xiamen AOSIF Engineering LTD.
|
Cummins Engine Data:
|
Manufacturer
|
Chongqing Cummins Engine Co. Ltd.
|
|
Model
|
KTA50-G3
|
|
Engine speed
|
1500rpm
|
|
Engine power
|
|
|
--------------------Standby power
|
1097kw /1472HP
|
|
--------------------Prime power
|
1227kw /1645HP
|
|
Type
|
4 cycle, 60°Vee; 16-cylinder
|
|
Aspiration
|
Turbocharged and aftercooled
|
|
Governor
|
159*159 mm
|
|
Bore * Stroke
|
50.3 L
|
|
Displacement
|
13.9:1
|
|
Compression ratio
|
725 – 775 r/min
|
|
Idle speed
|
1744kpa
|
|
Brake mean effective pressure
|
7.9 m/s
|
|
Piston speed
|
116kw(155HP)
|
|
Friction horsepower
|
86kw(115HP)
|
Generator Detail
Our Sales Promises
★ AOSIF Engineering provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment.
★ Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours, whichever comes first.
★ Service and parts are available from XIAMEN AOSIF Engineering Ltd. or distributors in your location.
★ All the products from Xiamen AOSIF Engineering Ltd. is CE marked.
