AOSIF 1000KW 1250kva Perkins diesel generator set
General feature:
♦ Asse
mbled by Perkins diesel engine and Leroy Somer alternator.
♦ Three filters as standard, fuel and water separator as optional.
♦ Radiator and fan with safety guard.
♦ Single bearing alternator IP 23, Insulation Class H.
♦ Heavy duty steel as base frame and 8hrs operation base fuel tank.
♦ Automatic control panel and 3 poles circuit breaker, internal cable.
♦ 24V battery, battery wires.
♦ Battery charger and float battery charger as standard supply scope.
♦ Optional soundproof canopy, ATS, synchronization panel, movable trailers.
Genset Open Version Genset Soundproof Version

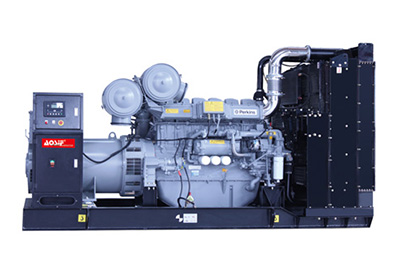

Open Type (Standard Configuration)
|
Soundproof Type
|
Overall Size:4900×2200×2750mm(L*W*H)
|
Overall size: 5800× 2430×2650mm(L*W*H)
|
Weight: 7600kg
|
Weight: 11170kg
|
Genset Main Technical Data:
|
Genset Model
|
AP1375
|
|
Prime Power(50HZ)
|
1000KW /1250 KVA
|
|
Standby Power(50HZ)
|
1100KW /1375KVA
|
|
Frequency/Speed
|
50Hz/1500rpm
|
|
Standard Voltage
|
230V/400V
|
|
Phases
|
Three phases, four wires
|
|
Manufacturer
|
Xiamen AOSIF Engineering LTD.
|
Perkins Engine Data:
|
Manufacturer
|
Perkins Engines Company Limited
|
|
Model
|
4012-46TWG2A
|
|
Engine speed
|
1500rpm
|
|
Engine power
|
|
|
--------------------Standby power
|
1224kw
|
|
--------------------Prime power
|
1113kw
|
|
Type
|
4 stroke, 60º Vee form ,12-cylinder
|
|
Aspiration
|
Turbocharged and air to water charge cooled
|
|
Governor
|
160*190 mm
|
|
Bore * Stroke
|
45.842 litres
|
|
Displacement
|
13.6:1
|
|
Firing order
|
1A, 6B, 5A, 2B, 3A, 4B,6A, 1B, 2A, 5B, 4A, 3B
|
|
Total lubrication system capacity
|
177 litres
|
|
Total coolant capacity(Temperate )
|
196 litres
|
|
Total dry weight(Temperate )
|
5220 kg
|
|
power Dimensions(Temperate)
|
3714 *1780*2255mm(L*W*H)
|

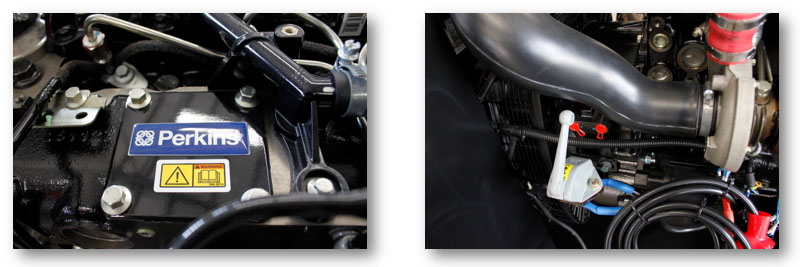

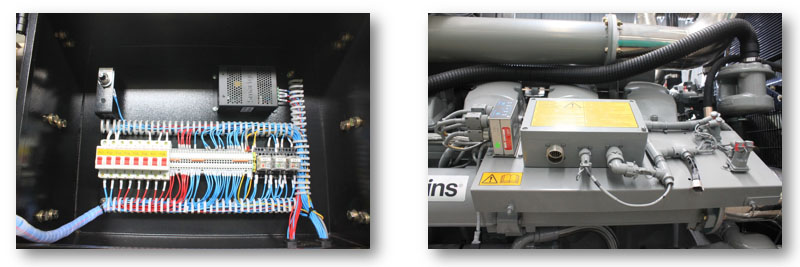

Generator Detail
Our Sales Promises
★ AOSIF Engineering provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment.
★ Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours, whichever comes first.
★ Service and parts are available from XIAMEN AOSIF Engineering Ltd. or distributors in your location.
★ All the products from Xiamen AOSIF Engineering Ltd. is CE marked.
