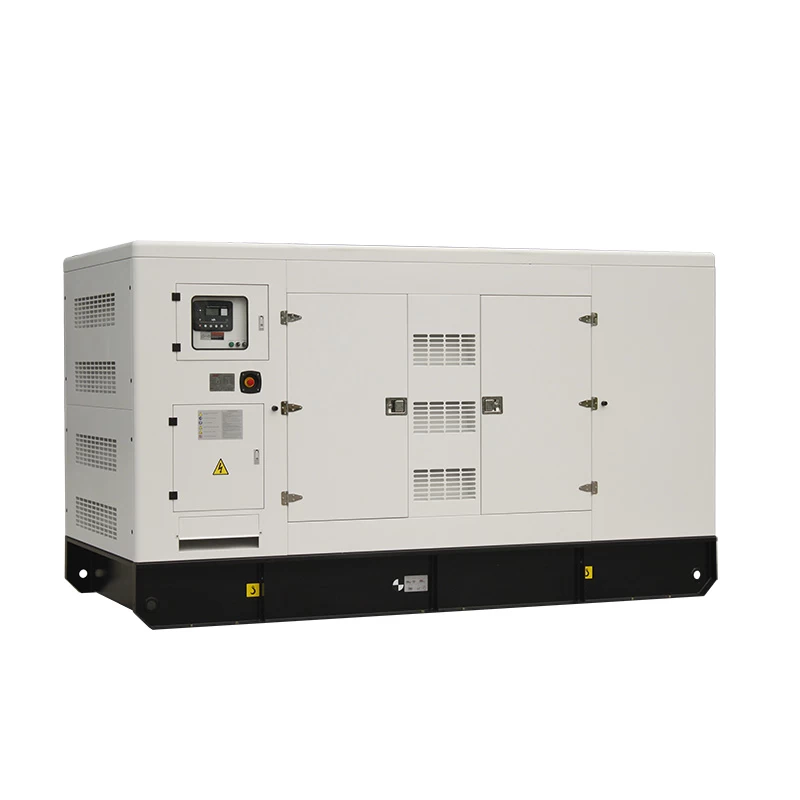

600kva-700kva Silent Diesel Generators set
The ASP series silent type generator is made according with ISO standards, And in conformity with the current and pending law about the safety requirements and environmental requirements of working environment, AOSIF generator sets all pass the strict test, can run under the most demanding working conditions.
Performance feature：
• Weatherproof, sturdy and durable.
• Powder coat, with excellent anti-corrosion performance.
• Full considering the security, to ensure safe operation and maintenance.
• Easy operation.
AOSIF Soundproof Enclosure Description
Double door on both side of enclosure,
Direct exhaust from sideby.
Silencer is installed outside the enclosure.
With top lifting structure.
Suitable for the models as below:
CUMMINS: 50Hz: 420KW-550KW 60Hz: 470KW-600KW
perkins: 50Hz: 480KW-520KW 60Hz: 500KW
DOOSAN: 50Hz: 520KW-600KW 60Hz: 600KW-672KW
|
Iifting Mouth
50Hz/60Hz
|
Engine Model
|
Alternator
|
Standard Structure
|
Dimension (mm)
|
|
420KW/470KW
|
KTAA19-G5
|
Any brand suitable model
|
Direct exhaust from sideby；Silencer is installed outside the enclosure; with top lifting structure
|
4200*1900*2420
|
|
460KW(Standby)
|
KTAA19-G6
|
Any brand suitable model
|
4200*1900*2420
|
|
520KW(Standby)
|
KTA19-G8
|
Any brand suitable model
|
4200*1900*2420
|
|
550KW/600KW(Standby)
|
KTAA19-G6A
|
Any brand suitable model
|
4200*1900*2420
|
|
480KW/500KW
|
2806C-E18TAG1A
|
Any brand suitable model
|
4000*1900*2330
|
|
520KW/500KW
|
2806A-E18TAG2
|
Any brand suitable model
|
4000*1900*2330
|
|
520KW/600KW
|
P222FE
|
Any brand suitable model
|
4300*1950*2450
|
|
550KW/635KW
|
DP222LB
|
Any brand suitable model
|
4200*1950*2450
|
|
600KW/672KW
|
DP222LC
|
Any brand suitable model
|
4200*1950*2450
|

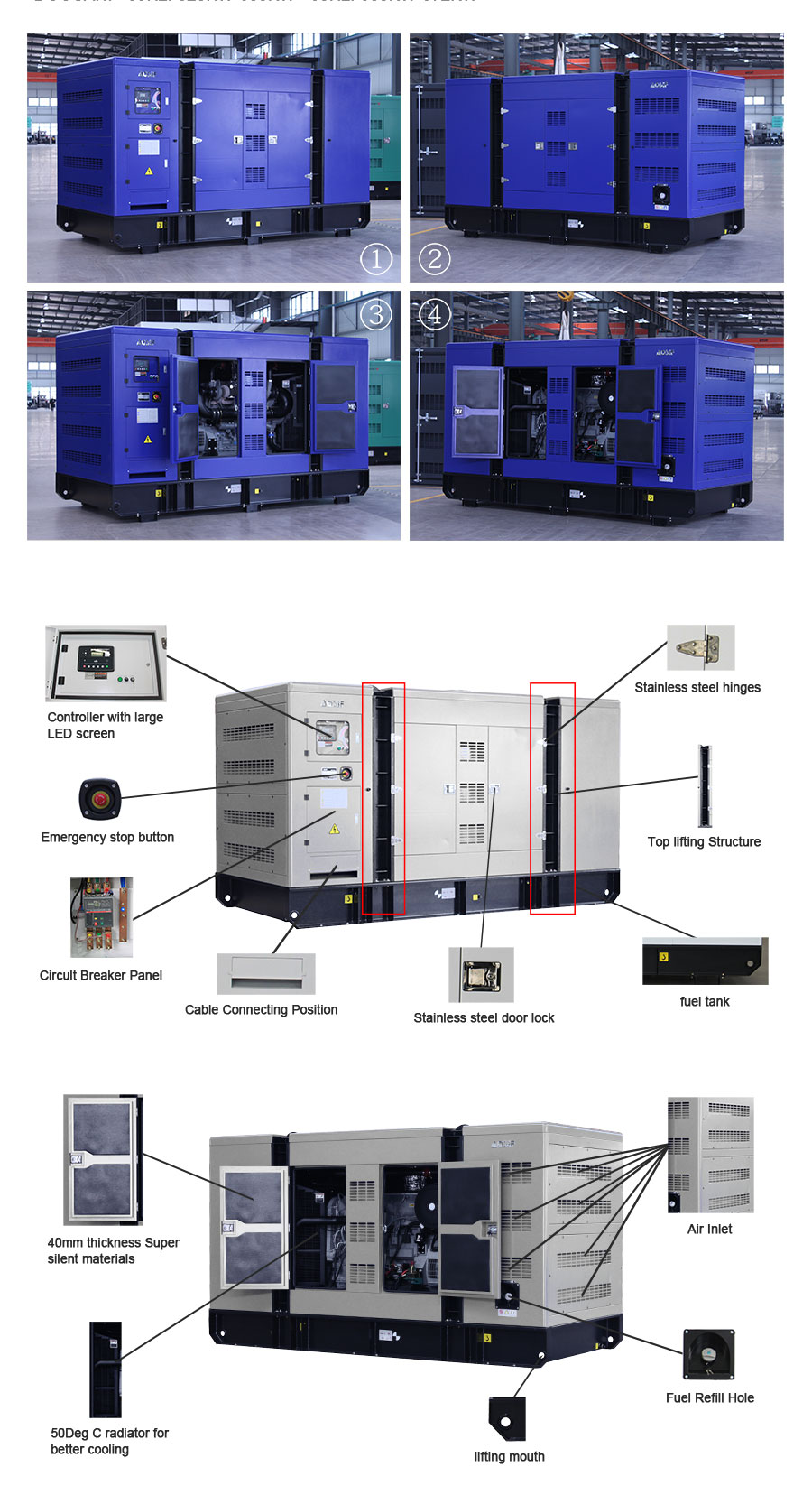

AOSIF Soundproof Enclosure Specification:
AOSIF silent generator is designed by professional acoustic engineers based on 18 years experience.
★ multi-way air intake and exhaust guarantee the power performance of the generator.
★ large-scale impedance combined type silencer effectively reduce noise of the generator.
★ Internal high performance rubber damper and flexible materials reduce vibration.
★ Base mounted fuel tank supports the generator running for 8 hours.
★ Cold steel materials of the canopy.
★ Best powder paint.
★ Zinc plated and Corrosion resistance.
★ Elegant appearance and reliable quality.
★ Stainless steel locks and hinges.
★ Access to all weather conditions.
★ Fireproof, waterproof and dustproof.
★ High quality soundproof materials could efficiently reduce noise.
★ Big base fuel tank in the frame guarantee sufficient diesel supply.
★ 180° revolvable and disassemble door for easy mainteanny.
★ Concave lockable access door for easy operation and indefectible.
★ Lights inside of the canopy for mainteanny.
★ Transparent viewing window make the control panel clear at a glance.
★ Emergency stop button mounted on the canopy exterior for urgency.
★ Cooling fluid injection hole is kept on the ceiling crust.
★ Pipe of lube oil and cooling fluid is mounted on the bottom of generator for easy let.
★ Fuel fill and battery can easy be accessed by lockable door.
★ Cooling fan and battery are fully guarded.
★ Heat insulation of exhaust smoke system inside the canopy.
★ Forkman slot is for choice.
★ Lifting ear is mounted in the base frame.
