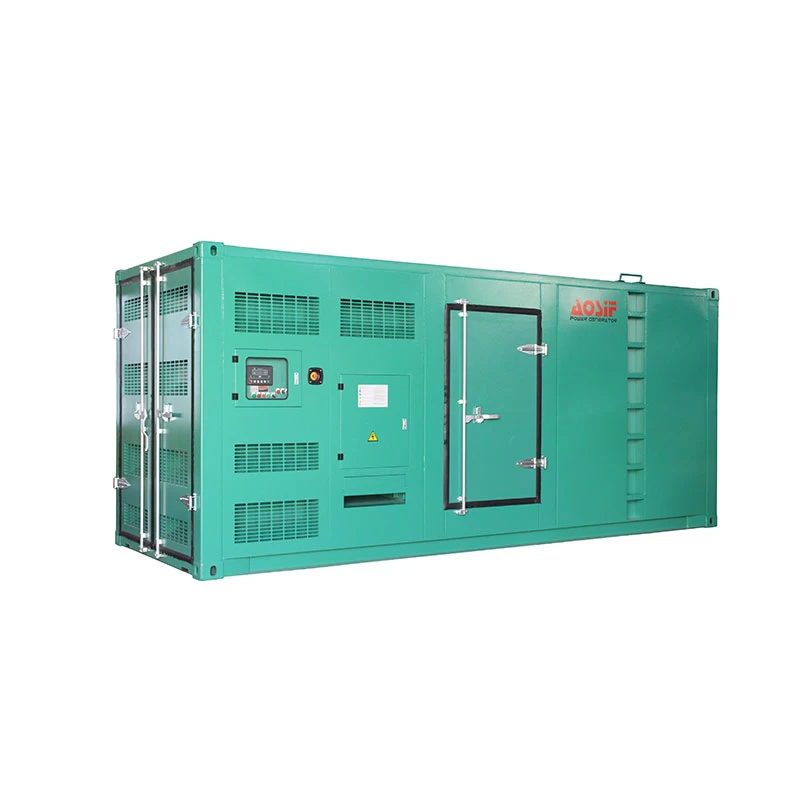

AOSIF silent series enclosure 800-900KVA container harga canopy diesel generator

AOSIF silent canopy container big power industry generator with power 800Kav-900KVA diesel genrator set.


  • Colouroption
  • controllerDeepsea/ComAp
  • AlternatorLeroy somer /Stamford/Marathon/ AOSIF
  • EngineCummins/Perkins/Doosan/SDEC/Mitsubishi/Deutz
  • Prime Power800KVA-900kva
  • Typesilent



Diesel Engine Features:

(1) Adopts engine brand include: Cummins, Deutz, Doosan, Volvo, MAN, etc.

(2)Mounted on heavy-duty frame steel skid;

(3)Built-in Dumper for Anti-vibration;

(4)Diesel Engine has the advantages of compact size, low oil consumption and high efficiency;

(5)Heavy load endurable, Four Strokes, water-cooled, industrial engine;

(6)Outstanding transient response capacity and it is easy in operation, installation and maintenance;

(7)Advanced and reliable control module, which is auto started and can be remotely controlled by PC or Cell phone;

(8)Full range protect function and alarm shutdown feature;



Alternators Features:

(1) Adopts alternator brand include: Leroy somer, Stamford, Marathon, etc.

(2)Self-exciting,Brushless,4 Poles, Rotation Magnet;

(3)IP23 enclosure is standard for all industrial alternator;

(4)The industrial system is Class H;

(5)Simple installation and maintenance, with easy access to terminals and rotating diadems;

(6)Wide range of flange adopters and single bearing disc coupling;

(7)Standard 2/3 pitch windings;

(8)AVR auto voltage regulator, auto exciter ,auto adjustment



Canopy Features:

(1)Good Performance in Outdoor Environment:

a) Adapt to any harsh environment;

b) Large fuel tank capacity;

c).Easy in Transportation;

d) Portable Trailer for Generator is optional;



(2)High Reliability:

a) High efficiency cooling system;

b) .Multi-step shockproof device;

c) .Anti-corrosion resistance surface;

d).Anti-leakage structure for fuel tank;



(3)Excellent Noise Attenuation Device:

a) New and efficient sound-absorbing material;

b) Special muffler with excellent performance;

c) Special wind dust structure;

d) Super Silent Generator's Noise Level ≤ 70-75dB(A) at the distance of 7meters;



(4)High Safety: Comply with GB/T 2820-97 standard; Comply with CE safety standard; Self-protection function.



Quality control of silent generator:



1)All the silent power generator sets with CE & ISO certification are manufactured in accordance with ISO9001:2000, ISO14000 and other common global standards.
2)Each power soundproof generator set undergoes a 1 hours factory load test at 0%, 25%, 50%, 75%, 100% and 110% duty
3)all protection devices and control functions are simulated and checked as part of the factory testing regime. A test certificate can be provided upon request.



Warranty of silent generator set

1)A guarantee of 1000 hours or 12 months from the date of commissioning or 18 months from shipping, whichever occurs first, is provide.

2)Warranty will be invalid if customer disobeys the requirements of the operation and maintenance in Generator Set Technical Manual.



Similar product

Cummins electric Generator, Perkins generator, Deutz diesel generator, Doosan generator set, Volvo diesel generator set,

Chinese power generator, and silent generator, movable generator etc, power range from 9kva to 2000kva.
