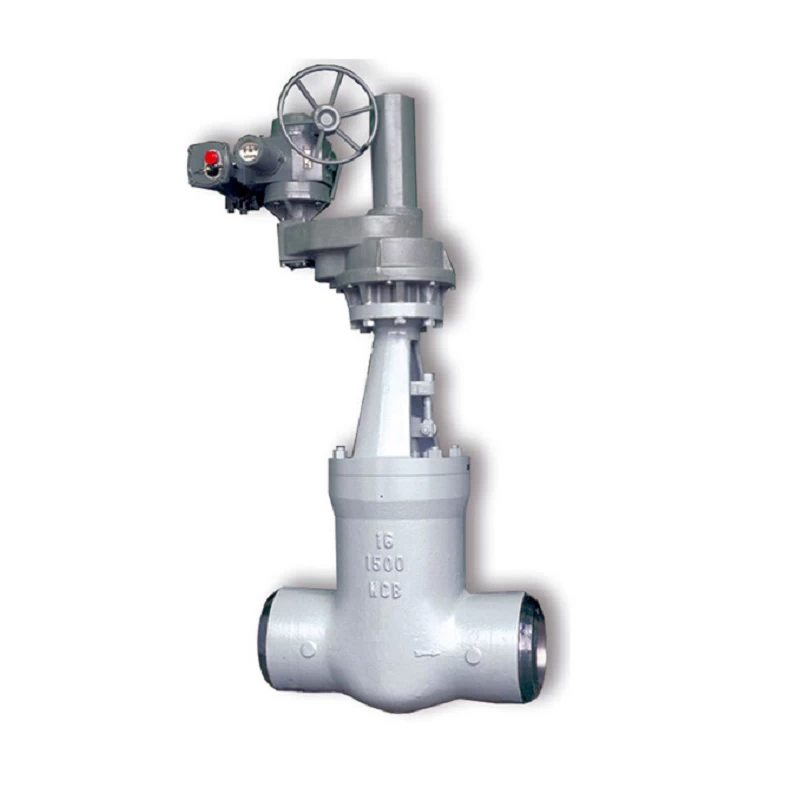

API 600 Cast Steel Pressure Seal Gate Valve
Category: GATE VALVE
FEIDA API600 cast steel pressure seal gate valve has better closure than bolted bonnet type when the working pressure is 600lbs or higher. Its wedge type gasket can achieve tight sealing between the body and bonnet.Once the initial seal is created, the body and bonnet joint will be leak free. And when the pressure is higher, the sealing between the body and bonnet will be better.
Product Description
Size Range
|
NPS 4"-32"(DN100-DN800)
|
Pressure Rating
|
ASME Class 600-2500(PN100-PN420)
|
End Connection
|
RF, RTJ, BW
|
Body Material
|
Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
|
Operation
|
Manual, Pneumatic, Electric
|
Application: Petrochemical, Power plant, Refining, Oil & Gas, Metallurgy etc.
