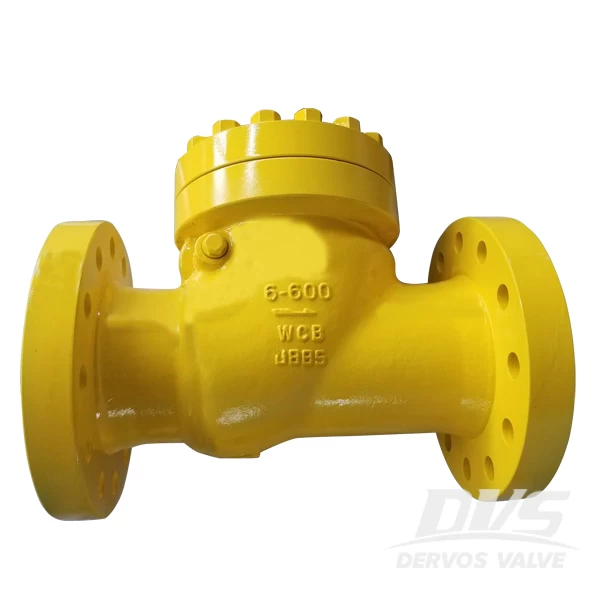

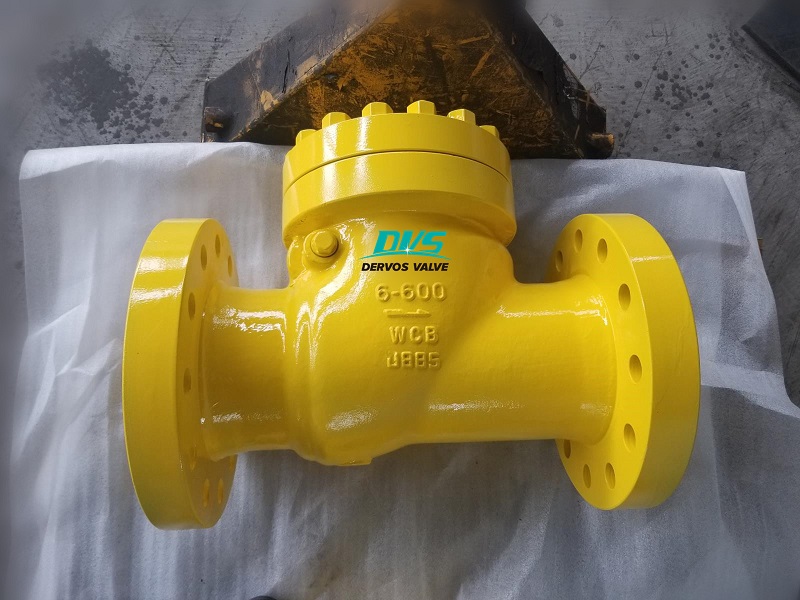

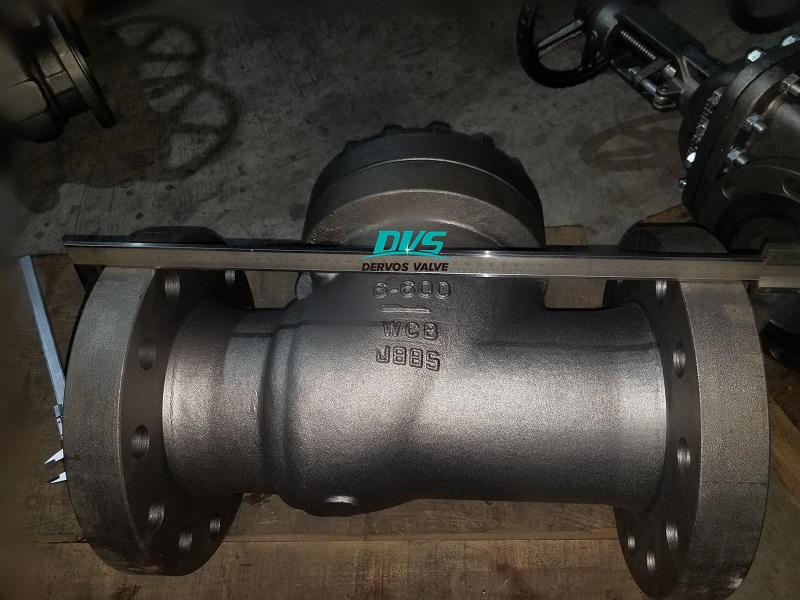

API6D swing type check valve RF connnection bolted bonnet full pore WCB body, WCB+13Cr disc, A105+13Cr seat ring, WCB hinge. Suitable temperature in -29β~+425β
Quick Detail
|
Type
|
Swing Check Valve
|
|
Size
|
4 inch-6 inch
|
|
Design Pressure
|
CL600
|
|
Construction
|
BC, Swing type
|
|
ConnectionType
|
Flange
|
|
OperationType
|
-
|
|
Body Material
|
WCB
|
|
DiscMaterial
|
WCB+13Cr
|
|
Hinge Material
|
WCB
|
|
Seat Material
|
A105+13Cr
|
|
Design Code
|
API 6D
|
|
Face to Face Dimension
|
ASME B16.10
|
|
Test and Inspect
|
API 598
|
|
Pressure & Temp
|
ASME B16.34
|
|
Medium
|
Water, Oil and Gas
|
|
Origin
|
China
|
