APO-RP1020D Plasma System Atmospheric Pressure Plasma Surface Treatment Machine is mainly used in the front processing of mobile phone case printing, coating and dispensing, as well as the surface treatment of mobile phone screen.
Parameters :
1.Name：spray type AP plasma surface treatment system
2.Model：DSX-APO-RP1020D
3.Power Supply：220V/AC ,50/60Hz
4.Power：800W/25KHz
5.Processing Height：5-15mm
6.Processing Width：20-80mm（Option）
7.Internal Control Mode：digital control
8.External Control Mode：RS232digital communication port, analog control port
9.Work Gas：Compressed Air (0.4Mpa)
Typical Applications :
1.It is mainly used in the front processing of mobile phone case printing, coating and dispensing, as well as the surface treatment of mobile phone screen.
2.Surface cleaning of aerospace electrical connectors in the national defense industry.
3.General industry screen printing, transfer printing pre-processing.
Product Introduction :
1.Various types of nozzles can be selected and used in different occasions to meet different products and treatment environments.
2.The equipment is compact in size, convenient to carry and move, saving space for customers to use.
3.Can be in-line installed in customer equipment production line, reduce customer input cost.
4.Long service life, low maintenance cost, easy to control customer cost.
Plasma >> Surface Determination >> Contact Angle Measurement Method
Features of PG-X portable contact Angle measuring instrument :
Not test samples are required
Rapid determination of
Automatic determination of
Comprehensive operating software
Simple USB connection (no power required)
Provide software update

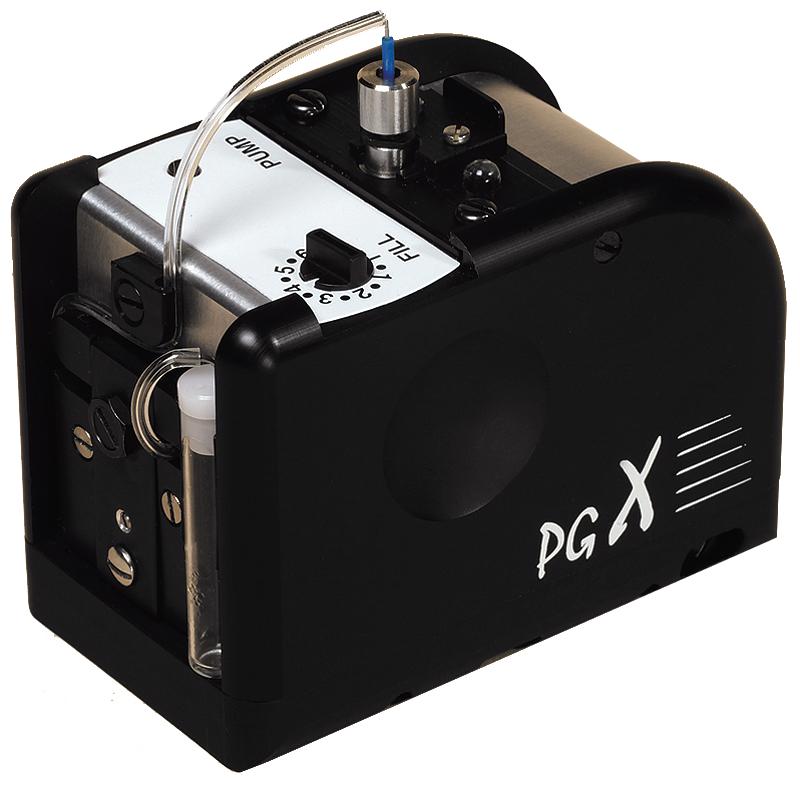

The PG-X portable contact Angle meter is a small instrument used to measure contact angles on various surfaces such as a desk, roof or bumper, glass bottles or metal cans.The results of the measurements can be used to evaluate and control various parameters, such as wettability (printing, painting or coating), adhesion ability (coating), or surface contamination (ultra-fine cleaning).
PG-X does not need to prepare samples for automatic testing.Simply place the device on the surface of the object you want to test and press the button. The internal pump will drop a small drop of water on the test surface that has been accurately measured. The built-in camera captures the movement of the droplets and then reads the test results, such as static contact Angle, dynamic contact Angle and penetration.
Plasma Technology >> Surface Determination >> Portable Contact Angle Measuring Instrument
Technical Features of MSA :
Fully automatic measurement can be completed by pressing a button
High efficiency and stability is comparable to laboratory equipment
Ideal surface energy quality control instrument with movable and nondestructive surface energy
Connect the device and power it through a USB port
Can measure vertical surface, surface and bottom surface

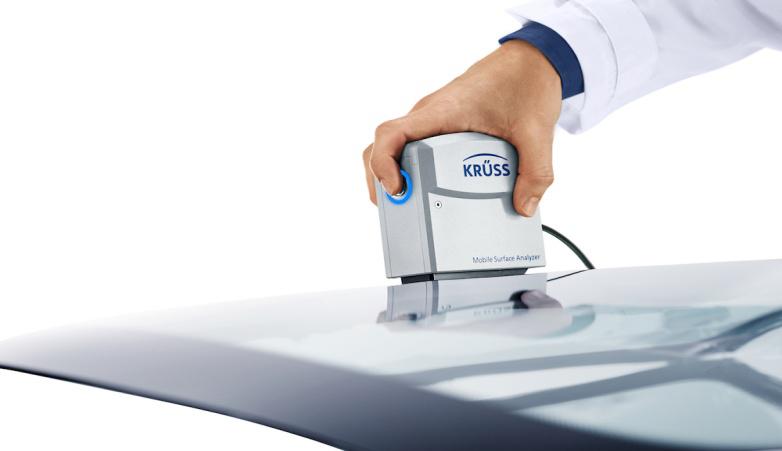

The portable contact Angle measuring instrument MSA measures the wettability of the water contact Angle measuring surface by measuring the water contact Angle automatically. The contact Angle may provide specific surface energy parameters required for downstream processes, such as free surface energy and wettability (important indices for printing, spraying and coating) or adhesion capability. In addition, MSA can reliably display surface polarity, such as the effect of Openair plasma treatment.
MSA USES two test fluids to determine surface energy on a solid surface: a polar liquid (usually water) and a non-polar liquid (usually diiodoform).
After pressing the button, MSA releases two test liquids automatically and accurately, measures each contact Angle at the same time, and calculates free surface energy instantly.The machine is not in contact with the measured surface during the test, which avoids causing surface damage or pollution to the test samples.
