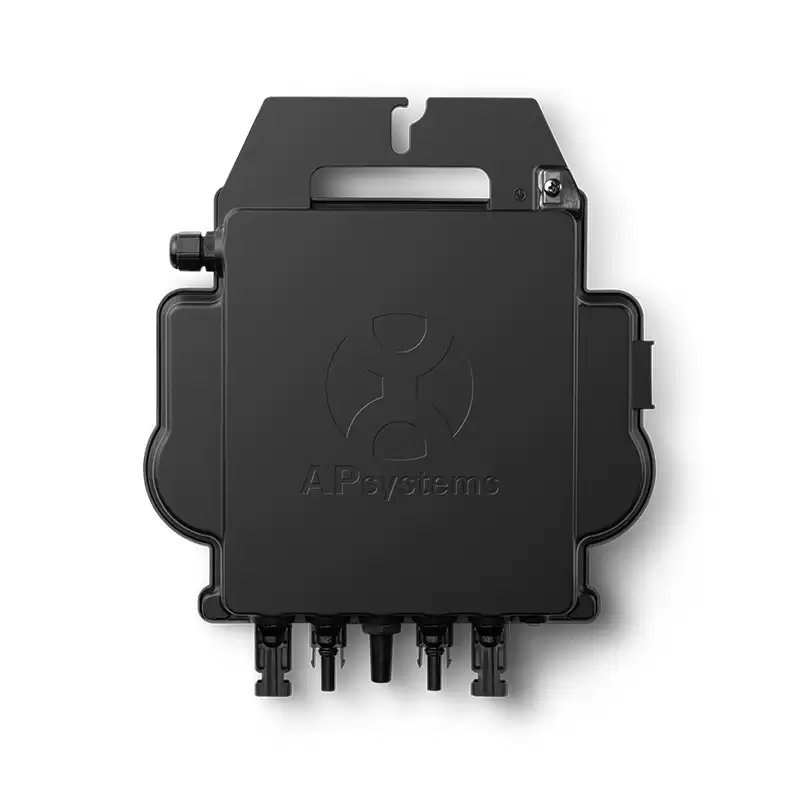

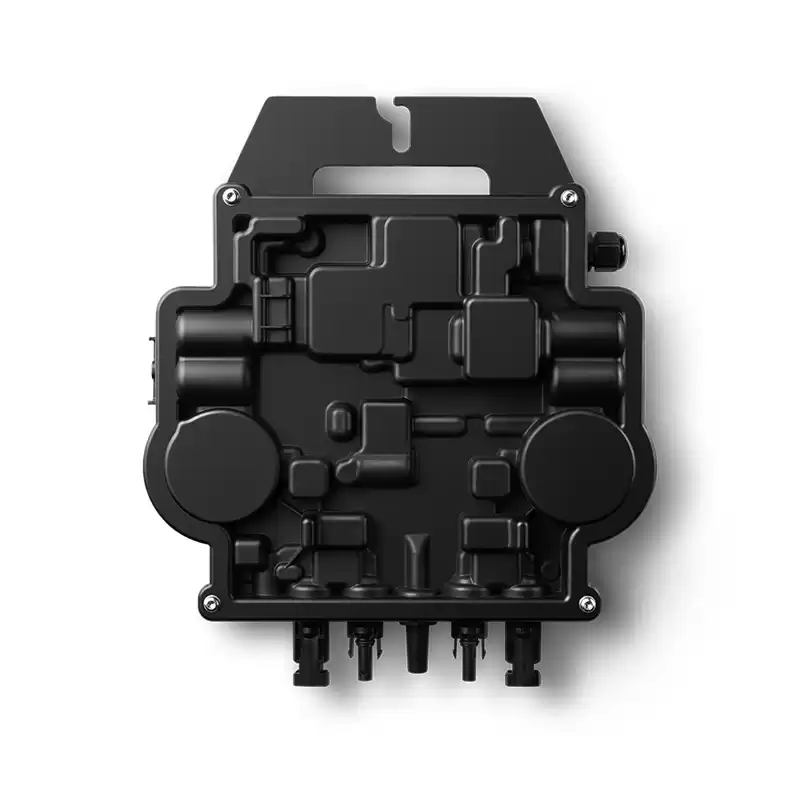

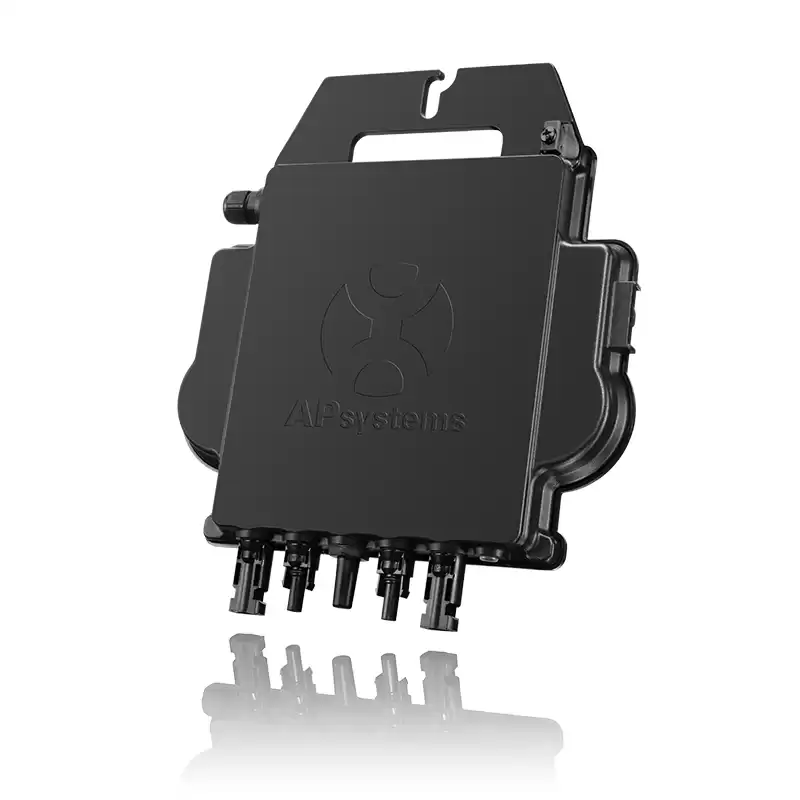

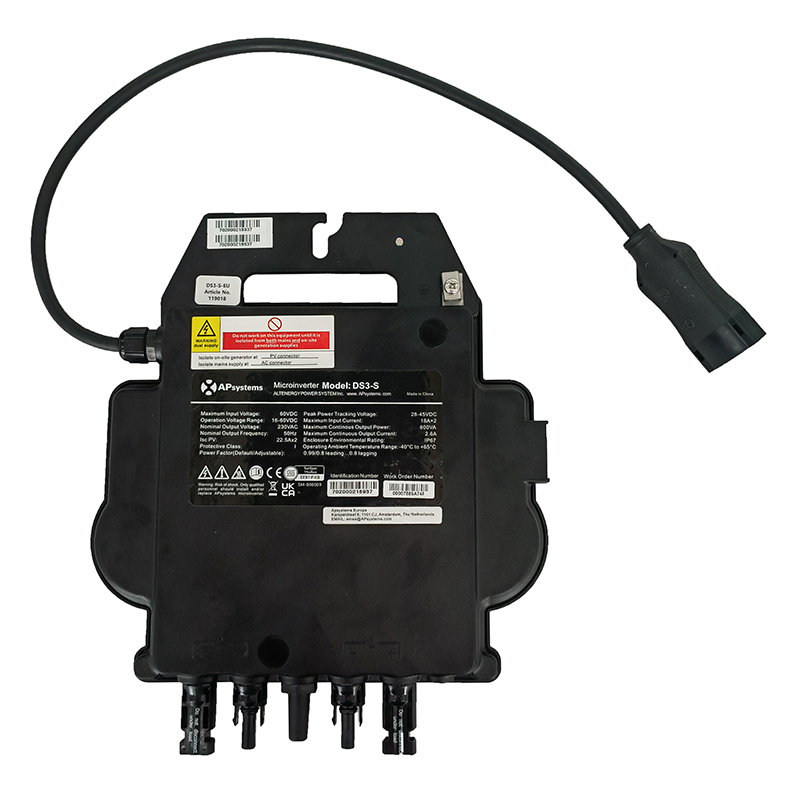

APsystems DS3 Solar Micro Inverter

The most powerful Dual Microinverter

1.One microinverter connects to two modules;

2.Max output power reaching 730VA, 880VA, or 960VA;

3.Two input channels with independent MPPT;

4.Large input current to adapt to large modules;

5. Reactive Power Control;

6. Maximum reliability, IP67;

7. Encrypted ZigBee Communication;

8. Safety protection relay integrated;




Overview

Key attributes

Industry-specific attributes

Output Type
Single
Type
DC/AC Inverters
Inverter Efficiency
99.5%

Other attributes

Place of Origin
Anhui, China
Brand Name
APsystems
Model Number
DS3 730/880/960VA
Input Voltage
16-60V
Output Voltage
220V/230V/240V
Output Current
3.2-4.2A
Output Frequency
50/60Hz
Size
263mm x 218mm x 42.5mm
Certificate
CE/IEC/UL
Warranty
10 Years Standard ; 20 Years Optional
Weight
3kg
PV Input Power
255-660W
MPPT Voltage Range
16-60V
Output Power
730/880/960VA
Working Temperature Range
-45~65℃
Communication
Encrypted ZigBee
Protection Degree
IP67
Cooling
Natural convection (no fans)
Type of isolation
High Frequency Transformers, Galvanically Isolated
MPPT efficiency
99.5%
Night Power Consumption
20mW

Packaging & delivery

Package Type:
Box with Pallet

Supply Ability

Supply Ability
10000 Set/Sets per Week
Products Description

Technical Specifications
Model
DS3-L
DS3
DS3-H
Input Data (DC)
Recommended PV Module Power (STC) Range
255Wp-550Wp+
300Wp-620Wp+
330Wp-660Wp+
Peak Power Tracking Voltage(1)
28V-45V
Operating Voltage Range
16V-60V
Maximum Input Voltage
60V
Maximum Input Current
18A x 2
20A x 2
20A x 2
Isc PV
22.5A x 2
25A x 2
25A x 2
Output Data (AC)
Maximum Continuous Output Power
730VA
880VA
960VA
Nominal Output Voltage/Range
230V/184V-253V
Nominal Output Current
3.2A
3.8A
4.2A
Nominal Output Frequency/ Range
50Hz/48Hz-51Hz
Power Factor(Default/Adjustable)
0.99/0.8 leading…0.8 lagging
Maximum Units per 2.5mm2 Branch
7
5
5
Maximum Units per 4mm2 Branch
8
7
6
Efficiency
Peak Efficiency
97.3%
Nominal MPPT Efficiency
99.5%
Night Power Consumption
20mW
Mechanical Data
Operating Ambient Temperature Range
- 40 °C to + 65 °C
Storage Temperature Range
- 40 °C to + 85 °C
Dimensions (W x H x D)
263mm x 218mm x 41.2mm
263mm x 218mm x 42.5mm
Weight
2.7kg
3.1kg
AC Bus Cable
2.5mm2(23A)/4mm2(28A)
DC Connector Type
Stäubli MC4 PV-ADBP4-S2&ADSP4-S2
Cooling
Natural Convection - No Fans
Enclosure Environmental Rating
IP67
Features
Communication (Inverter To ECU)
Encrypted ZigBee
Isolation Design
High Frequency Transformers, Galvanically Isolated
Energy Management
Energy Management Analysis (EMA) system
Warranty
10 Years Standard ; 20 Years Optional
Compliances
Safety, EMC & Grid Compliances
EN 62109-1/-2; EN 61000-1/-2/-3/-4; EN 50549-1; PN-EN 50549-1; DIN V VDE V 0126-1-1; VFR 2019; UTE C15-712-1; CEI 0-21; UNE
217002; NTS; RD647; VDE-AR-N 4105; G98; G99; G98/NI; G99/NI
