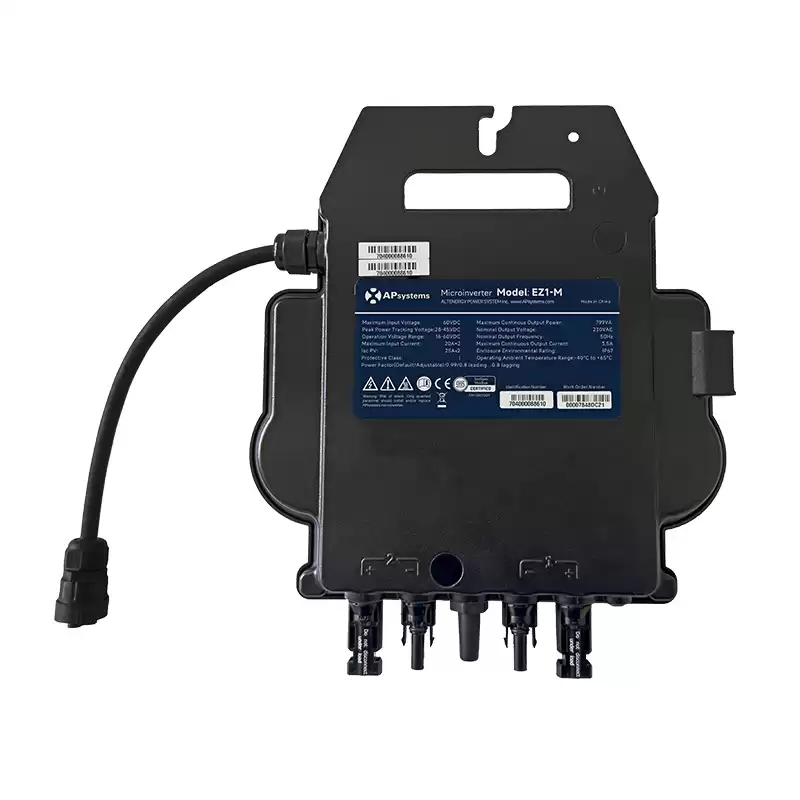

APsystems EZ1-M-EU Solar Micro Inverter

EZ1-M-EU Solar Micro Inverter（WIFI Version）

1.One microinverter connects to two modules

2.Max output power reaching 799/960VA

3.Two input channels with independent MPPT

4.High Input current to adapter to large modules

5.Maximum reliability, IP67

6.Built in Wi-Fi and Bluetooth

7.Safety protection relay integrated

8.Dedicated for balcony and DIY systems

Facebook Twitter Pinterest LinkedIn 分享

Basic Info.

Model NO.
EZ1 600/799/960VA
Brand
Apsystems
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Cooling
Natural Convection (No Fans)
Protection Degree
IP67
MPPT Efficiency
99.5%
Night Power Consumption
20MW
Type of Isolation
High Frequency Transformers, Galvanically Isolated
PV Input Power
300wp-760wp+
Communication
Encrypted Zigbee
Working Temperature Range
-45~65ºC
MPPT Voltage Range
16V-60V
Weight
2.8kg,3kg
Transport Package
Box with Pallet
Specification
263mm x 218mm x 36.5mm/37mm
Trademark
APsystems
Origin
China
HS Code
8504403090
Production Capacity
10000set/Sets Per Week

Product Description


Product Description


Grid Tied WiFi Micro Inverter Sine Wave Inverter 1400W 600W 800W 1000W 2-in-1 Micro Inverters
Technical Specifications

Model
EZ1-M
EZ1-H
Region
EMEA
Input Data (DC)
Recommended PV Module Power (STC) Range
300Wp-730Wp+
410Wp-760Wp+
Peak Power Tracking Voltage
28V-45V
Operating Voltage Range
16V-60V
Maximum Input Voltage
60V
Maximum Input Current
20A x 2
Isc PV
25A x 2
Output Data (AC)
Maximum Continuous Output Power
600VA(3)/799VA
960VA
Nominal Output Voltage/Range(1)
230V/184V-253V
Nominal Output Current
2.6A(3)/3.5A
4.2A
Nominal Output Frequency/ Range(1)
50Hz/48Hz-51Hz
Default Power Factor
0.99
Efficiency
Peak Efficiency
97.3%
Nominal MPPT Efficiency
99.5%
Night Power Consumption
20mW
Mechanical Data
Operating Ambient Temperature Range(3)
-40 °C to +65 °C
Storage Temperature Range
- 40 °C to + 85 °C
Dimensions (W x H x D)
263mm x 218mm x 36.5mm
263mm x 218mm x 37mm
Weight
2.8kg
3kg
DC Connector Type
Stäubli MC4 PV-ADBP4-S2&ADSP4-S2
Cooling
Natural Convection - No Fans
Enclosure Environmental Rating
IP67
Features
Communication
Built-in Wi-Fi and Bluetooth
Maximum units connected(4)
2
Isolation Design
High Frequency Transformers, Galvanically Isolated
Energy Management
AP EasyPower APP
Warranty
12 Years Standard; 20 Years Optional
Compliances
Safety, EMC & Grid Compliances
EN 62109-1/-2; EN 61000-1/-2/-3/-4; EN 50549-1;DIN V VDE V 0126-1-1; VFR; UTE C15-712-1; CEI 0-21;UNE 217002; NTS; RD647; VDE-AR-N4105
Monitoring Solution

Grid Tied WiFi Micro Inverter Sine Wave Inverter 1400W 600W 800W 1000W 2-in-1 Micro Inverters

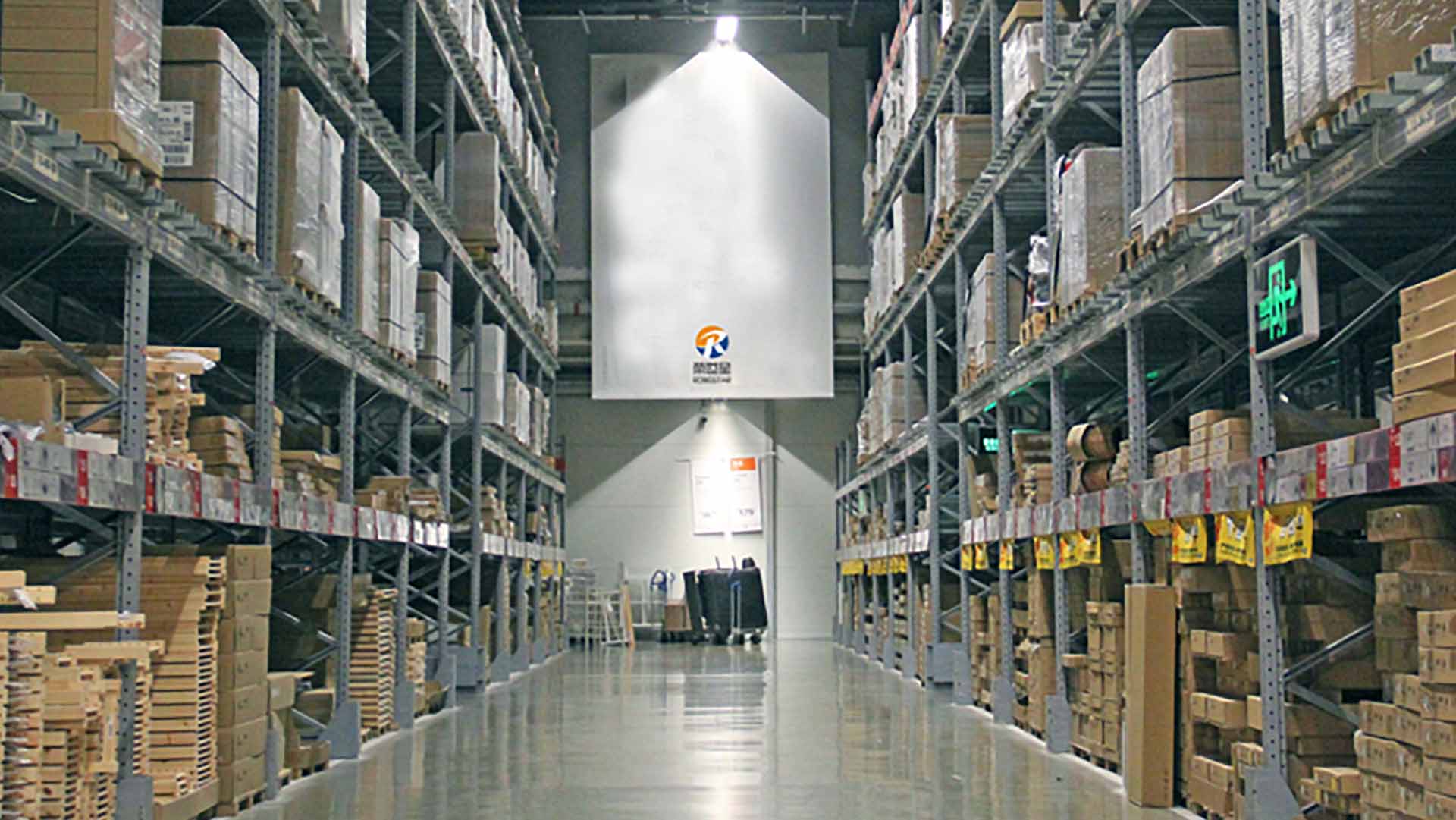

At Rongstar Energy we are proud to play an important part in the global solar energy development. We have years-long experience in the distribution and supply chain of solar panels, inverters, energy storage systems, mounting structures, cables and other components for photovoltaics. Utilizing the strength of our parent company - DJS Group, we have more advantages in global sourcing, supply chain,localized warehousing, technical service for global customers.Our company has much experience in solar projects EPC,O&M and solar plants investment. Our expertise are both globally and locally, means we understand the breadth of challenges that solar installers face, from which we can help save the customers’ time and money.
