Introduction
GYXTW

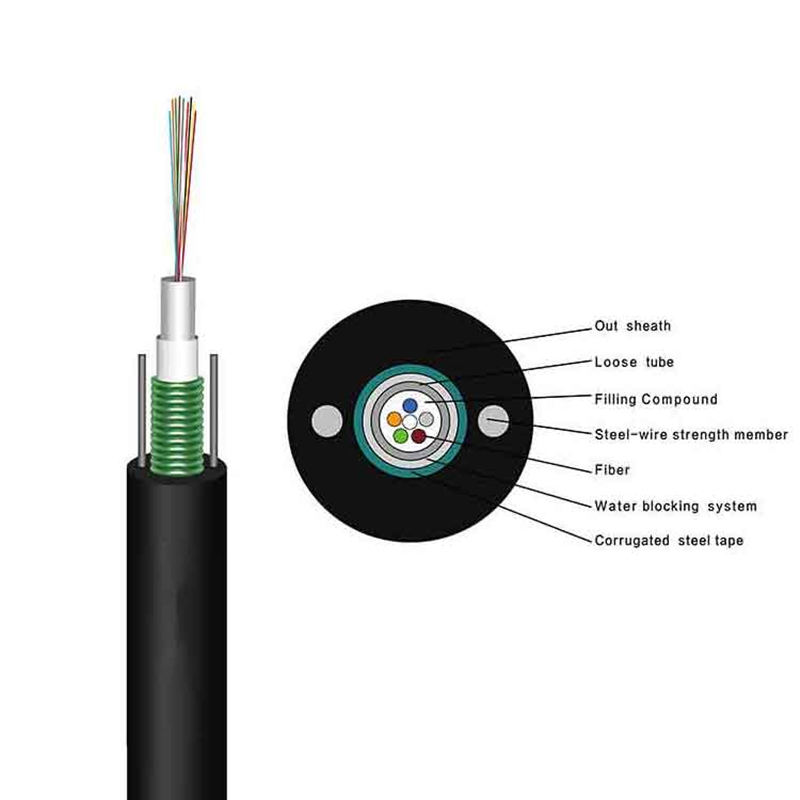

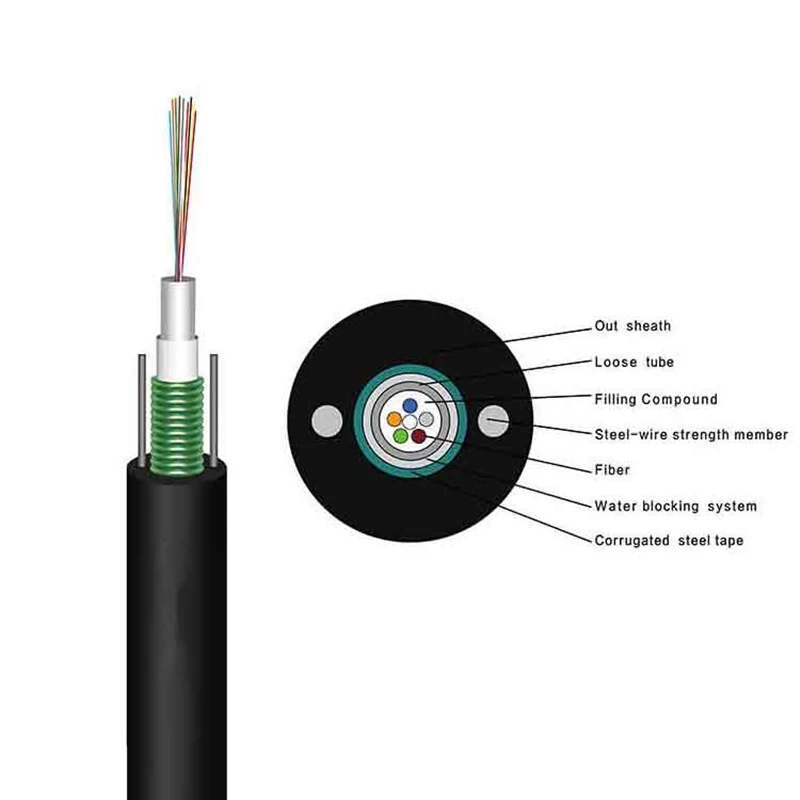

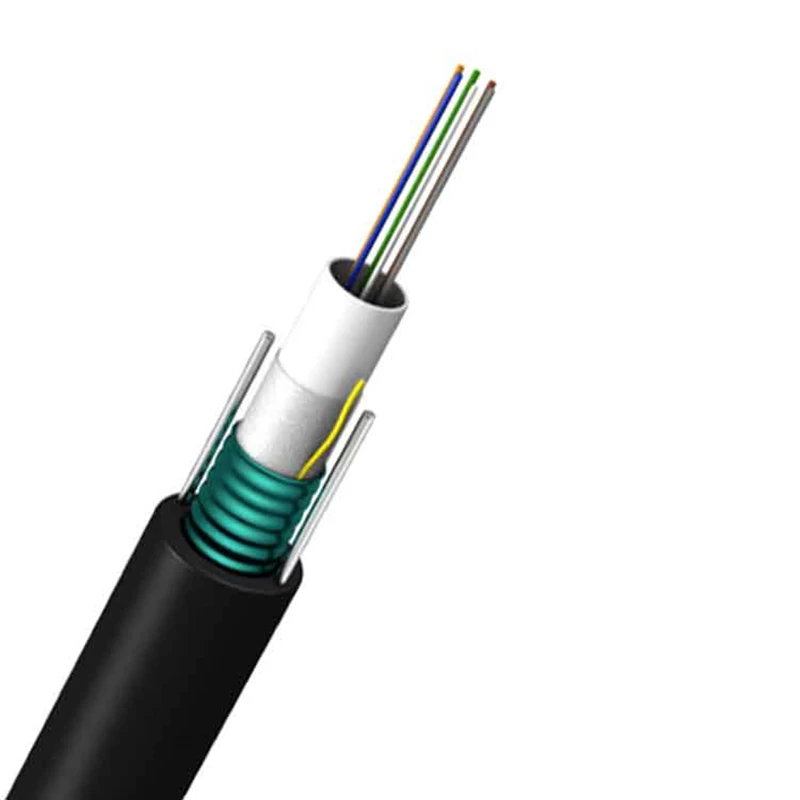

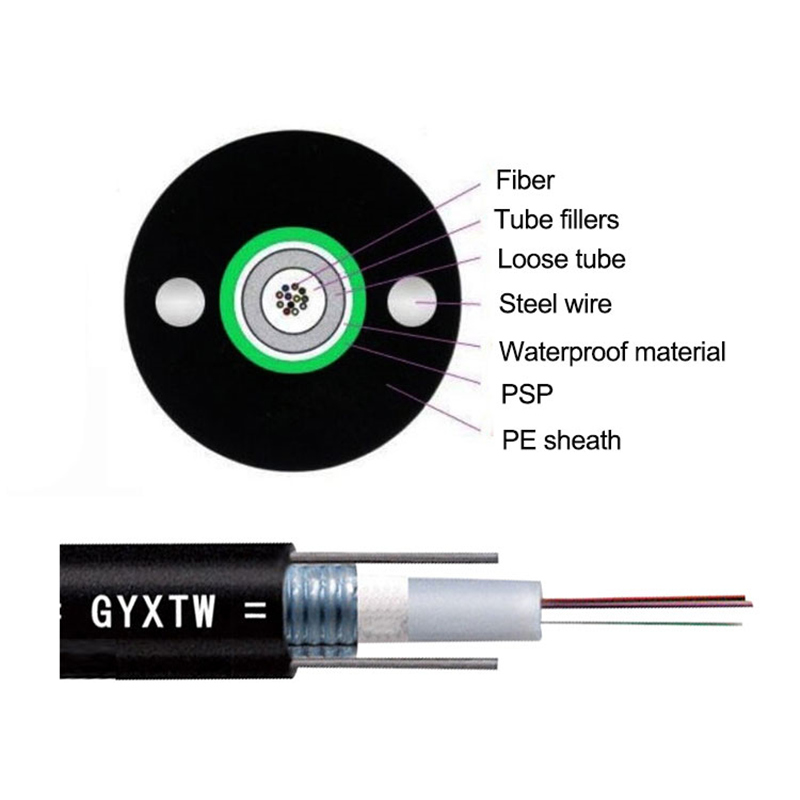

central bundle tube cable is constructed by inserting a 250 μm fiber into a
loose tube made of a high modulus material filled with a water-repellent
compound. The loose tube is coated with a double-sided plastic coated steel
strip (PSP) longitudinally, and a water-blocking material is added between the
steel strip and the loose tube to ensure the compactness and longitudinal water
resistance of the cable. Two parallel steel wires are placed on both sides to
be extruded. The vinyl sheath is cabled.
Features
-
Has
good mechanical and temperature properties.
-
The
loose tube material itself has good hydrolysis resistance and high strength.
-
The
tube is filled with a special grease to provide critical protection to the
fiber, good pressure resistance and softness.
-
Double
coated steel strip (PSP) improves the moisture resistance of the cable.
-
Two
parallel wires ensure the tensile strength of the cable.
-
Small
diameter, light weight and easy to lay.
-
Long
delivery length
Specifications
|
Cable model
|
Fiber
Cores
|
Diameter
(mm)
|
Weight
(kg/km)
|
Allowable
stretching
force
Long/short term
(N/100mm)
|
Allowable
crushing
Force
Long/short term
(N/100mm)
|
Bending
radius
Static/dynamic
(mm)
|
|
GYXTW-2~12
|
2~12
|
10.6
|
124
|
1000/3000
|
1000/3000
|
10D/20D
|
|
GYXTW-14~24
|
14~24
|
12.5
|
149
|
1000/3000
|
1000/3000
|
10D/20D
|
|
GYXTW-26~36
|
26~36
|
14.0
|
190
|
1000/3000
|
1000/3000
|
10D/20D
|
|
GYXTW-38~48
|
38~48
|
15.0
|
216
|
1000/3000
|
1000/3000
|
10D/20D
|
