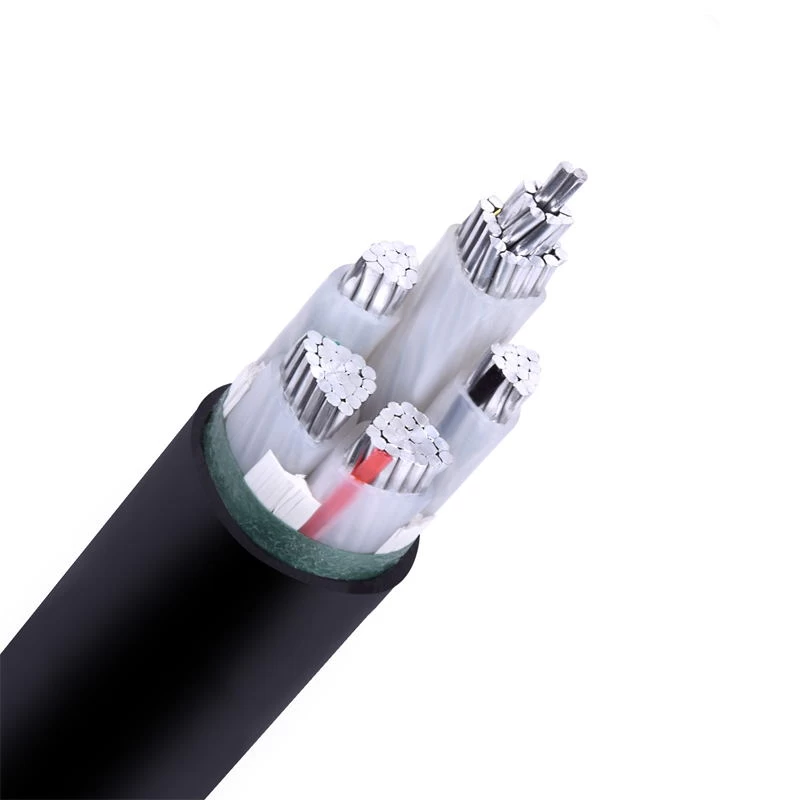

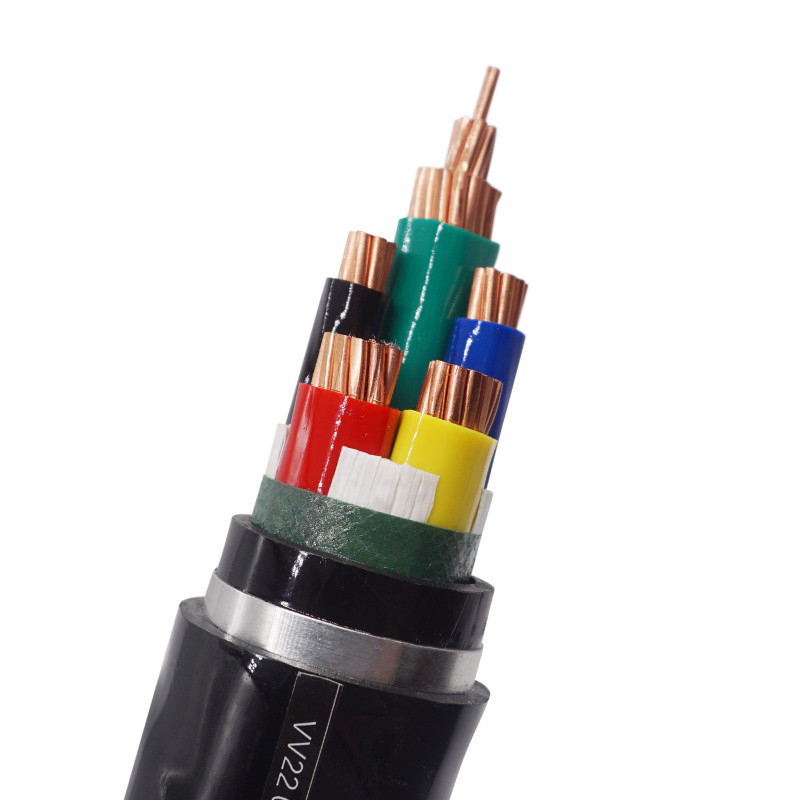

Armoured underground xlpe power cable

More than ten years of production experience, specializing in the manufacture of electric power cable cable, to provide you with better service



yjv5core--821_02


Product Description



Product feature and purpose:

 Cross-linked polyethylene insulated power cables is characterized with high mechanical   strength,strong   resistance to environmental stress,excellent electrical properties ,powerful resistance   to
 chemical attack.In addition,the light and simple products are user-friendly.This product is suitable and   designed   for power transmission and distribution system of rated voltage 0.6/1kv.In terms
 of the main feature of anti-flaming cable,the cable is not liable to ignite or continued ignition is only   limited to a certain scope applicable to power station ,subway ,tunnel ,high-rise building,large
 industrial and mining enterprise,oil field,coal mine and other places of intensive distributed electric   cables.
Operative standard:
 GB/T 12706,IEC 60502 and relevant domestic and international standard.For   example,BS,VDE,JIS,AEIC,and so on.
Operational performance:
 The maximum allowable operating temperature of the cable conductor:90 C in normal condition and   250 C in case of short circuit (maximum duration of short circuit is 5s).

NO.of cores×section
(mm²)

Normal insulation

 thickness(mm)

Normal thickness of

oversheath

Approximate overall

diameter of cable(mm)

Approximate weight

of cable(kg/km)

Cu AL
Unarmoured Armoured Unarmoured Armoured YJV YJV22 YJLV YJLV22
4×4 0.7 1.8 1.8 12.5  18.1 282 430 / /
4×6 0.7 1.8 1.8 14.7 17 383 545 / /
4×10 0.7 1.8 1.8 16.9 19.1 565 752 390 517
4×16 0.7 1.8 1.8 19.3 21.6 783 1020 416 663
4×25 0.9 1.8 1.8 23.5 25.7 1241 1502 593 902
4×35 0.9 1.8 1.8 26.7 28.7 1631 1957 776 1096
4×50 1.0  1.8 1.9 28.0  32.6 2080 2812 961 1770
4×70 1.1 2.0  2.1  33.2 37.5  2952 3796 1302 2222
4×95 1.1 2.1  2.3 38.0  42.6 3970 4962 1693 2757
4×120 1.2 2.3 2.4 40.9 46.4 4894 5913 2077 3363
4×150 1.4 2.4 2.6 46.0  51.3 5980 7170 2852 3878
4×185 1.6 2.6 2.7 52.5 57.8 7442 8802 3173 4618
4×240 1.7 2.8 3.0  59.4 64.6 9764 11289 4032 5782
4×300 1.8 3.0  3.1 66.2 71.6 12122 13856 4924 6735
4×400 2.0  3.3  3.4 73.8 80.3  15624 18407 6272 9313
4×500 2.2 3.5 3.7 89.3 96 19877 23264 7667 11062
4×630 2.4 3.8 4.0  99.6 106.3 25124 28895 9514 13293

yjv5core--821_03yjv5core--821_04yjv5core--821_05


Packaging & Shipping



yjv5core--821_09

Company Information



BVVB-flat-cable-_08

Certifications



BVVB-flat-cable-_09BVVB-flat-cable-_10BVVB-flat-cable-_11BVVB-flat-cable-_12

Our customers are located all over the world including China, Singapore, Malaysia, Indonesia, Korea, India, USA and many countries in Europe as well as Africa and South America.

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
