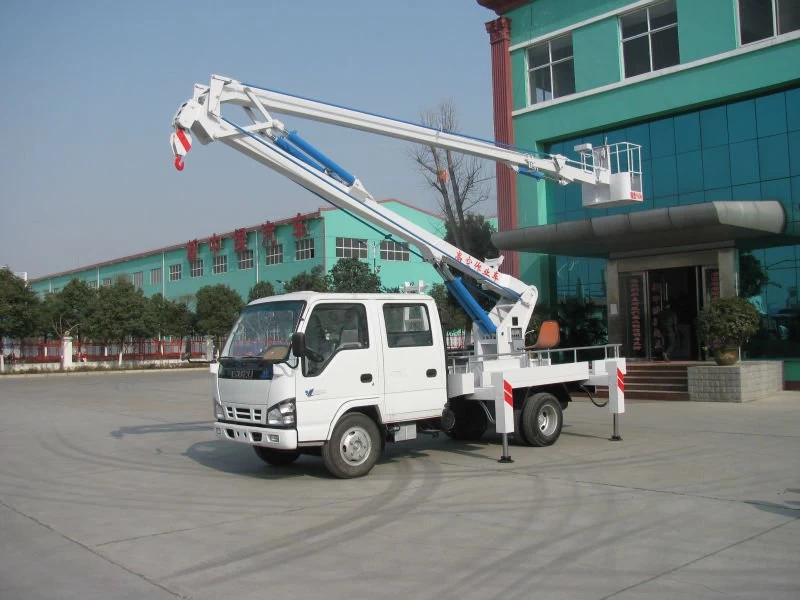

14m Basket Crane Truck Isuzu

14m Basket Crane Truck Isuzu

Function:

Basket Platform Truck Isuzu (also called Aerial platform truck, Basket cranes, Truck mounted telescopic aerial platform, Hydraulic beam lifter, boom lift, bucket truck, Man lift truck, etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

POWERSTAR telescopic platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.



Features:

---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

Specification:

Similar Key Words:  Boom lift truck, Man lift truck, Overhead working truck, Skylift truck, Aerial truck with Basket, Truck mounted aerial lift Isuzu


 Basket Crane Truck ISUZU (4M)
General Vehicle Brand POWERSTAR
Chassis Brand ISUZU
Overall Dimension 7650 x 2100 x 3250 mm
GVW / Kerb Weight 6,810 kg / 6,485 kg
Cab Cab Capacity 2+3 persons allowed
Air Conditioner With air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine, 4KH1-TCG40
Power 120Ps (88KW)
Displacement 2999 ml
Emission Standard Euro IV
Chassis Drive Type 4X2, left hand drive
Transmission ISUZU MSB transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km
Wheelbase/No. of axle 3815 mm / 2
Tyre Specification 7.00-16 or 7.00R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Cage Rated Capacity 200 kg
Working Height 10 m~ 14 m
Beam The beam is articulated & telescopic extension type, hydraulic actuated and controlled
Slewing Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.
Control Control both on the ground and remote control in cage
Safety Device Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump
Leveling System Hydraulic stabilizer to level the vehicle on uneven ground
Optional Insulated cage; Wireless remote control system

 Aerial working platform truck Isuzu boom lift vehicle
