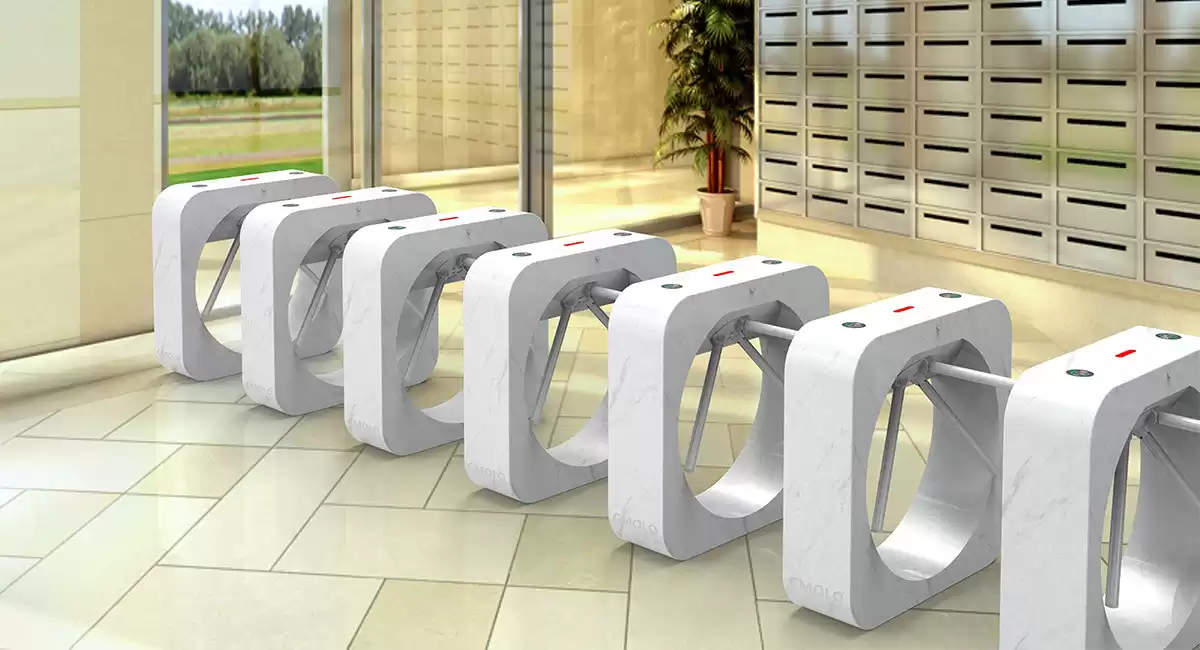

Artificial Stone Tripod Turnstile Gate Access Control System

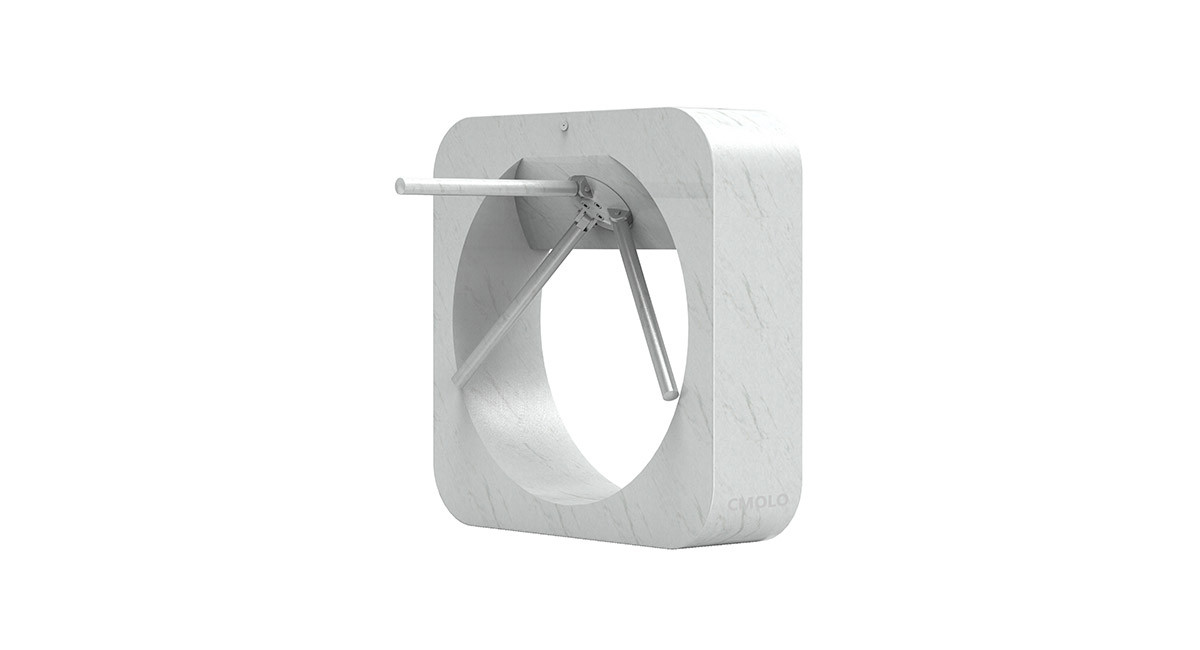

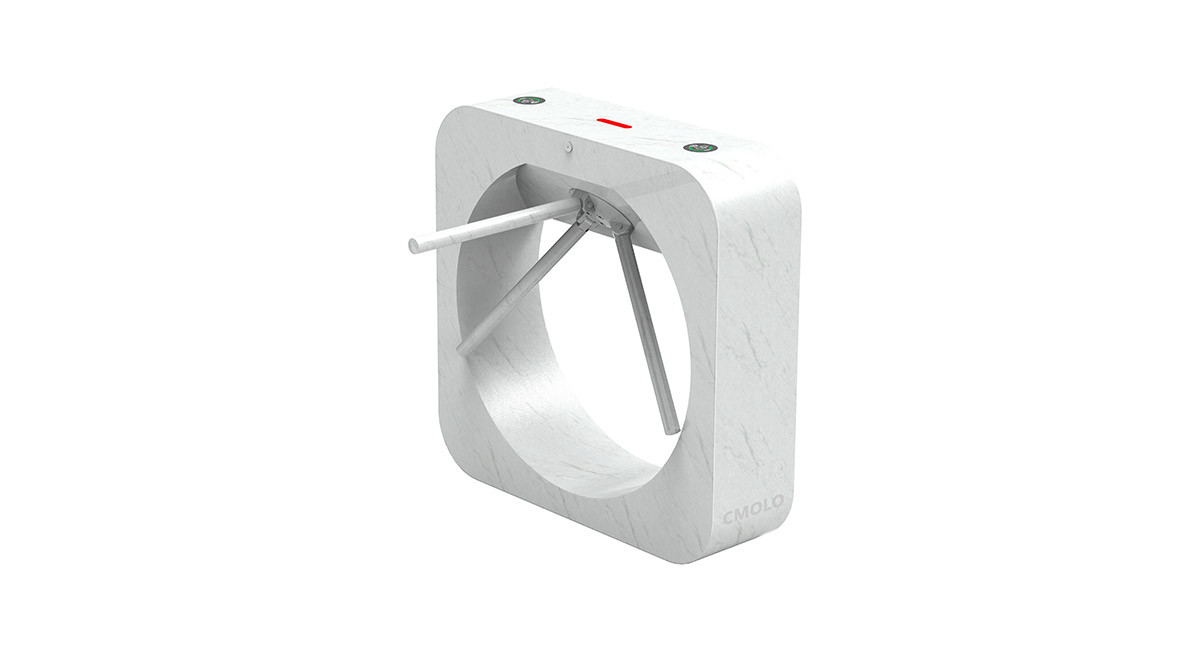

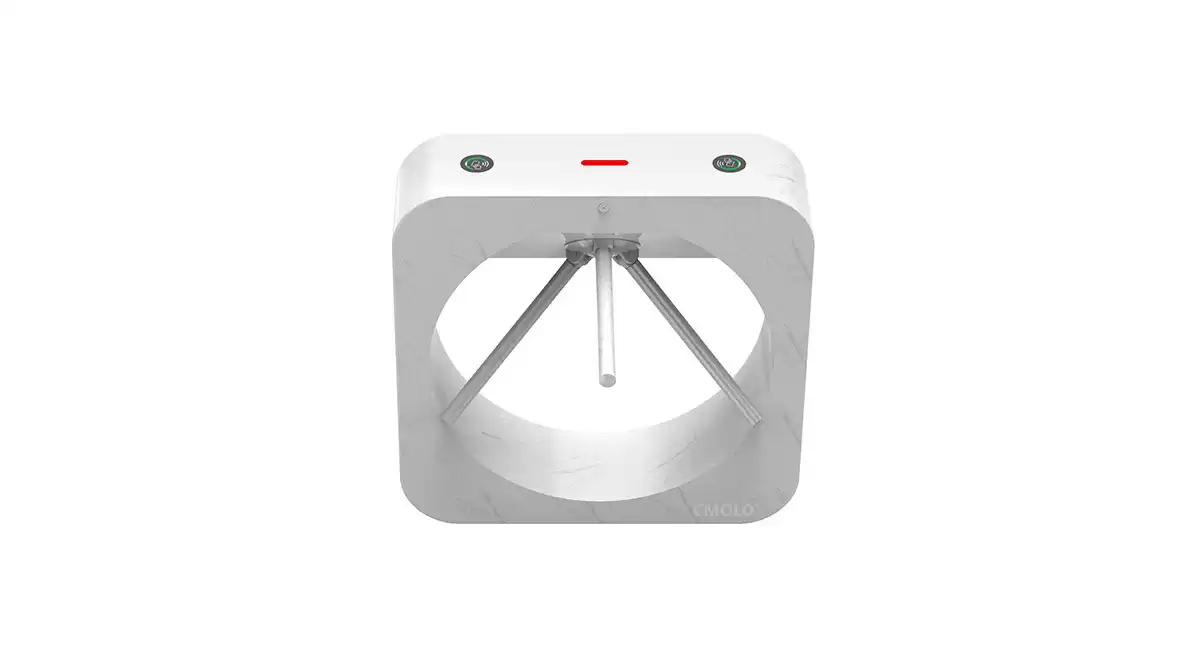

The surface of the tripod turnstile CPW-417Y is made of artificial stone, with high-quality texture and a perfect combination of aesthetics and technology.



The artificial stone tripod turnstile gate access control system CPW-417Y can be divided into fully-automatic tripod turnstile and semi-automatic tripod turnstile. Both are adopted mechanical anti-tailgating design, which can realize that single person passes at one time and the anti-tailgating ability is very high. It is suitable for indoor and outdoor occasions such as office buildings, governments, scenic spots, factories, gymnasiums, schools, etc.



The mechanism of the fully-automatic tripod turnstile adopts a secondary transmission mechanical structure, and the gear transmission ratio is accurate, efficient and stable, which can precisely control the rotation angle of the arm and reduce the loss; the mechanism of the semi-automatic tripod turnstile adopts a strong buffer design structure, effectively reduce noise and mechanical vibration, run more efficiently, smoothly and reduce losses. Two mechanism designs can ensure the reliability of the mechanism and enhance the service life of the mechanism.

Facebook Twitter Pinterest LinkedIn 分享





advanced core patented technology





high stability, optimize the mechanism structure





long life, longer than 10 million times





accurate & fast detection















IP65



high temperature resistance



low temperature resistance



condensation resistance

















modular design, easy maintenance





high compatibility, high integration





















Advanced & Intelligent Tripod Turnstile Core Technology



Type Fully-auto tripod turnstile Semi-auto tripod turnstile
Strong mechanism structure The lossless modular mechanism structure independently developed by CMOLO adopts CNC machining technology to ensure the high precision of each module of the mechanism.
The mechanism adopts the mechanical structure of secondary transmission. The gear transmission ratio is precise, efficient and stable, which can precisely control the rotation angle of the arm and reduce the loss, ensure the reliability of the mechanism and enhance the service life of the mechanism. The mechanism adopts advanced hydraulic buffer, with advanced buffer design structure, which effectively reduces the noise and mechanical vibration, makes the operation more efficient and stable, and reduces the loss, ensures the reliability of the mechanism and enhances the service life of the mechanism.
Passing prompt of Automatic rotation After the pedestrian provides a legal door opening signal, the arm rotates at a certain angle in the opening direction, indicating that the pedestrian can pass, and then the pedestrian gently pushes the arm, and the arm automatically rotates in the opening direction. --
Arms status monitoring The artificial stone tripod turnstile gate access control system adopts a closed-loop feedback control system to monitor the movement status of the arm, which can sensitively detect behaviors that threaten the safety of the passageway, such as illegally hitting the arm and reverse passage, and then issue warnings in the form of sound and light, and can be linked with other security systems. --
Over-force feedback control When the gate is momentarily subjected to an impact force beyond the safe range, the gate can be slowly pushed for a certain distance to buffer the impact force on the mechanism and the reverse impact force on pedestrians. --
Core control algorithm Using advanced servo control system and DSP+ARM motor control technology, combined with the motor control algorithm independently developed by CMOLO, to achieve precise control and positioning of the obstacle. The main control center adopts the advanced algorithm based on ARM core, with advanced photoelectric sensors and high-quality solenoids, to achieve efficient and accurate control logic.
Prevent reverse passage Mechanical electric control locking structure design, anti-illegal hitting arm and reverse passage. Mechanical electric control locking structure design, anti-illegal hitting arm and reverse passage.
Anti-tailgating The artificial stone tripod turnstile gate access control system adopts mechanical anti-tailgating design, which can realize only one person passing through at a time.
Long service life CMOLO's independently developed advanced mechanism structure, equipped with high-quality DC brushless motor (core of the mechanism), so that the mechanism has a long service life. The mechanism and control system of the artificial stone tripod turnstile gate access control system have passed 10 million life tests. CMOLO's independently developed advanced mechanism structure, equipped with high-quality solenoid (core of the mechanism), so that the mechanism has a long service life. The mechanism and control system of the artificial stone tripod turnstile gate access control system have passed 10 million times life tests.





All-around Pedestrian Safety Protection



Type Fully-auto tripod turnstile Semi-auto tripod turnstile
Drop arm when power failure The advanced mechanical structure is independently developed by CMOLO. When the power is cut off, the arm is automatically unlocked, and pedestrians can freely push the arm to quickly evacuate the crowd.
Anti-electric shock All electric modules are designed to operate under the safety voltage of 24V, and configured with residual current protective device to prevent pedestrian from being injured by electric shocks.
Emergency open The artificial stone tripod turnstile gate access control system equips with emergency escape control device, to make the tripod turnstile quickly drop down the arm to evacuate pedestrian.





Customization



System integration

Integrate with access control system, human body temperature measurement system, ticketing system, time attendance system, visitor system etc.

Integrate with card collection system, and customize card collection device.

Integrate with QR code, face, fingerprint, ID/IC card, passport identification system etc.
Appearance Cabinet size, material and surface treatment process etc. of turnstile can be moderately customized.
