AS/NZS 1576 Kwikstage Scaffolding Standard

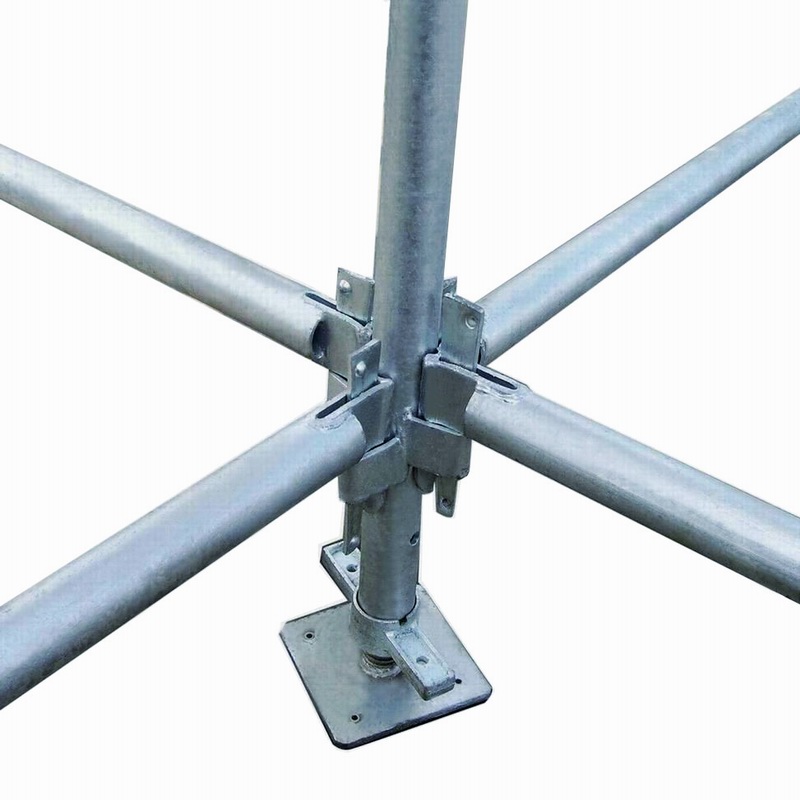

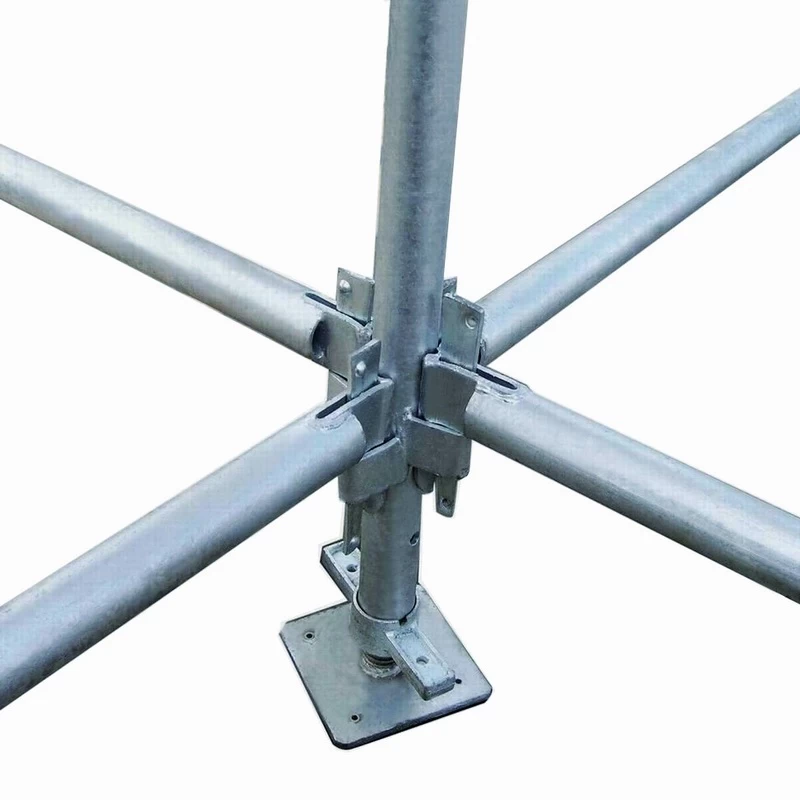

Australian Kwikstage System Scaffolding vertical post is made by O.D. 48.3mm x 4mm thickness high quality steel tubing which can provides safety and heavy duty support for scaffolding, and complies to AS/NZS 1576 requirements.


Kwikstage Scaffolding Main Componenets: Standard (Vertical), Ledger (Horizontal), Diagonal Brace (Bay Brace), Transom, Ladder Access Transom, Return Transom, Plank, Toe Board, Stairway, Brick Guard (Mesh Panel), Gate Standard, Trim Standard, Hop Up Bracket, Hop Down Bracket, Tie Bar, Base Jack, U-head Jack, and so on.

Facebook Twitter Pinterest LinkedIn 分享

Advantages of Kwikstage Scaffolding:

* Safety: Provides safe V-lug connections of high degree of rigidity to scaffold; High load rating and high degree of rigidity;Provides safe guardrails, mesh panels, toe boards and anti-slip planks for the working platform.Provides high load capacity for shoring.

* High efficiency: High speed of erection and dismantling; High degree of standardisation and modular components.

* Easier: No loose fittings, easy for storage and transportation; Gravity wedges pin locking can avoid human error and simplify erection and dismantling; Easily fit to various layout and height.

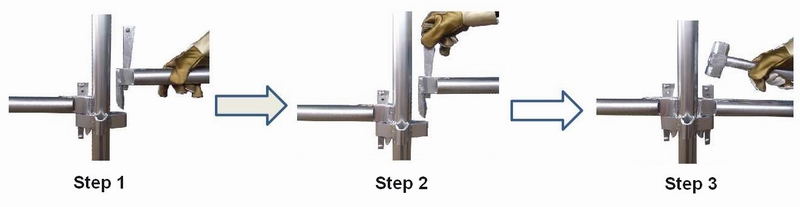

Kwikstage Scaffolding Erecting Instruction:

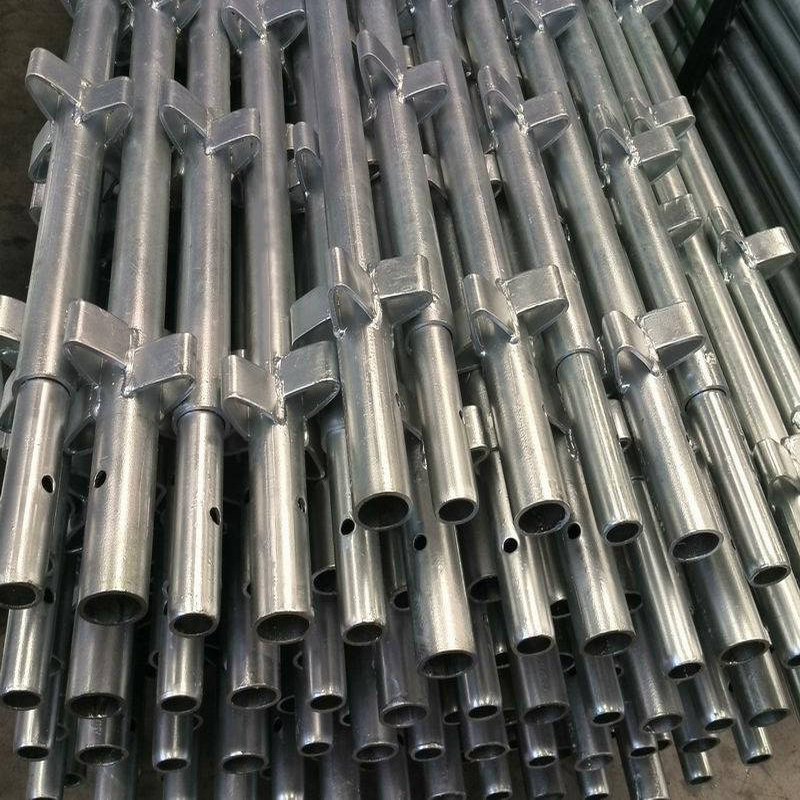

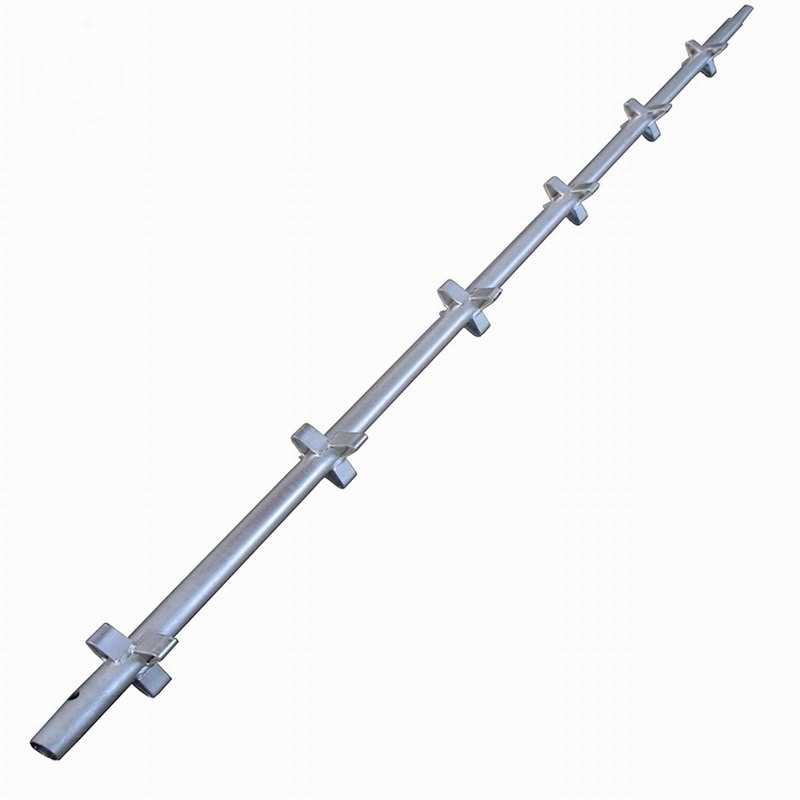

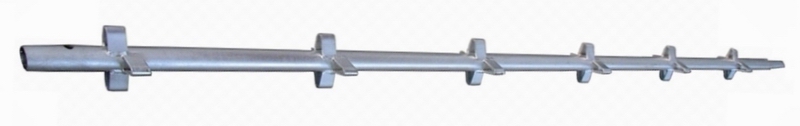

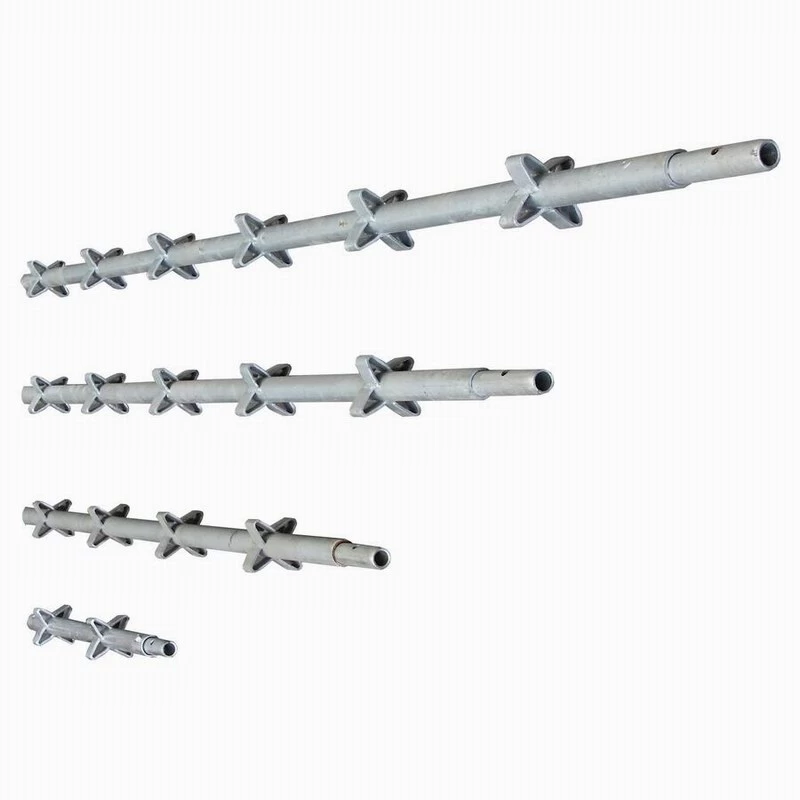

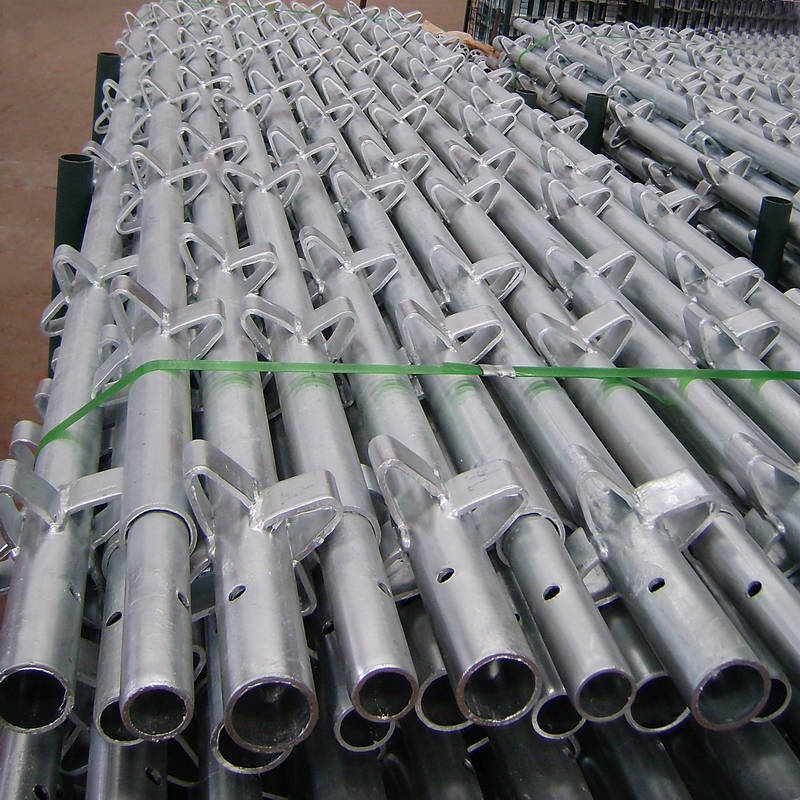

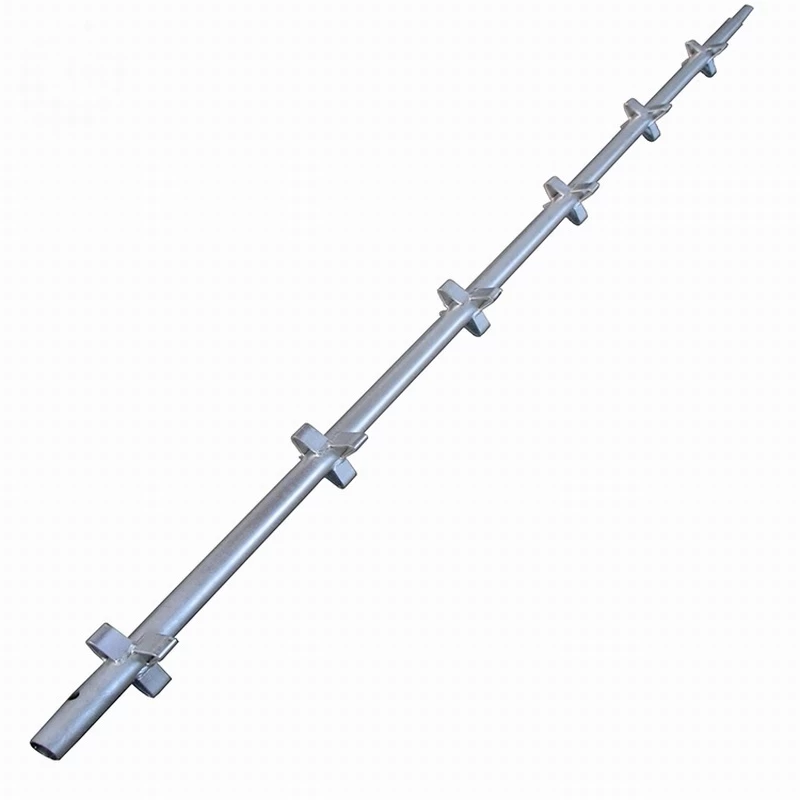

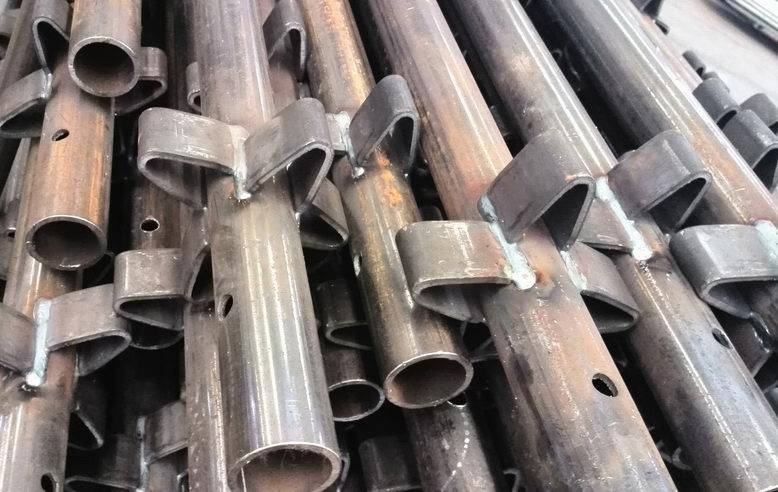

Kwikstage Scaffolding Vertical / Standard, Spigot Jointed (for Australia)


Product Details:

Code Description Material Size Weight (kg) Weight (lbs)
KS.S.400 4.0M Standard Ø48.3x4.0mm; Q235-Q355 3960mm (13') 23.04  50.80
KS.S.350 3.5M Standard 3465mm (11'4") 20.24  44.63
KS.S.300 3.0M Standard 2970mm (9'9") 17.45  38.48
KS.S.250 2.5M Standard 2475mm (8'1") 14.66  32.33
KS.S.200 2.0M Standard 1980mm (6'6") 11.87  26.17
KS.S.150 1.5M Standard 1485mm (4'10") 9.08  20.02
KS.S.100 1.0M Standard 990mm (3'3") 6.29  13.87
KS.S.050 0.5M Standard 495mm (1'8") 3.50  7.72
KS.S.022 0.22M Top Standard 220mm (8.66") 1.59  3.51




Features:

Tube Dimension: O.D 48.3x4.0mm. Other tube thickness 3.5mm/3.25mm/3.0mm is also available by request.

Spigot Size: O.D 38x3x265mm

Steel Tube Grade: Q235-Q355

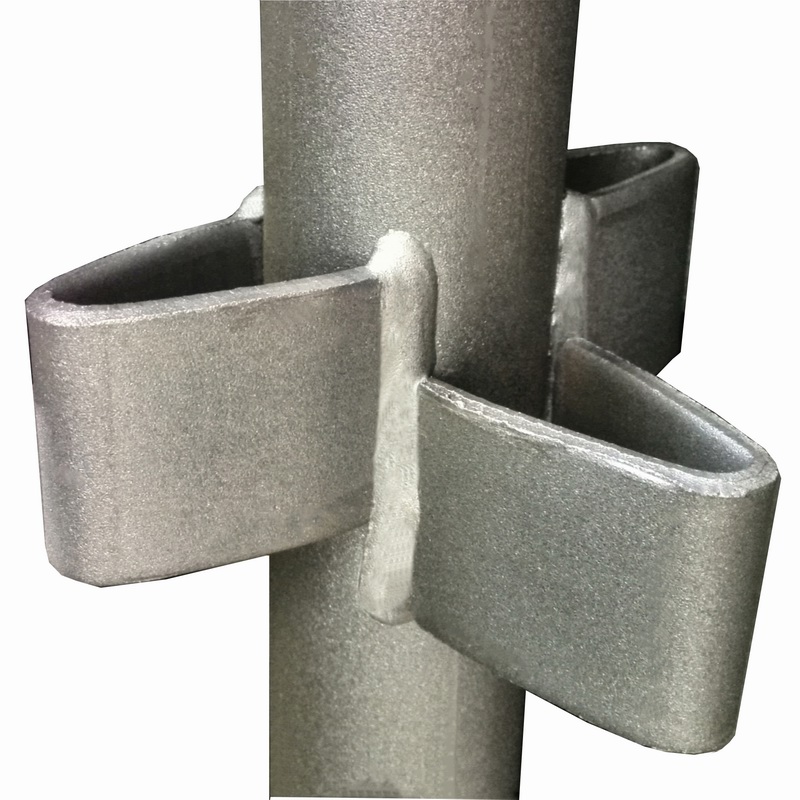

V-lug Distance: 495mm

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted


Quality Standard: AS/NZS 1576


Welding Process: CO2/Mixture Gas Shielding Welding

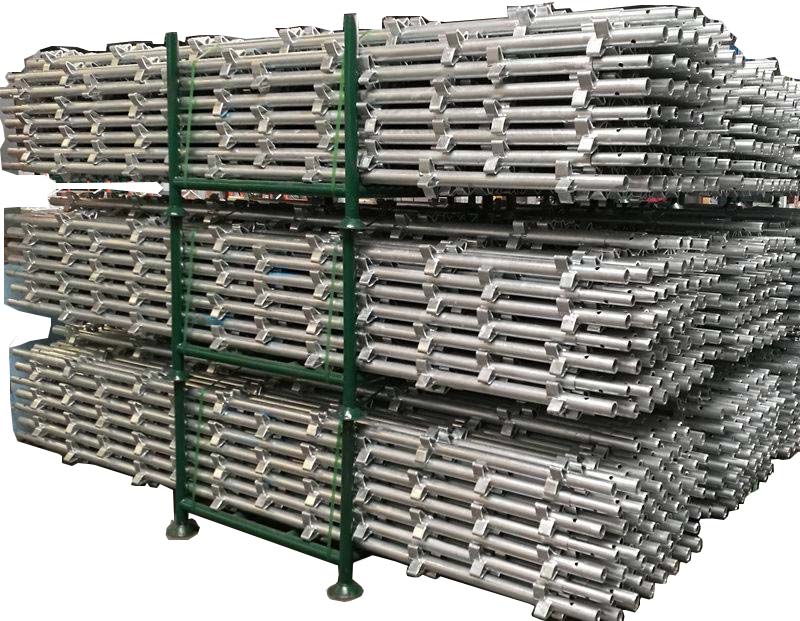

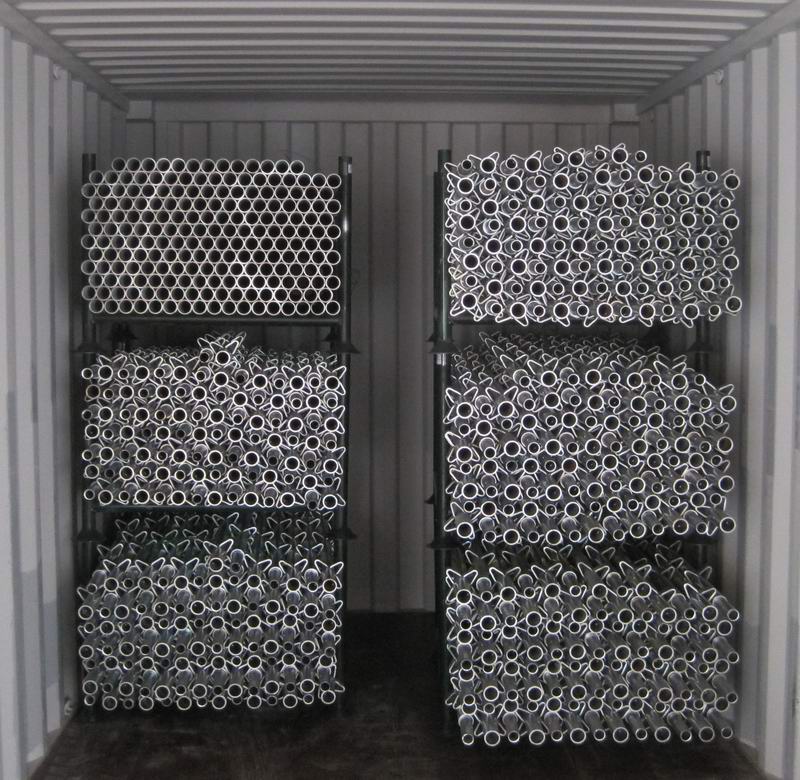

Kwiksatge Scaffolding Packing and Loading:
