AS/NZS 5000.2 BVVB Flat TPS Twin and Earth Electrical Wire and Cables
PRODUCTS NAME

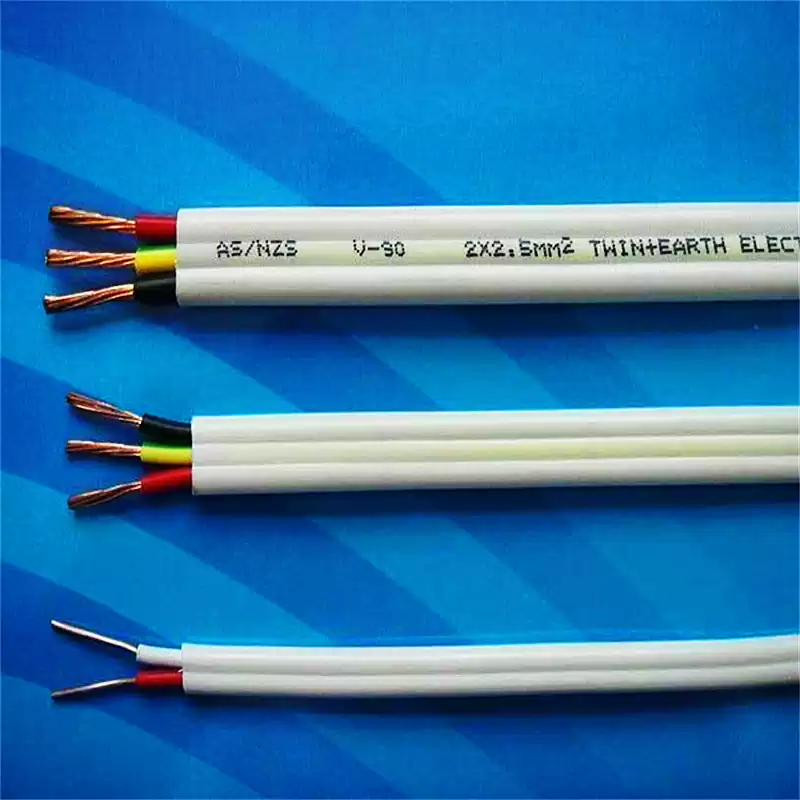

AS/NZS 5000.2 BVVB Flat TPS Twin and Earth Electrical Wire and Cables.
PRODUCTS KEYWORDS
AS/NZS 5000.2, Australian Cables, BVVB, flat tps cable, flat twin cable, flat twin and earth cable, twin & earth cable, pvc flat cable, pvc insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION
AS/NZS 5000.2 BVVB Flat TPS Twin and Earth Electrical Wire and Cables. For general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage.
Compared with IEC 60227 and BS 6004 standard products, it mainly has the following differences:
① colour of insulation and sheath.
② material of insulation & sheath.
③ working temperature.
④ conductor structure.
⑤ structure and color of earth wire.
⑥ sheath surface.
⑦ voltage rated..
PRODUCTS STRUCTURE

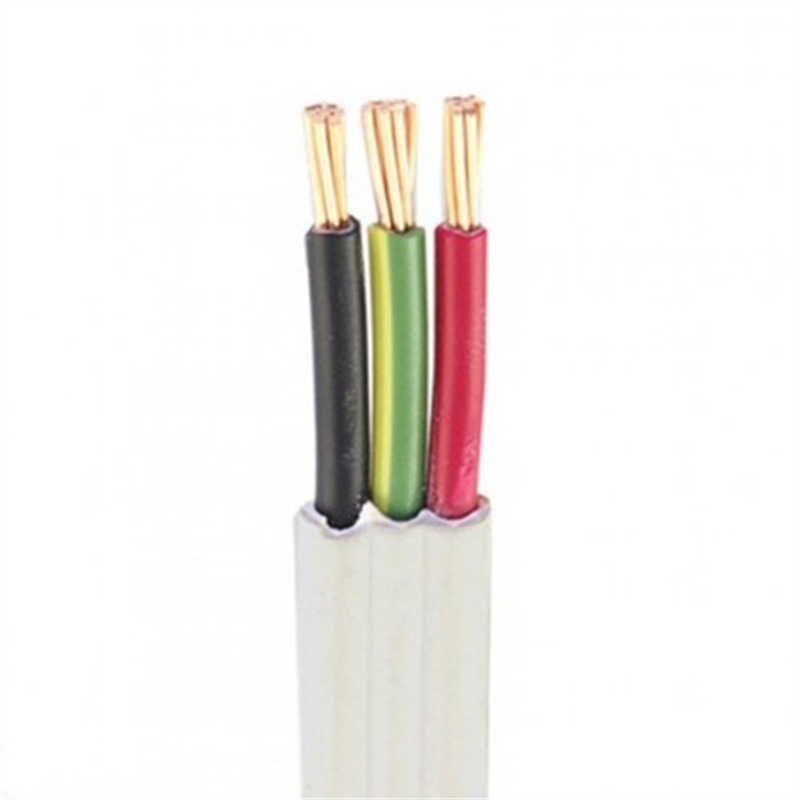

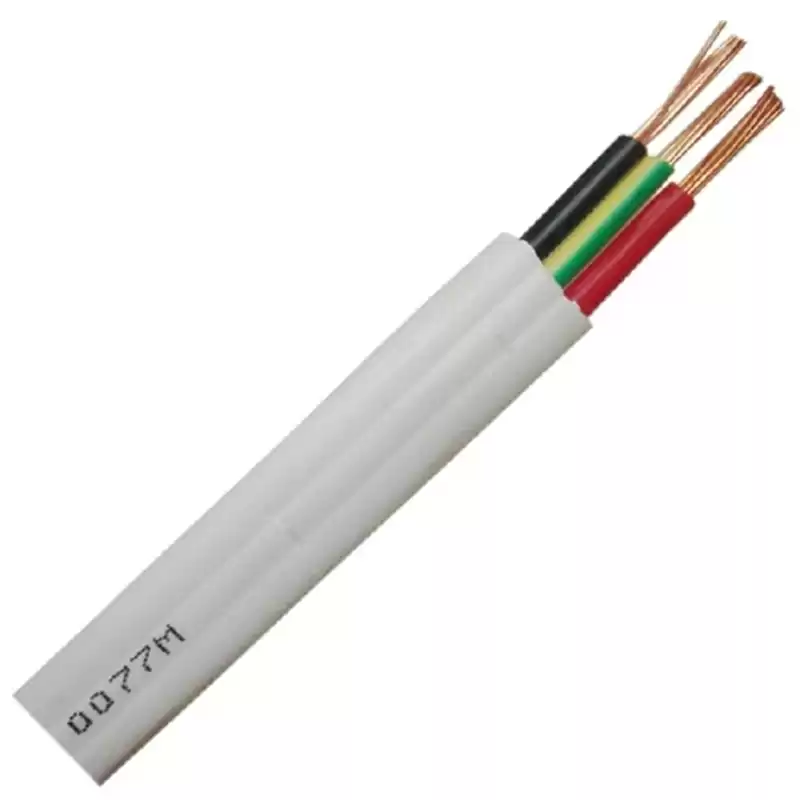

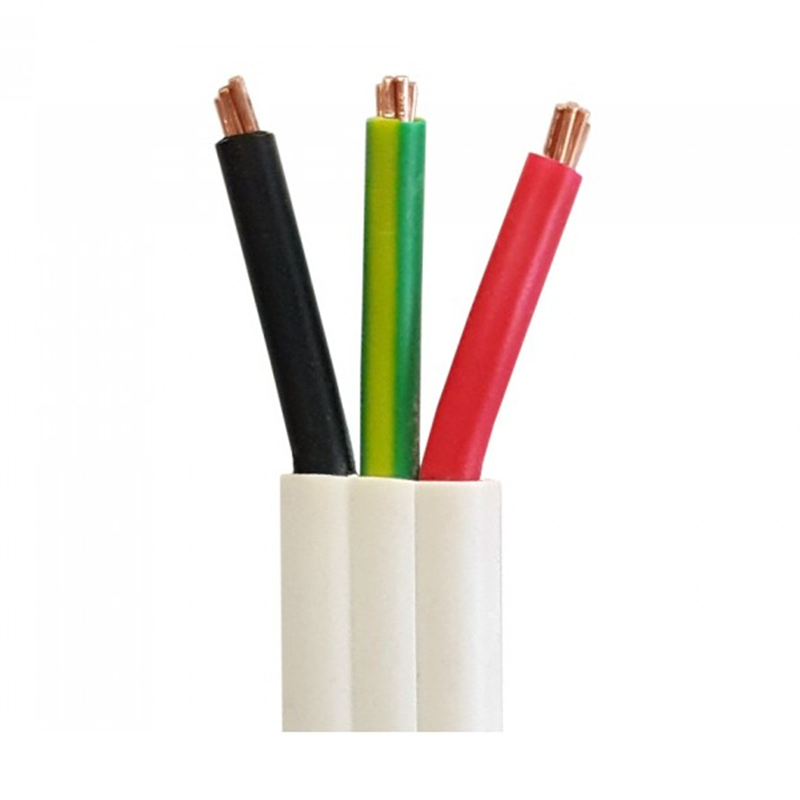

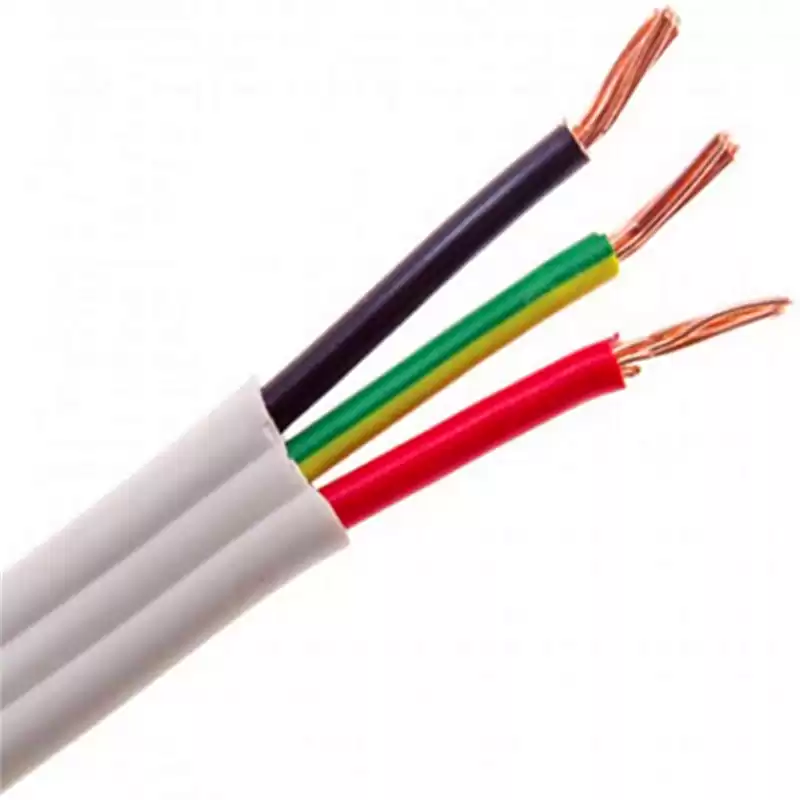

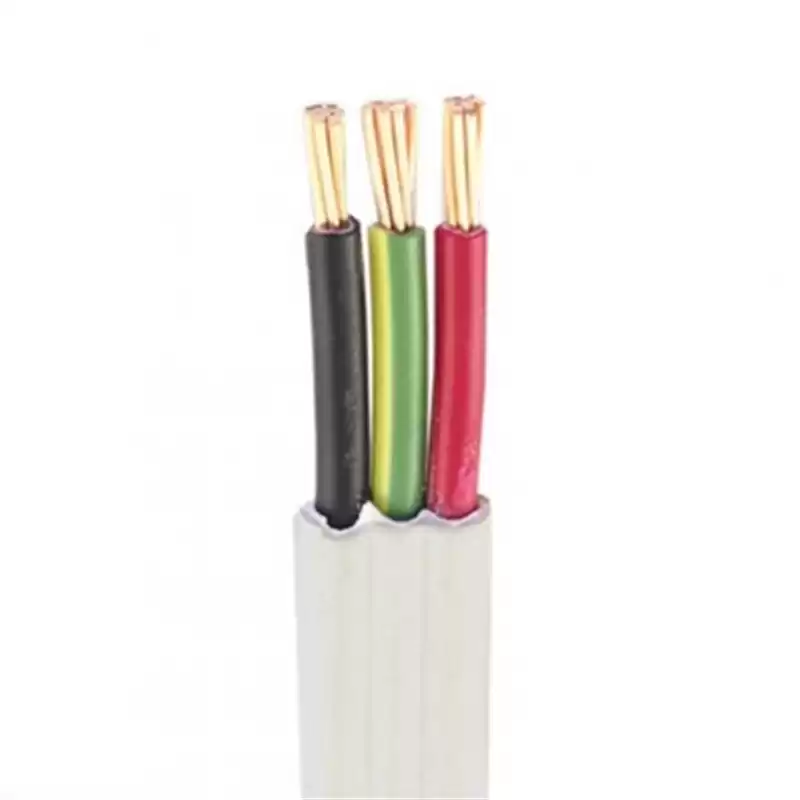

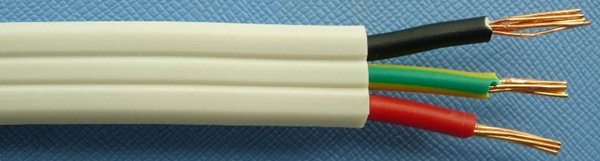

AS/NZS 5000.2 BVVB Flat TPS Twin and Earth Electrical Wire and Cables, the structure as below:
---Conductor Material
Plain annealed copper wire, solid Class 1, or stranded Class 2.
1.0 mm2: solid Class 1; 1.5-16 mm2: stranded Class 2.
---Insulation Material
V-90 PVC (polyvinyl chloride).
---Earth Conductor
Plain annealed copper wire, solid Class 1, or stranded Class 2.
1.0 mm2: solid Class 1; 1.5-16 mm2: stranded Class 2.
---Sheath Material
3V-90 Easy-tear PVC (polyvinyl chloride).
---Products Surface
Flat, it is not groud and circular.
aPRODUCTS DIMENTIONS
|
Description of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
AS/NZS 5000.2 BVVB Flat TPS Twin and Earth Electrical
Wire and Cables.
|
|
Conductor Material
|
Plain annealed copper wires, solid Class 1, or stranded Class 2.
1.0 mm2: solid Class 1; 1.5-16 mm2: stranded Class 2.
|
|
Conductor Structure
|
2C x 1/1.78 mm.
|
|
Insulation Material
|
V-90 PVC (Polyvinyl Chloride).
|
|
Insulation Thickness
|
0.7 mm.
|
|
Insulation Colour
|
Red, black.
|
|
Earth Conductor Material
|
Plain annealed copper wires, solid Class 1, or stranded Class 2. 1.0-2.5mm²: Class 1 solid copper; 4-16mm²: Class 2
stranded copper.
|
|
Earth Conductor Structure
|
1C x 1/1.78 mm.
|
|
Earth Insulated Material
|
V-90 PVC (Polyvinyl Chloride).
|
|
Earth Insulated Thickness
|
0.7 mm.
|
|
Earth Insulated Colour
|
Yellow/Green.
|
|
Sheath Material
|
3V-90 Easy-tear PVC (Polyvinyl Chloride).
|
|
Sheath Thickness
|
1.0 mm.
|
|
Sheath Colour
|
White.
|
|
Conductor Cross-section
|
2 x 2.5 + 1 x 2.5 mm2.
|
|
Core Number
|
2C + Earth.
|
|
Out Diameter
|
Max.: 12.2 x 5.4 mm.
|
|
Voltage Rate
|
450/750V (U0/U).
|
|
About Net Weight
|
140 kg/km.
|
|
Production Standard
|
AS/NZS 5000.2-2006.
|
|
Production Packing
|

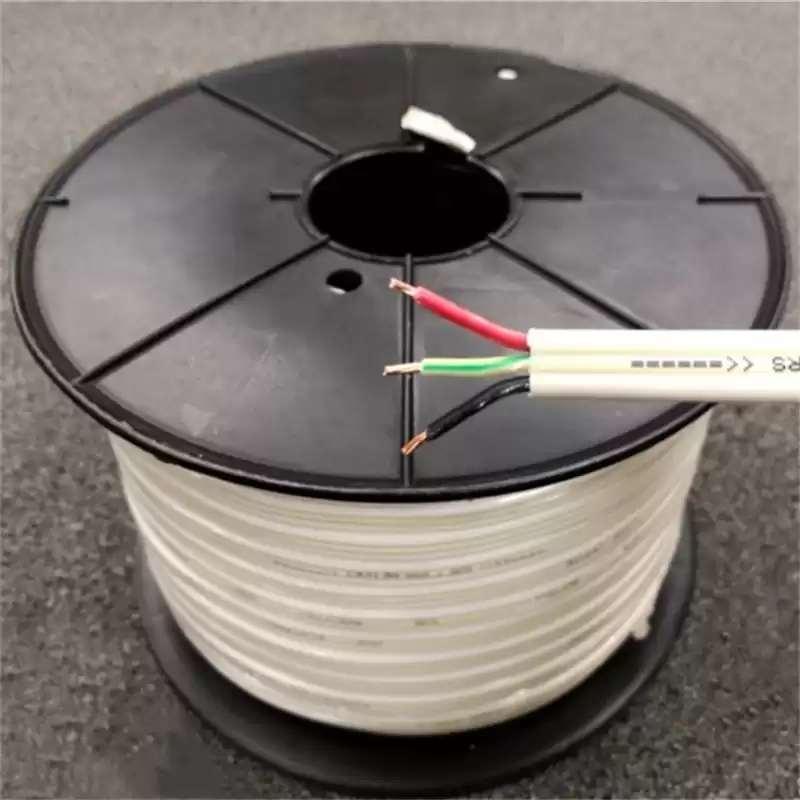

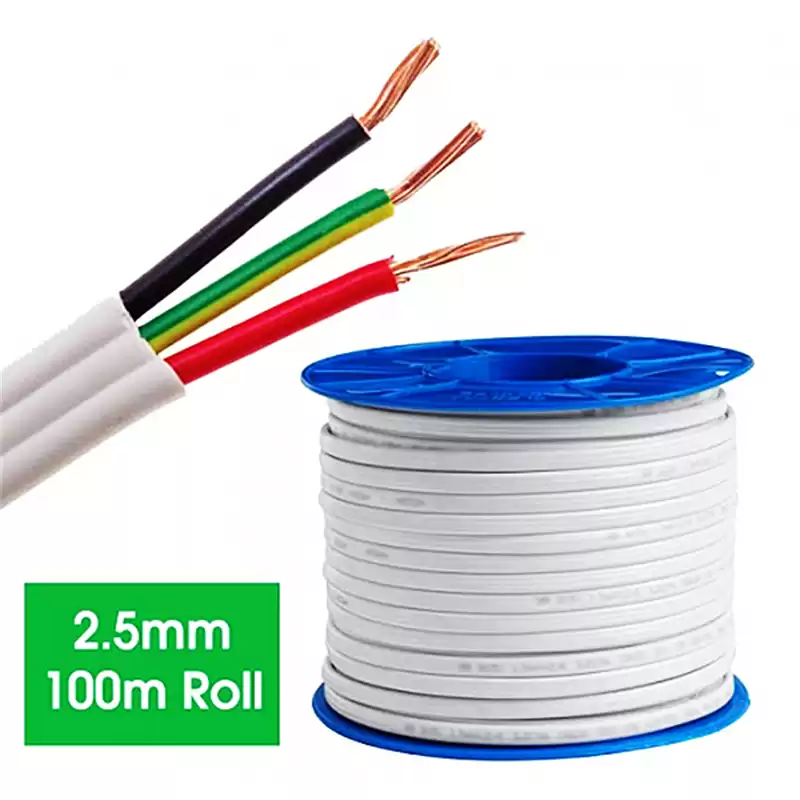

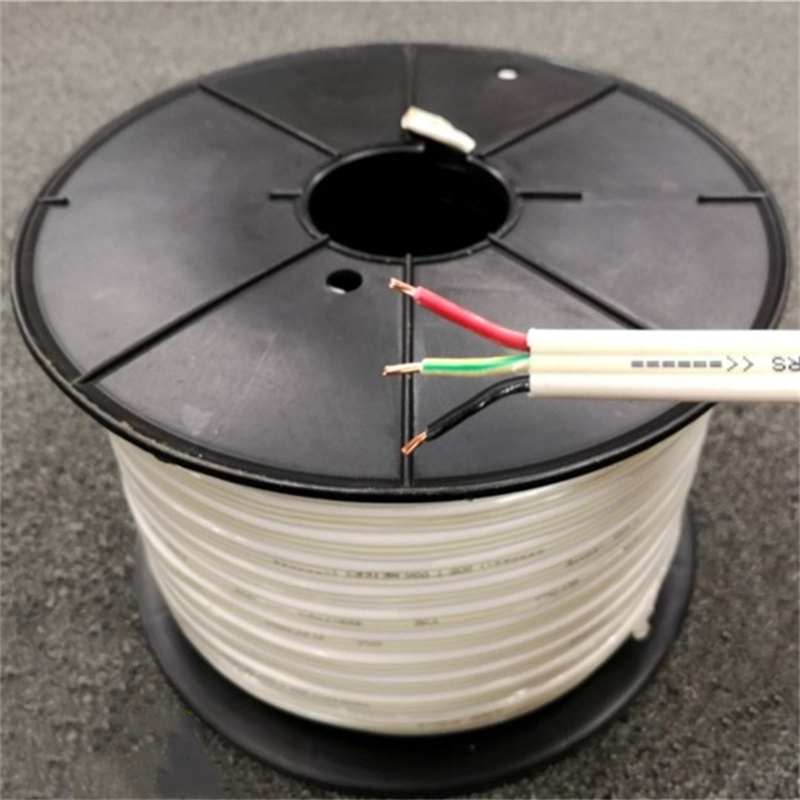

100 Meters per roll, 100 meters per plastic reel.
|
|
Max. Conductor DC Resistance at 20℃ in Air
|
7.41 Ω/km.
|
|
Min. Insulated
Resistance at 70℃
|
0.010 MΩ.km.
|
|
Max. Ampacity
at 40 ℃ in air
|
27A.
|
