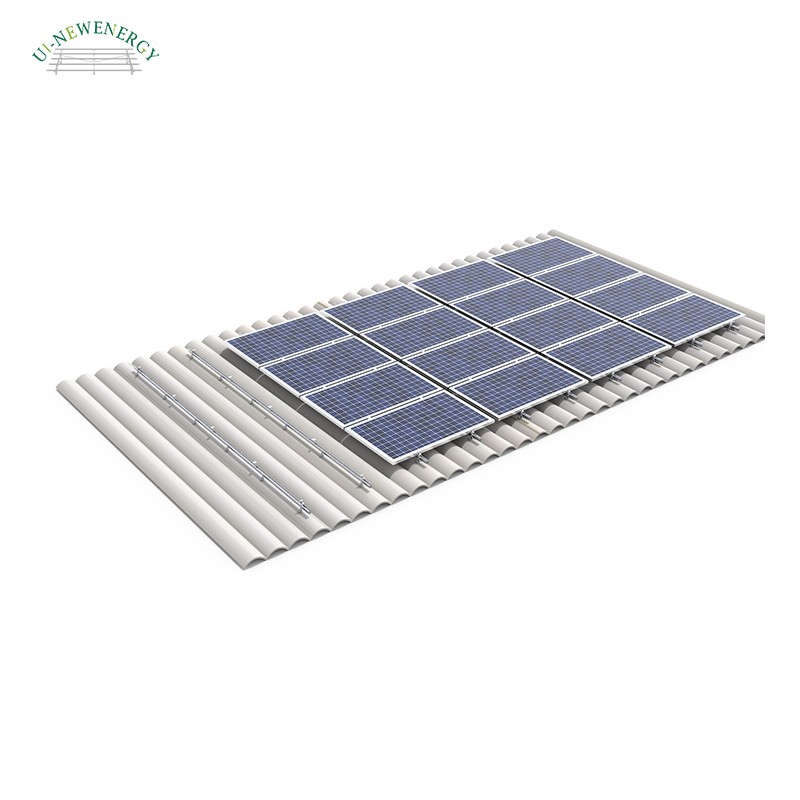

Asbestos Tile Roof Solar Mounting System SR-L-02
Asbestos tile roof mounting is designed with great flexibility for both commercial and residential roof solar system. Patented and innovative rail design ,standard components ,highly pre-assembled clamps ,all the above make the installation simple .save your time and your installation cost.
Asbestos Tile Roof Solar Mounts Features:

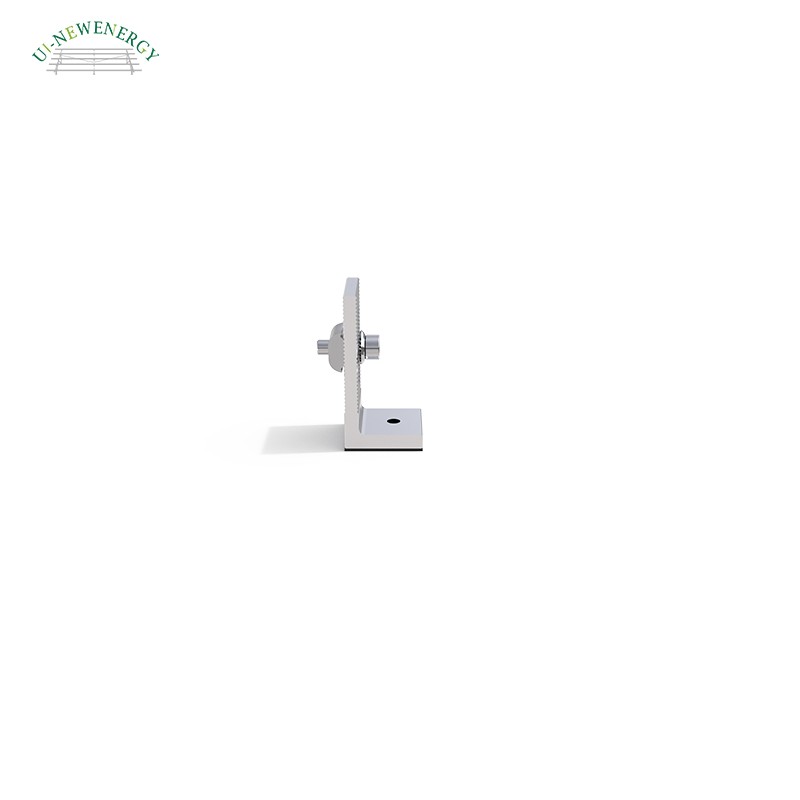

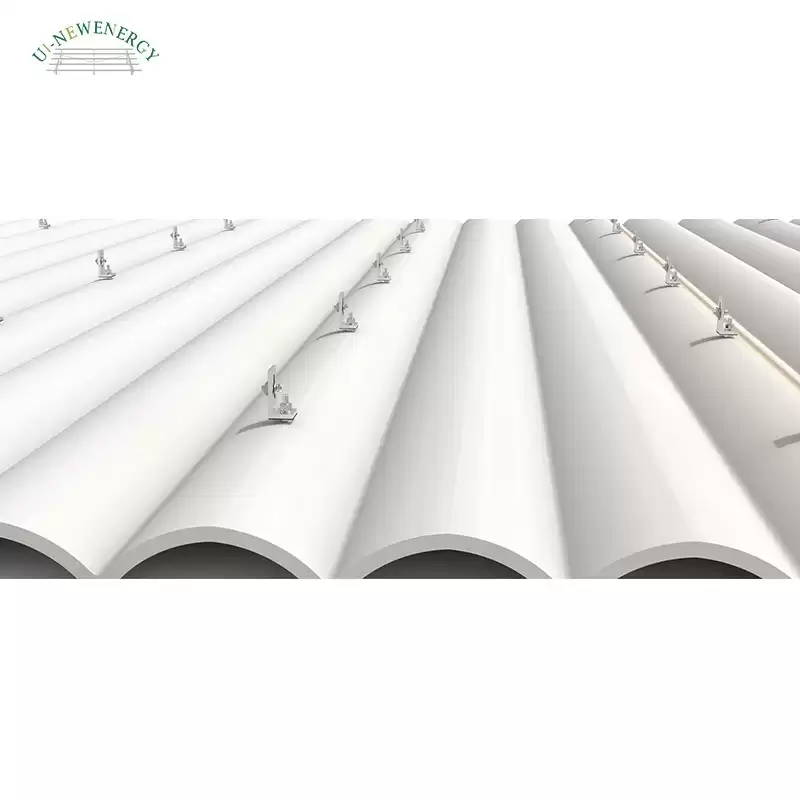

1. L feet do not hurt the metal roof.

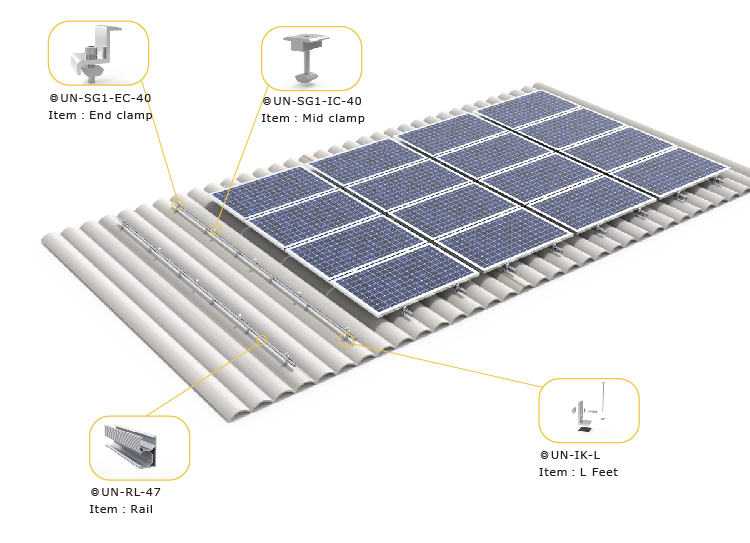

2. Three parts only, save 40% installation time at least.
3. Easy to mount with unique nut and concise design.
4. Anti-corrosion and rust-resistance.
|
Product Parameter
|
|
Product Name
|
Asbestos Tile Roof Solar Mounting
|
|
Installation
Site
|
Asbestos Tile Roof
|
|
Material
|
Aluminum 6005-T5 & Stainless Steel 304 Bolt Sets
|
|
Surface
|
Anodized
|
|
Color
|
Silver or Customized
|
|
Module Angle
|
10-30 Degrees
|
|
Wind Speed
|
60m/s
|
|
Snow Load
|
1.4kN/m2
|
|
Standard
|
AS/NZS 1170; JIS
C8955:2017
|
|
Warranty
|
10 Years
|
|
Service Life
|
25 Years
|
|
Advantages
|
Easy
Installation; Safety And Reliability; 10-Year Warranty
|
F A Q
Q1:Are you a factory or trading company?
A1: We are a factory in China, specializing in solar mounting system project planning and aluminum profile customization and processing.
Our product are solar ground structures, solar carport, solar farm, ground screw and related components ect.
Q2: Where is your factory located? How can I visit there?
A2: Our factory is located in Xiamen city, Fujian province,China.
You can fly to Xiamen Gaoqi International Airport directly, all our clients, from home or abroad, are warmly welcome to visit us.
Q3: How does you factory do regarding quality control?
A3: "Quality is priority" we always attach great important to quality controlling from the beginning to the very end.
Q4: How can I get some samples？
A4:We are honored to offer samples according to your inquiry.
Q5:What necessary info. for us to design and quote？
1.What is your pv panels dimension?_____mm Length x_____mm Width x____mm Thickness
2.How many panel are you going to mount? _______Nos.
3.Do you have any special requirement on ground/flat roof clearance?
4.May I know the tilt angle you need?________degree
5.What is your planned pv assmebly block? ________Nos. in a row,___rows
6.How is weather there, such as wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load.
