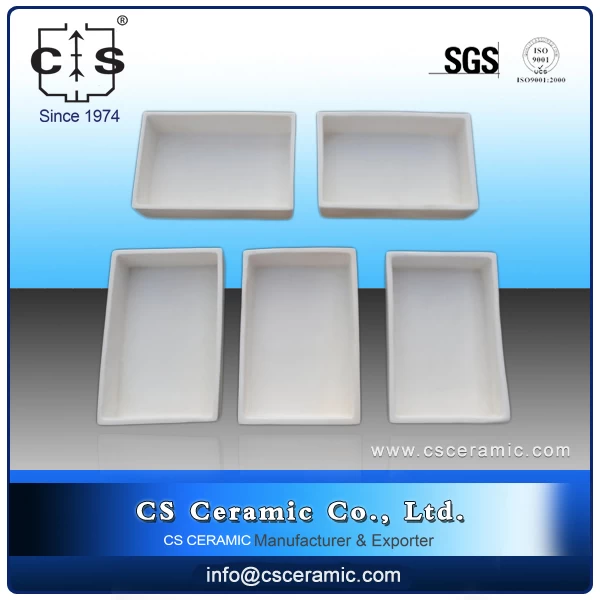

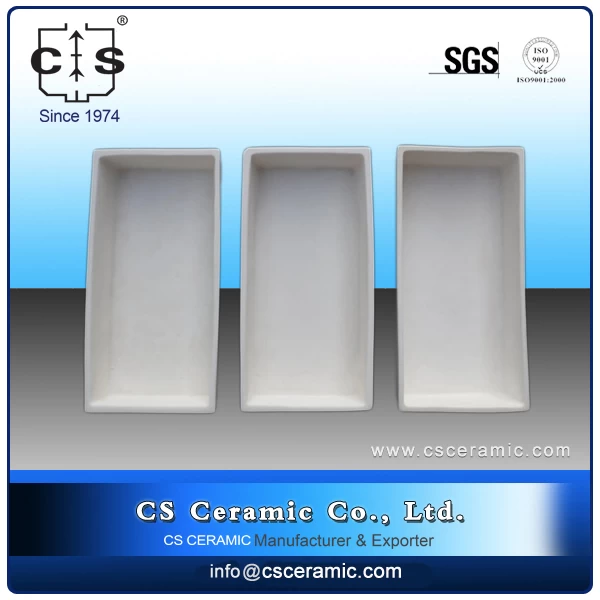

Ash Crucible for Fusion Determinator And Melting Test

1.High purity ceramic,good corrosion resistance.
2.Good thermal shock,no easy to crack.
3.High slip casting density


  • Ship wayby express/air/sea
  • Materialceramic
  • DescriptiionCeramic Porcelain Ash Crucible
  • Size60mm length

Product Item: Ash Crucible for Fusion Determinator And Melting Test - lab porcelain consumable


Product size:


Item NO.

Rim length

 (mm)

Bottom length

(mm)

Rim breadth

(mm)

Bottom breadth

 (mm)

Height

(mm)

CS-213 60 52 30 22 15

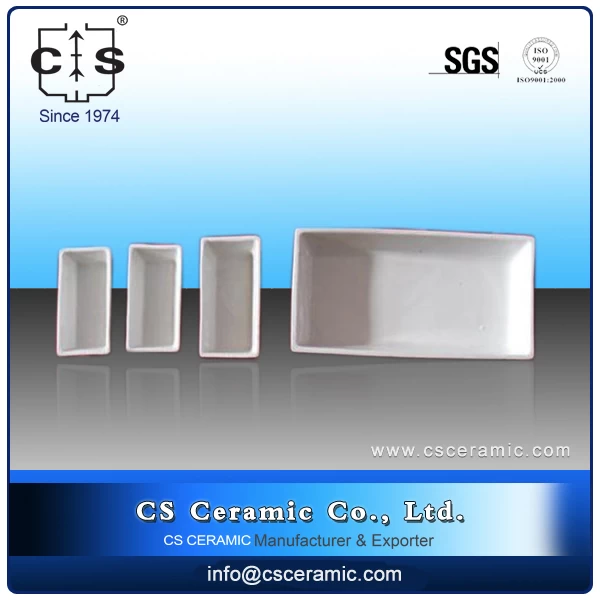

More dimension of Ceramic Ash Crucibles:

Item NO.

Rim length

 (mm)

Bottom length

(mm)

Rim breadth

(mm)

Bottom

breadth (mm)

Height

(mm)

CS-211 50 42 28 20 10
CS-212 50 42 28 20 15
CS-213 60 52 30 22 15
CS-214 75 65 35 25 15
CS-215 90 80 60 50 18
CS-216 90 80 65 55 18
CS-217 120 110 60 50 18
CS-218 120 110 65 55 18

Advantage:
1.High purity ceramic,good corrosion resistance.
2.High temperature resistance,1200C.
3.Good thermal shock,no easy to crack.
4.High slip casting density


Special offer:     Most of our crucibles are produced to order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
