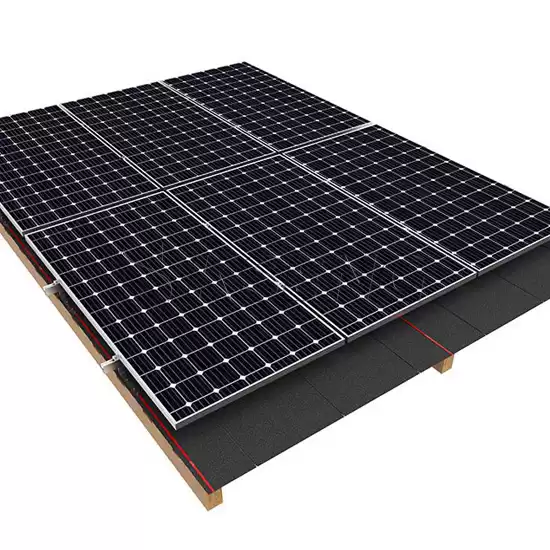

Asphalt Shingle Roof Solar Mounting System
The KS-RH-011 plain tile roof hook is a breakthrough in solar mounting system of solar asphalt shingles, which solves a series of problems in installation of asphalt shingle roofs. It provides a simple, practical and economical rectification plan for the idle roof.The asphalt shingle roof solar mounting system is a side-mounted mounting system, fast installation, saving cost and time, high efficiency. The safest system is to use plain tile roof hooks to fix the roof installation system.
.Asphalt shingle roof supports are lightweight and reduce the difficulty of transportation.
.Each roof is designed with suitable hooks, which can be selected according to bottom installation or side installation.
. the KS-RH-011 plain tile roof hook can be adjusted according to height adjustment or left and right adjustment.
.Environmental protection, it is durable and recyclable.
|
Material:
|
Aluminum 6005-T5& SUS 304 Stainless Steel
|
|
Application:
|
Asphalt Shingle Roof
|
|
Standard:
|
AS/NZS 1170
|
|
Certification:
|
ISO9001/UL/CE/SGS
|
Pv Modules:
|
Framed or Frameless
|
Anti-Corrosive:
|
Anodized
|
Warranty:
|
10 Years
|
|
Service Life:
|
25 Years
|
|
Components:
|
Plain Tile Roof Hook, Aluminum Nut, Bolt M8*25, Wooden screw ST6.3*80mm, R006 Solar Rail, Rail Splice, Mid Clamp, End Clamp
|
-

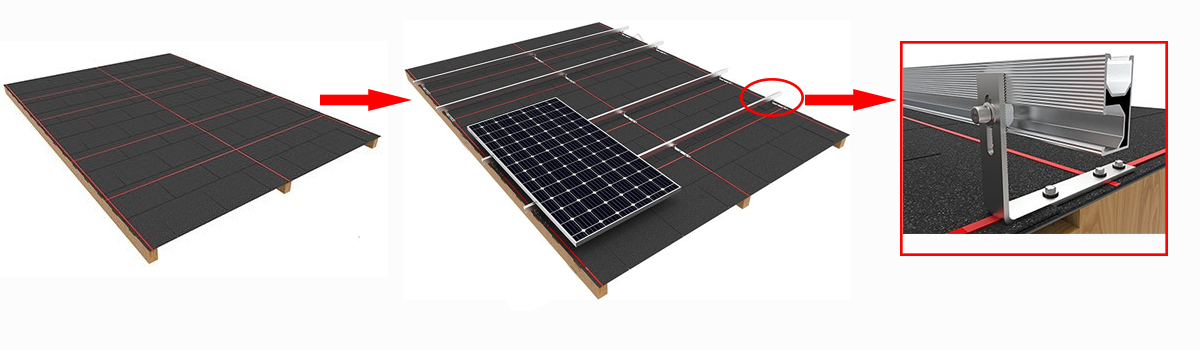

Use wooden screws ST6.3*80mm to nail the KS-RH-011 plain tile roof hooks to the asphalt roof.
-

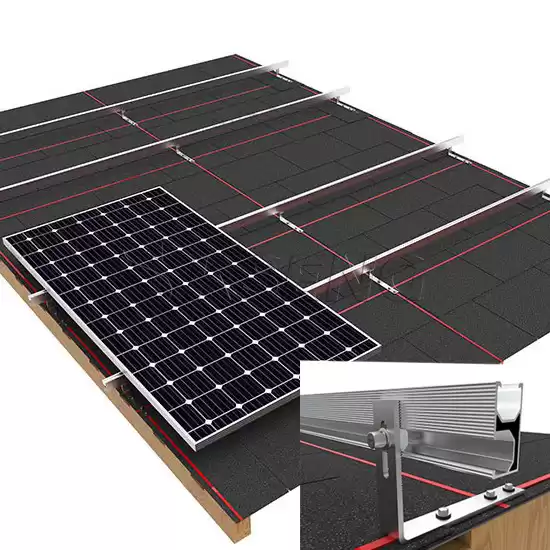

The aluminum rail is fixed on the roof by the asphalt shingle hook.
-

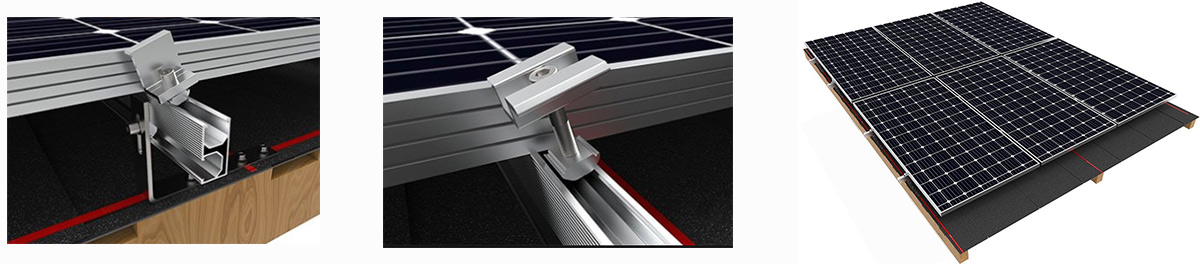

the photovoltaic panel is installed on the aluminum rail, use mid clamp and end clamp to secure photovoltaic panel to solar rail.
