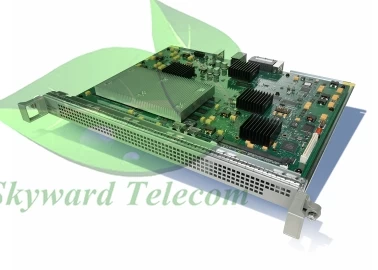

ASR1000-ESP20 Overview
The Cisco ASR1000-ESP20 forwarding performance will vary depending on features configured. Up to 4 Mpps for the combination of the following commonly-used features: IPv4 forwarding, IP Multicast, ACL, QoS, Reverse Path Forwarding (RPF), load balancing, and Sampled NetFlow.
This ASR1000-ESP20 is similar with the ASR1000-ESP20=. The ASR1000-ESP20= is a spare one.
ASR1000-ESP20 Specification
|
Performance
|
|
Up to 25 Mpps
|
Variable
forwarding performance, depending on features configured
|
|
Bandwidth
|
|
Up to 20
Gbps
|
For the
combination of commonly used features + Firewall or NAT
|
|
Shared
by all Cisco ASR 1000 SIP (ASR1000-SIP10) cards
|
|
Up to 9.2 Gbps
|
For plain
IPsec encryption (1400-byte packets)
|
|
Scaling
|
|
Access control
|
Up to
4,000 unique ACLs and 100,000 ACEs per system
|
|
Broadband
|
Up to
32,000 sessions and 16,000 L2TP tunnels
|
|
IP
|
Up to:
|
|
● 4,000,000
IPv4 or 4,000,000 IPv6 routes
|
|
Multicast:
100,000 routes and 4,000 groups
|
|
QoS
|
Flexible
number of queues per system:
|
|
● Up
to 128,000 queues
|
|
● Three
levels of hierarchy
|
|
● Two
LLQ queues per policy, with up to 4,000 policies
|
|
8-kbps
policing and queuing granularity
|
|
<100-microsecond
latency for high-priority applications
|
|
Real-time traffic
|
Up to
4,000 CRTP sessions
|
|
Security
|
Up to:
|
|
● IPsec:
8,000 tunnels
|
|
● Firewall
or NAT: 2,000,000 sessions and 200,000 sessions-per-sec setup rate
|
|
● Carrier-Grade
NAT: 4,000,000 sessions
|
|
L3VPN
|
Up to
8,000 VRF instances
|
|
GRE
|
Up to
4,000 tunnels
|
|
Cisco Unified Border Element (SP Edition)
|
Up to
64,000 sessions (each session represents a complete voice call with 14 SIP
messages per call; that is, two call legs on the SBC consisting of two media
legs for a bidirectional media flow and seven SIP messages per call leg)
|
