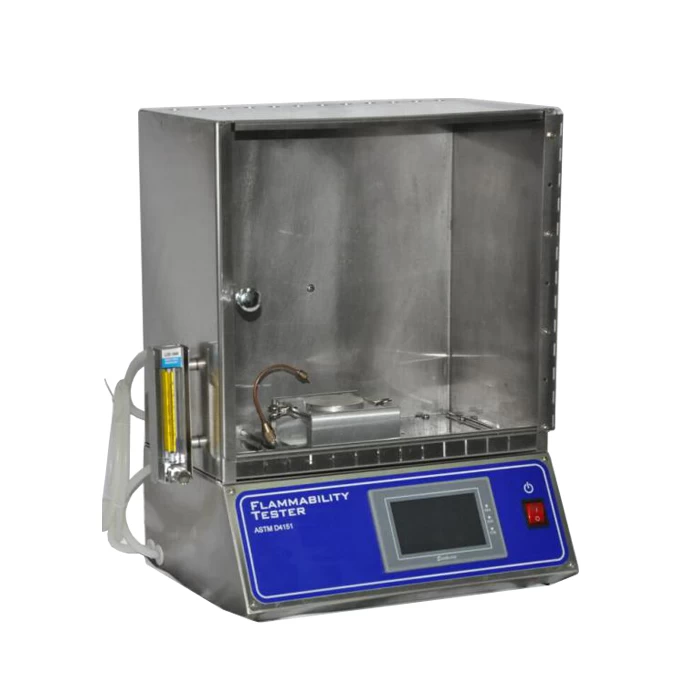

ASTM D4151 Blanket Burning Tester GT-C200

Blanket Burning Tester is suitable for Flame retardancy of bed linings including bed sheets, blankets, mats on mattresses, pillows, duvets and similar products used to cover the bed.



ASTM D4151 Blanket Burning Tester GT-C200


Product Introduction

Application:

Blanket Burning Tester is suitable for Flame retardancy of bed linings including bed sheets, blankets, mats on mattresses, pillows, duvets and similar products used to cover the bed.



Standards:

ASTM D4151-18

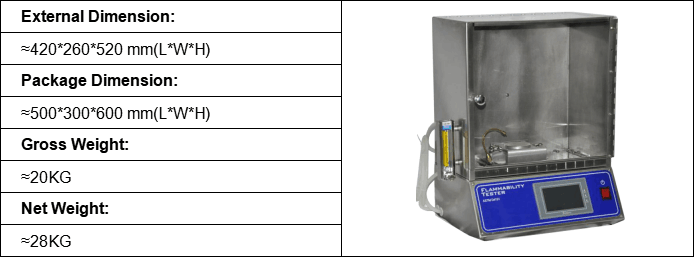

Dimensions

Blanket Burning Tester GT-C200


Principle

In the specified device. Place the processed sample horizontally. Put a piece of paper with a central hole in the surface.Use prescribed methane ignition source ignition and burning on the surface of the blanket on a piece of paper.



Key Specifications



Model

GT-C200

Control method

Touch screen control

Test chamber

37cmX22cmX35cm,12 vent hole which diameter is 12.7mm

Ignition time

1S

Sample holder

Inner hole 2.5’(63.5mm)

Position of ignition

Inner hole of sample holder

Test paper

75mmx90mm,inner 50mm round hole

Length of flame

16mm

Distance between nozzle & specimen

8mm

Fire mouth end off center

3.2mm

Brush load

75±10gf

Size of specimen

70mmx70mm

Power supply

1∮ AC 220V 50Hz 3A

Dimensions

42x26x52cm (L x W x H)

Weight

20kg

Standard Accessories

Sample holder  5pcs

Brushing device  1pc

Power line  1pc



Applications Industry

All kinds of Bed Linings can be tested on the Blanket Burning Tester GT-C200
