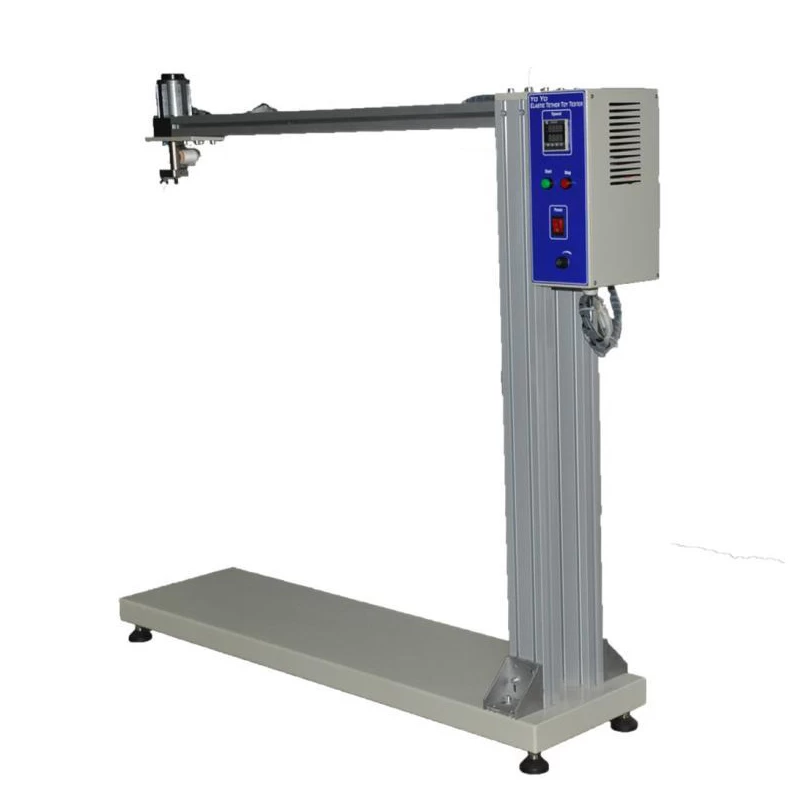

AT09 ASTM YO-yo Ball Tester
Application of ASTM YO-yo Ball Tester
ASTM YO-yo Ball Tester is used for testing the elongation performance of yo - yo ball elastic rope toy.
Testing Principle of ASTM YO-yo Ball Tester
Install the elastic rope toy on the fixture of this instrument, then rotate around the axis of rotation at a certain speed, measuring the length of a yo-yo ball under the action of a centrifugal force.
Standards of ASTM YO-yo Ball Tester
ASTM F963 section4.37, 8.23
Key Specification of ASTM YO-yo Ball Tester
|
Model
|
AT09 ASTM YO-yo Ball Tester
|
|
Test quantity
|
1pc each time
|
|
Test speed
|
80r/min, stepless speed regulation
|
|
Throat depth
|
100cm
|
|
Rotate mode
|
360 °connection rotation
|
|
Distance from rotate center to fixture edge
|
3cm
|
|
Dimension
|
130x30x120cm
|
|
Weight
|
50kg
|
|
Power supply
|
1∮ AC 220V 3A
|
