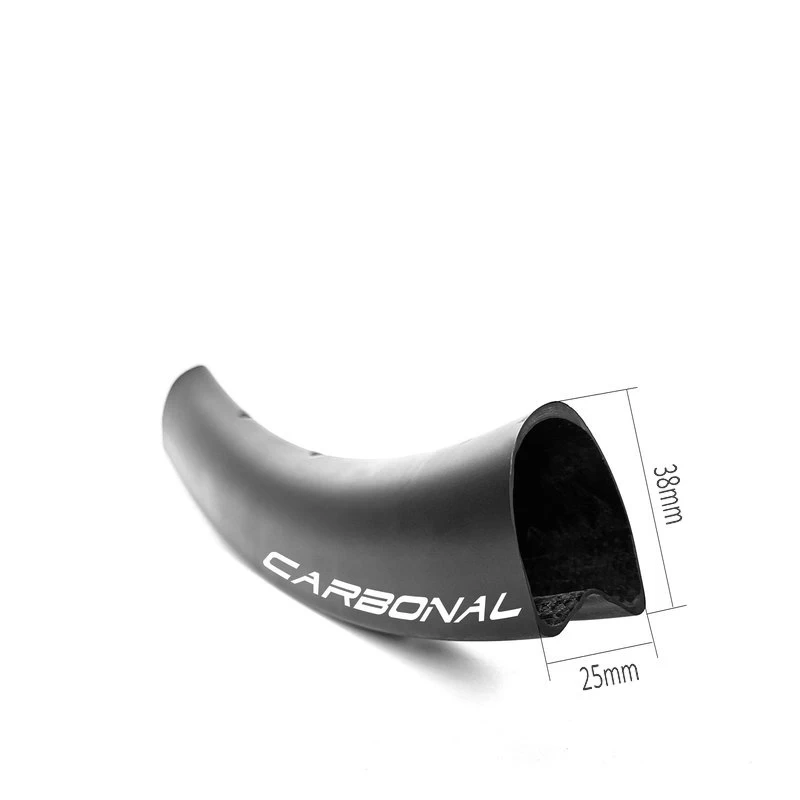

Product Item: Asymmetric 2.5mm offset disc road carbon 38mm deep tubular rim
Constructed with premium Toray T700 & T800 carbon fiber, makes this asymmetric 50mm deep disc road tubular rim light but stiff, build into a lightweight road bicycle disc carbon wheelset.
Specification:
Item:
|
DT38D
|
Use*:
|
road bike
|
Rim type:
|
700C tubular - disc brake
|
Material:
|
Toray T700 & T800 carbon fiber
|
Width:
|
25mm
|
Weight:
|
330g±15
|
Depth:
|
38mm
|
ERD*:
|
569mm
|
Weave:
|
UD, 3k, 3k twill, 6k, marble
|
Finish:
|
Matte, glossy
|
Spoke hole count:
|
16 - 36 or customized
|
Assemble hole diameter:
|
8.5mm
|
Spoke hole diameter:
|
4.5mm / 2.5mm or customized
|
Valve hole diameter:
|
6.5mm
|
Max spoke tension:
|
140kgf (recommended 110~130kgf)
|
Max tire pressure:
|
160psi - read more
|
Decal:
|
None or Customized
|
Weight limit:
|
120kgs
|
Warranty:
|
5 years
|
Standard:
|
EN standard
|
* For cyclocross, we recommend same rim profile item RT38D (360g).
* ERD: we calculate effective rim diameter from the top point of the nipple, learn more here.
Features:
-
Super lightweight, this asymmetric 2.5mm offset 38mm deep tubular road disc rim constructed with premium Toray T700 & T800 carbon fiber, best strength to weight ratio with no expense spared.
-
Asymmetric 2.5mm offset rim profile, balance the spoke tension between the drive and non-drive side.
-
Carbon Strip Reinforcement. Use unique
carbon strip to strengthen the spoke tension and stabilize rim structure
and reduce the rim weight.
-
Smooth Wall Tec. No folded prepreg during curing, smooth both inside and outside rim wall to reduce potential quality issues.
-
Angled
spoke holes allows the nipple to pull straight in line with the spoke
for reduced stress, this results in fewer broken spokes and nipples.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read more about carbon rim quality control here.
