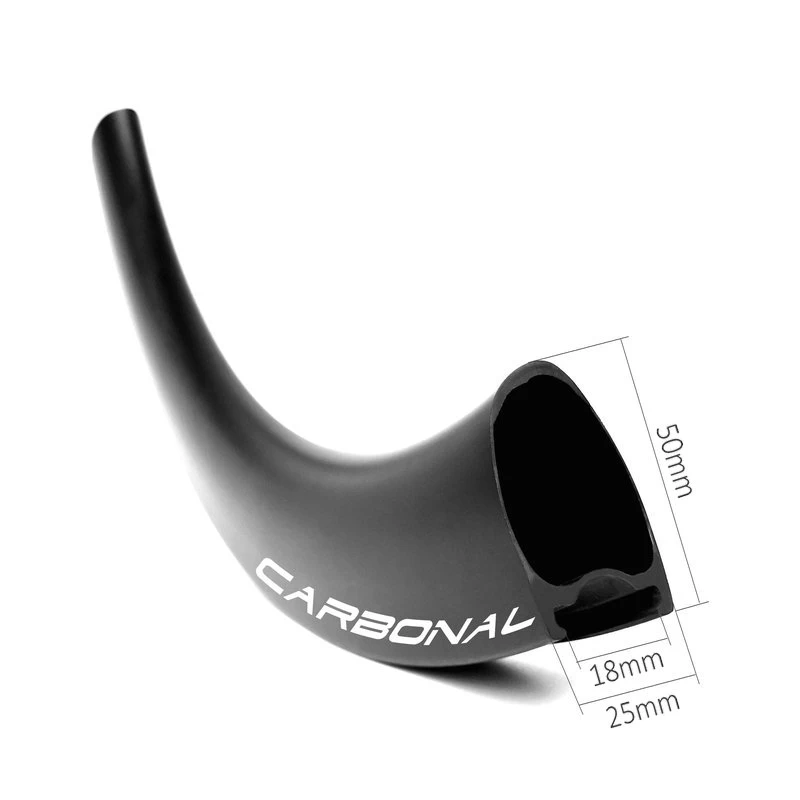

Asymmetric 50mm depth disc carbon rim U shape clincher tubeless ready

Item DX50D, weight 450g, ERD 545mm. Asymmetric rims with offset nipple bed benefit to overall wheel strength by proper balancing of the spoke bracing angles from one flange to the other, build into a lightweight but strong road disc wheel.


  • Max weight limit125kg
  • Max spoke tension140kgf
  • Depth50mm
  • Outer width25mm
  • Inner width18mm
  • ERD545mm
  • Weight450g±20
  • Brakedisc brake
  • Typeclincher (tubeless ready)
  • Materialfull carbon Toray T700 & T800
  • Size700C

Product Item: Asymmetric 50mm depth disc carbon rim U shape clincher tubeless ready

asymmetric disc rim

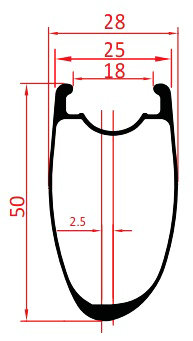

This 50mm clincher tubeless ready rim features an asymmetric 2.5mm offset rim shape. Asymmetric rims with offset nipple bed benefit to overall wheel strength by proper balancing of the spoke bracing angles from one flange to the other, build into a lightweight but strong road disc wheelset.


Specification:

 Item:
 DX50D
 Use:
 road
 Rim type:
 700C clincher - disc brake
 Material:
 Toray T700 & T800 carbon fiber
 Tubeless ready:
 Yes
 Weight:
 450g±20
 External/Internal width:
 25mm / 18mm
 ERD:
 545mm
 Depth:
 50mm
 Weight limit:
 125kgs
 Weave:
 UD, 3k, 3k twill, 6k, marble  see different carbon weaves
 Finish:
 Matte, glossy
 Spoke hole count:
 16 - 36
 Assemble hole diameter:
 8.5mm
 Spoke hole diameter:
 4.5mm / 2.5mm or customized
 Valve hole diameter:
 6.5mm
 Max spoke tension:
 140kgf (recommended 110~130kgf)
 Max tire pressure:
 125psi / 8.6bar
 Decal:
 None or Customized
 Min tire pressure:
 80psi / 5.5bar
 Warranty:
 5 years
 Standard:
 EN standard


Features:

  • This 50mm depth clincher carbon rim is asymmetrical 2.5mm shape where the spoke holes are not centered, but placed out of the middle of this carbon rim, this gives the wheel a more even spoke tension between left and right and therefore a stiffer and longer lasting wheel. Offset rims have advantages with disc wheels and cassette hubs.
  • Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
  • U areodynamic shape makes road tubeless rims lightweight but still stiff, keeping them stable in cross winds condition.
  • Super lightweight, rim constructed with premium Toray T700 & T800 carbon fiber, best strength to weight ratio with no expense spared.
  • Smooth Wall Tec. No folded prepreg during curing, smooth both inside and outside rim wall to reduce potential quality issues.
  • Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.


Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are followed meticulously by the layup workers, it ensures the accuracy of each rim in the production process.


Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.


Warranty Policy:

5 years warranty & 2 years crash replacement.

1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.


More information about our Warranty Policy.


100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.


More about Carbonal carbon rim Quality Control
