General Description

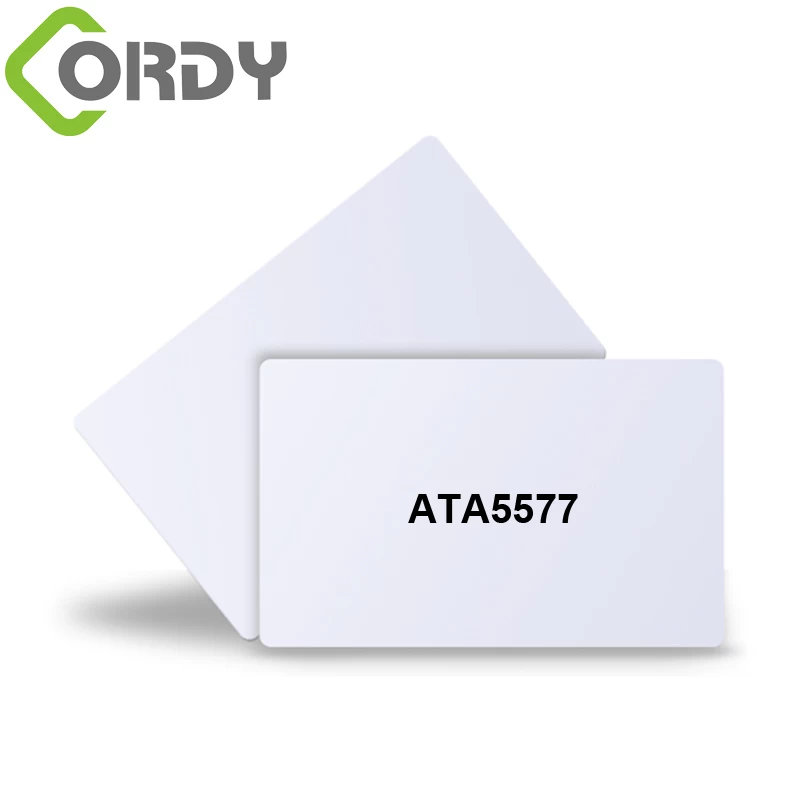

ATA5577 is a contactless read/ write identification IC (IDIC) for applications in 125-kHz or 134-kHz frequency band. A single coil connected to the chip serves as the
IC’s power supply and bi-directional communication interface. The antenna and chip
together form a transponder, or tag.
The on-chip 363-bit EEPROM (11 blocks with 33 bits each) can be read and written
block-wise from a base station (reader).
Data is transmitted from the IDIC (uplink) using load modulation. This is achieved by
damping the RF field with a resistive load between the two terminals Coil 1 and Coil 2.
The IC receives and decodes serial base station commands (downlink) which are
encoded as 100% amplitude modulated (OOK) pulse-interval-encoded bit streams.
Full revision datasheet with enhanced data is available on request. Please contact
your local sales office.
Feature
* High Performance IDIC® (Extended Read/Write Distance)
* Contactless Power Supply
* Contactless Read/Write Data Transmission
* Radio Frequency fRF from 100 kHz to 150 kHz
* Basic Mode or Extended Mode
* Compatible with E5551/T5551, T5557, ATA5567
* Configurable for ISO/IEC 11784/785 Animal and Waste Standards Compatibility
* Total 363 Bits EEPROM Memory: 11 Blocks (32 Bits + 1 Lock Bit)
* On Chip Trimmed Capacitor
* High Q-antenna Tolerance Due to Build in Options
Application
Hotel Key Card
Access Control
Time Attendance
Animal Identification
Waste management standard (BDE)
Programming to EM(Manchester) format or any other format customized
