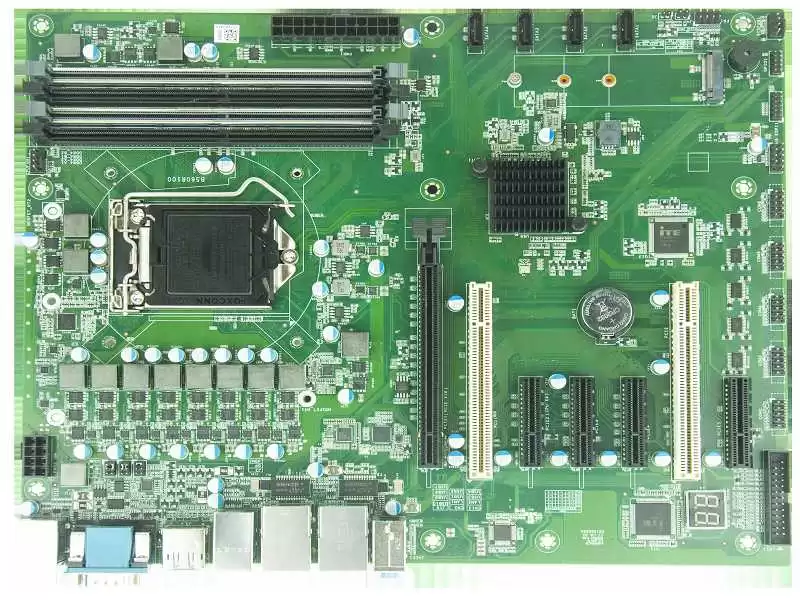

ATX Industrial Motherboard B560 chip 5PCIE 2PCI Expansion

ATX-B560AH26E

ATX Industrial motherboard,Intel@PCH B560 Chip,2LAN 6COM 14USB,7-Slot(5PCIE 2PCI)Expansion, Support LGA1200 10th 11th intel@ core CPU



ATX Industrial Motherboard with 5 PCIE 2PCI Expansion, Support LGA1200 10th 11th intel@core CPU



Product Introduction

All industrial motherboards are designed to provide consistent, reliable performance in harsh and rugged environments. 5 PCIE expansion slots for a wide range of external devices



System
CPU/GPU Support for LGA1200 architecture10th/11th Intel® Core CPU i7/ i5/ i3, Pentium®/ Celeron® CPU
System on Chip Intel@ PCH B560
Memory 4DDR4 DIMM slots, up to 64GB SDRAM
Storage 4 × SATA 3.0, 1 × m.2 NFGG
Sound card Realtek HD Audio
Ethernet 2 x Intel Gigabit network
Graphics Board CPU integrated graphics card
Display VGA,HDMI,DP
USB 8USB2.0 ;6USB3.0
GPIO 8-bit GPIO (4 inputs, 4 outputs)
COM 6COM, 2COM support RS232/422/485

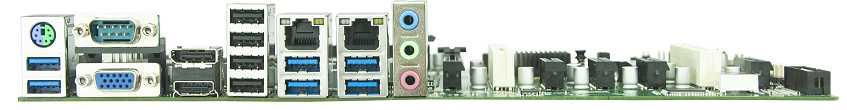

Backplane I / O PS2+2USB3.0, COM+VGA, DP+HDMI, 4USB2.0, 2 RJ45 LAN+4USB3.0, Line-out+Mic-in
Board I / O 4USB2.0 ,  5COM ,  front audio , CLR_CMOS ,  CPU fan power ,  System fan power , GPIO,  Front panel ,  LPT,  24P+8P ATX
Expand 1PCIEx16;2PCI;4PCIEx4(10th CPU only support 3PCIEX4)
System Support WindowsWIN 10WIN 11 ...),Linux



Product Features

■ Support for LGA1200 architecture10th/11th Intel® Core CPU

■ 2 Intel Gigabit network

■ VGA+HDMI+DP display interface

■ 6COM RS232,2COM support RS422/485

■ 8USB2.0, 6USB3.0, 8位GPIO

■ M.2

■ 1PCIEx16; 4PCIEx4; 2PCI expansion

■ 256 bits watchdog





Mechanical & Environmental
Power supply ATX Heat dissipation Fan Size(L×W) 306mm×245mm
Working temperature -15~55 Storage temperature -40~75 Environmental humidity 0~90% air humidity,no condensation
Packing list ATX-B560AH26E motherboard ×1 SATA data wire ×1
COM cable                          ×2  Interface bezel            x1



Product Installation Dimension Diagram





Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
