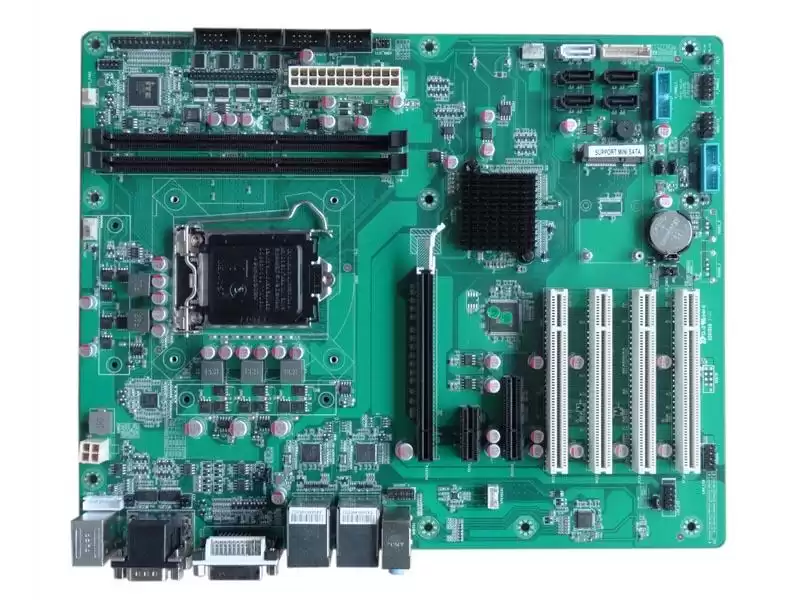

ATX Industrial motherboard B75 Chip with 2LAN 10COM12USB, 7-Slot(4PCI 3PCIE) Expansion

ATX-B75AH2AC

ATX Industrial motherboard, Intel@PCH B75 Chip, 2LAN 10COM 12USB, 7-Slot(4PCI 3PCIE)Expansion, Support LGA1155 2th 3th intel core CPU



ATX Industrial motherboard Intel@PCH B75 Chip with 2LAN 10COM 12USB, 7-Slot(4PCI 3PCIE) Expansion, Support LGA1155 2th 3th intel core CPU



Product Introduction

ATX-B75AH2AC Industrial motherboard support up to seven expansion slots, boast flexible PCIe configurability, and have numerous input/output connectivity options. As a result, with their long product life span, these industrial ATX boards can satisfy all of your organization’s needs. With all its ports mounted on a single circuit board, this is a motherboard that allows for ease of use and quick setup in industrial settings. These applications include image processing, data center communication, AI/machine learning computing, and numerous industrial automation applications.



System

CPU/GPU

Supports LGA1155 architecture 2nd / 3rd generation Intel® Core™ processors i7 / i5 / i3, Pentium® / Celeron® CPU

System on Chip

Intel@ PCH B75

Memory

2 DDR3 DIMM slots, supporting up to 16GB SDRAM

Storage

5 × SATA 3.0, 1 × mSATA

Sound card

Realtek HD Audio

Ethernet

2 x Intel Gigabit LAN,82583 Chip

Graphics Board

CPU integrated graphics card

Display

VGA,DVI

USB

8USB2.0  (Optional 2 x USB upright);4USB3.0

GPIO

8-bit GPIO (4 inputs, 4 outputs)

COM

10COM, 1COM support RS232/422/485

BackplaneI / O

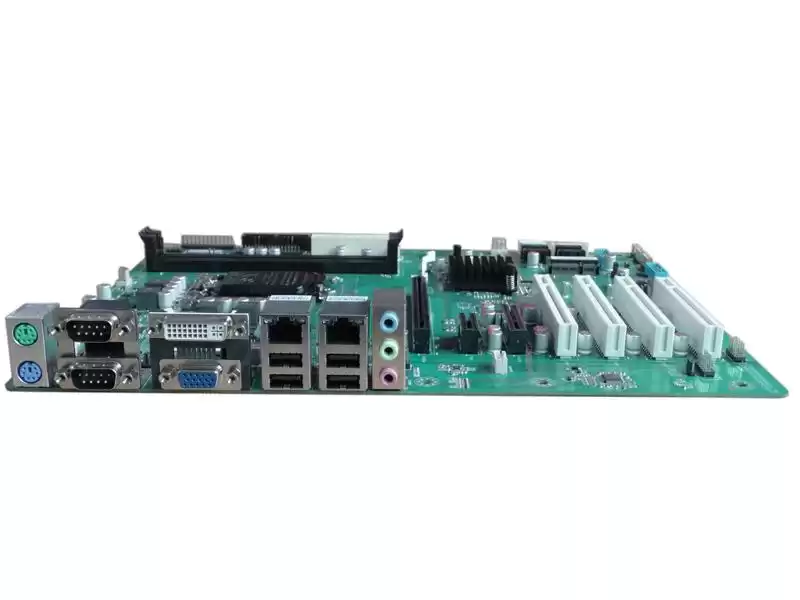

PS2 KB/MS, 2COM,VGA+DVI, 2 RJ45 LAN+4USB2.0, Line-out+Mic-in

BoardI / O

4USB2.0+4USB3.0 , 8COM , front audio , CLR_CMOS , CPU fan power , System fan power , GPIO, Front panel , Speaker, 24P+4P ATX, Print

Expand

1PCIEx16; 1PCIEx4;1PCIEx1;4PCI

System

Support Windows(WINXP,WIN 7,WIN 10 ...),Linux

Mechanical & Environmental

Power supply

ATX

Heat dissipation

Fan

Size(L×W)

306mm×245mm

Working temperature

-15~55℃

Storage temperature

-40~75℃

Environmental humidity

0~90% air humidity,no condensation

Packing list

ATX-B75AH2AC motherboard

×1

SATA data wire

×1

COM line

×2







Product Features

■ Support for LGA 1155 architecture 2nd/ 3rd generation Intel® Core processors

■ 2 x Intel Gigabit LAN

■ VGA, DVI

■ 10COM, 1COM support RS232/422/485

■ 8USB2.0, 4USB3.0

■ 256-bit watchdog

■ 8-bit GPIO (4 inputs, 4 outputs)

■ 1PCIEx16; 1PCIEx4; 1PCIEx1; 4PCI expansion



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
