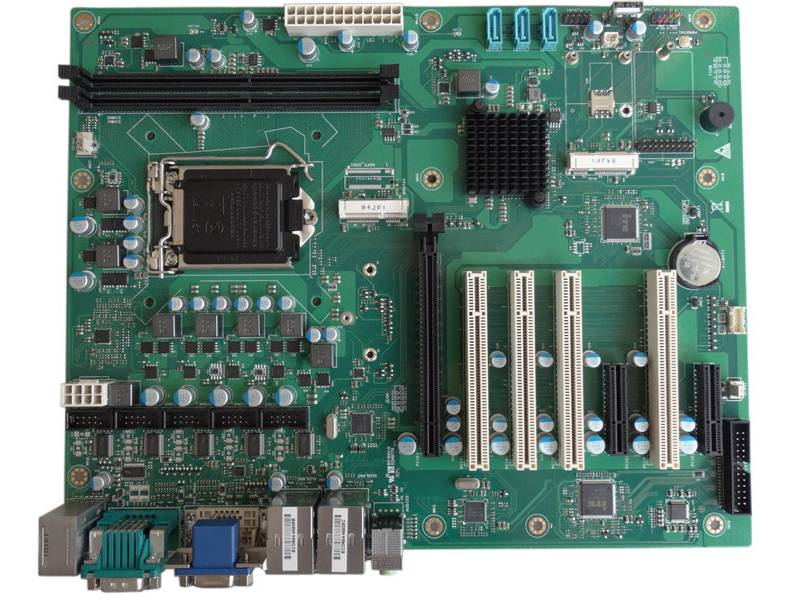

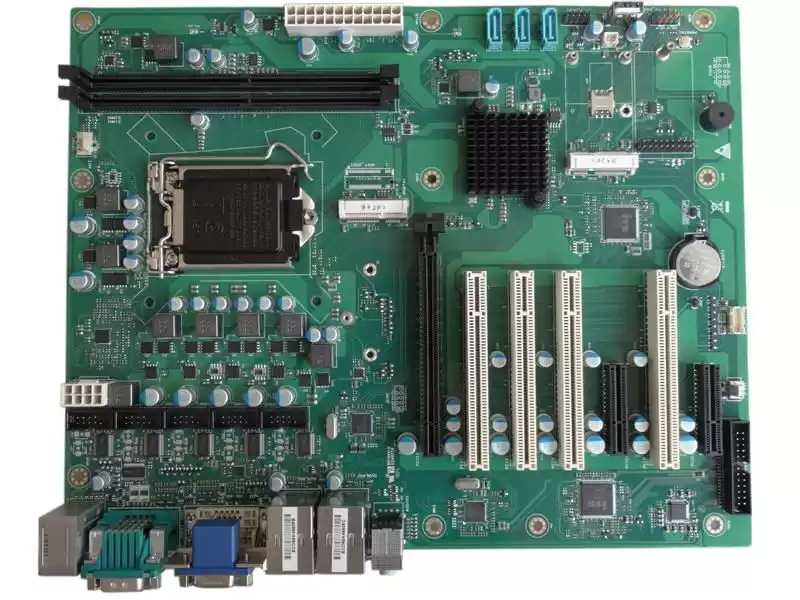

ATX Industrial motherboard Intel® PCH H110 Chip 2LAN/6COM9USB 7-Slot(4PCI)Expansion

ATX-H110AH269

ATX Industrial motherboard,Intel® PCH H110 Chip,2LAN/6COM9USB,7-Slot(4PCI)Expansion



ATX Industrial motherboard Intel® PCH H110 Chip 2LAN/6COM9USB 7-Slot(4PCI)Expansion



Product Introduction

ATX industrial motherboards are usually equipped with a wealth of I/O interfaces, including USB, serial ports, parallel ports, audio interfaces, etc., to meet the connection needs of various devices. This is important for applications such as industrial control and data acquisition.



In order to cope with complex industrial applications, ATX industrial motherboards usually support multi-core processors. This provides higher computing performance, allowing the motherboard to handle multiple tasks simultaneously.



Product Features

■ Support for LGA 1151 architecture 6th/7th/8th/9th generation Intel® Core processors

■ 2 x Intel Gigabit LAN

■ VGA, DVI ,HDMI

■ 6COM RS232,COM1 support RS422/485

■ 4COM can be extended via LPC

■ 5USB2.0, 4USB3.0

■ 256-bit watchdog

■ 8-bit GPIO (4 inputs, 4 outputs)

■ 1PCIEx16; 2PCIEx4;4PCI expansion





System

CPU/GPU

Supports LGA1151 architecture6th/7th/8th/9th generation Intel® Core™processors i7 / i5 / i3, Pentium® / Celeron® CPU

System on Chip

Intel@ PCHH110

Memory

2 DDR4 DIMM slots, supporting up to32GB SDRAM

Storage

3 ×SATA , 1×M.2

Sound card

Realtek HD Audio

Ethernet

2 x Intel Gigabit LAN,82583 Chip

Graphics Board

CPU integrated graphics card

Display

VGA,DVI,HDMI

USB

5USB2.0 ;4USB3.0

GPIO

8-bit GPIO (4 inputs,4 outputs)

COM

6COM RS232,COM1 support RS422/485

BackplaneI / O

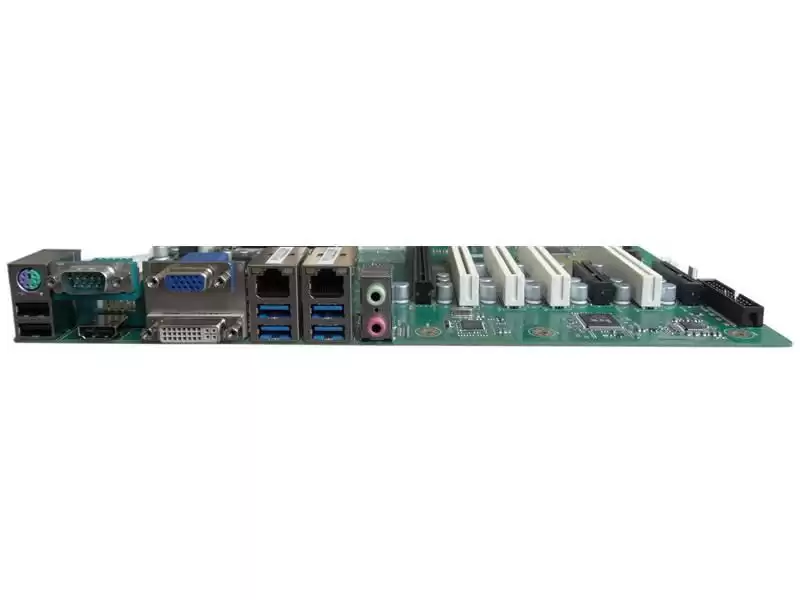

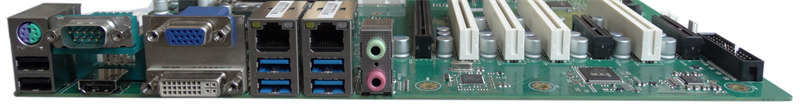

PS2+2USB2.0, COM+HDMI,VGA+DVI, 2 RJ45 LAN+4USB3.0, Line-out/in+Mic-in

BoardI / O

3USB2.0 , 1upright USB, 5COM ,  front audio , CLR_CMOS , CPU fan power , System fan power ,GPIO,  Front panel ,  24P+4P ATX,  Print

Expand

1PCIEx16;2PCIEx4;4PCI;Mini PCIE

System

SupportWindows(WINXP,WIN 7,WIN 10 ...),Linux





Mechanical & Environmental

Power supply

ATX

Heat dissipation

Fan

Size(L×W)

306mm×245mm

Working temperature

-15~55℃

Storage temperature

-40~75℃

Environmental humidity

0~90%air humidity,no condensation

Packing list

ATX-H110AH269 motherboard

×1

SATA data wire

×1



COM line

×2
