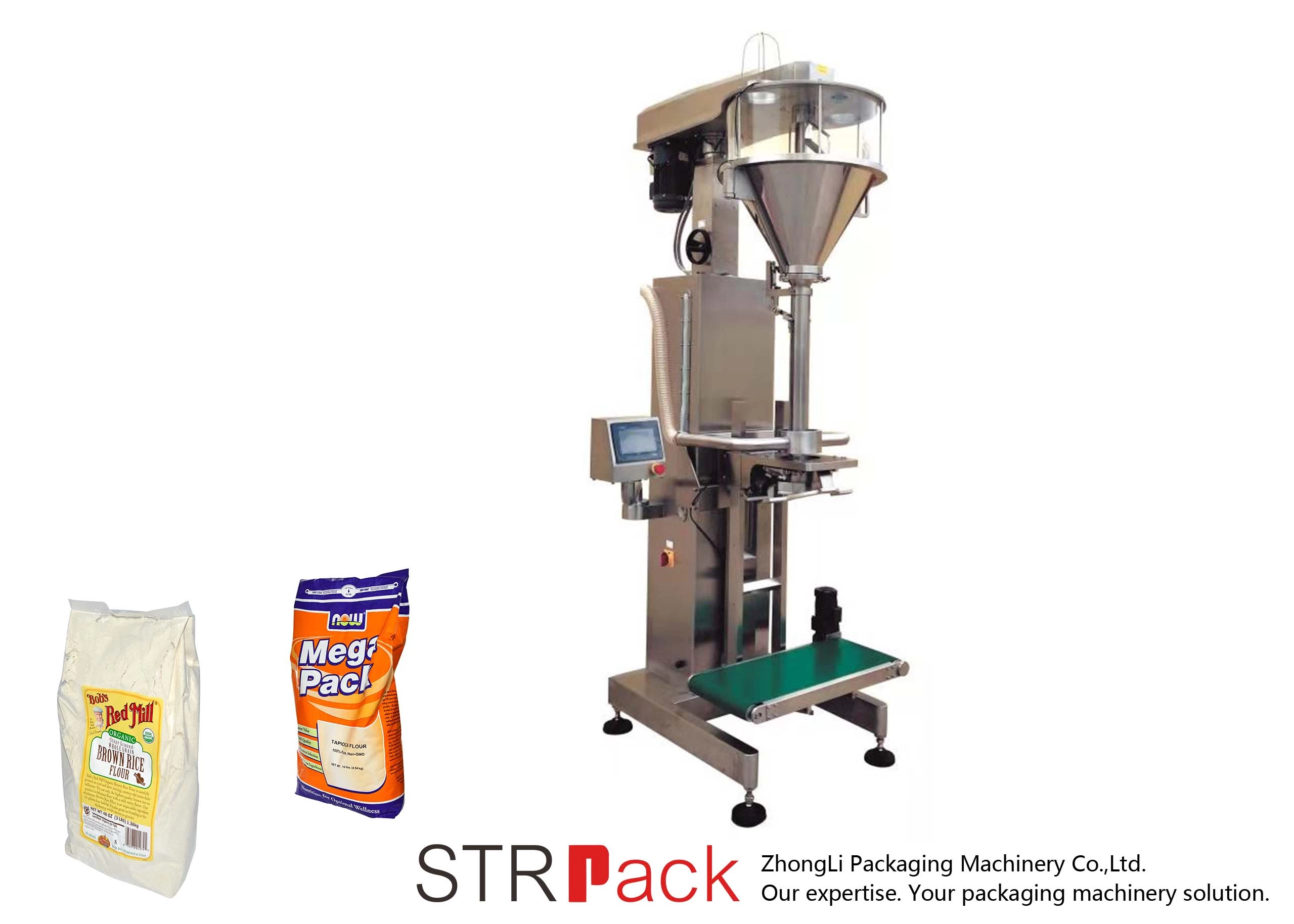

Auger Powder Filling Machine With Online Weigher
Brief Introduction:
Auger Powder Filling Machine with online Weigher series packing machines can handle
weighing, filling functions etc. Featured with real-time weighing and filling
design these machine can be used to pack high accuracy required, with uneven
density, free flowing or non free flowing powder or small granule. I.e. Protein
powder, food additive, solid beverage, sugar, toner, veterinary and carbon
powder etc.
Features:
Stainless steel structure;Quick
disconnecting or split hopper could be washed easily without tools.
Servo motor drive screw.
Pneumatic bag clamper and platform equip with load cell to handle two speeds filling
as per preset weight.Featured with high speed and accuracy weighing system.
PLC control, touch screen display, easy to operate.
Two filling modes can be inter-changeable,fill by volume or fill by weight.Fill
by volume featured with high speed but low accuracy.Fill by weight featured
with high accuracy but low speed.
Save the parameter of different filling weight for different materials.To save
10 sets at most.
Replacing the auger parts,it is suitable for material from super thin powder to
granule.
Main Parameter:
|
Model
|
Unit
|
SFPW
|
|
Packing Weight
|
KG
|
1-25
|
|
Hopper
|
L
|
100
|
|
Production capacity
|
Times/M
|
2 - 6
|
|
Quantitative error
|
%
|
1 – 20kg, ≤±0.1-0.2%,
>20kg, ≤±0.05-0.1%
|
|
Source voltage
|
V
|
3P AC208-415V 50/60Hz
|
|
Air consumption
|
m3/min
|
0.1m3/min
|
|
Gas supply pressure
|
MPA
|
0.4-0.6
|
|
Consumed power
|
KW
|
3
|
|
Total Weight
|
KG
|
500
|
|
Overall Dimensions
|
MM
|
1125×975×2500mm
|
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
