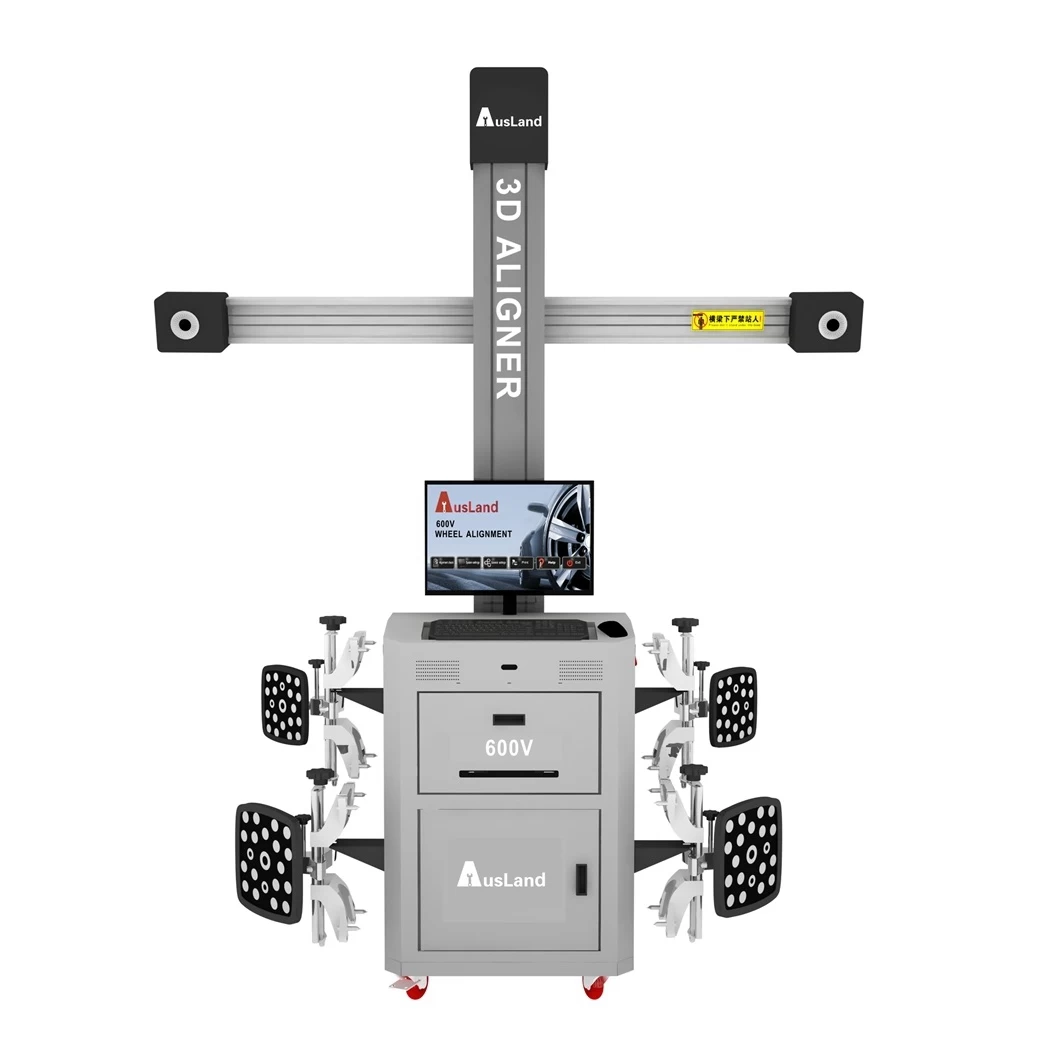

AUSLAND 600V Muti-Station Automatic Tracking 3D Wheel Alignment
Ausland 600V 3D Wheel Aligner Description
Ausland-600V is the latest 3D technology wheel aligner.It’s with dynamic constitute coordinate, not affected by the inclination of lift. It can perform wheel alignment at all height.
Supported Multi Languages: Chinese, English, Spanish, Russian, German, Japanese, French, Arabic, Thai, Greek, Korean, Romanian, Portuguese, Finnish, Slovenian, Polish, Hungarian
600V 3D Wheel Aligner Features
-
Superiority on technology, have more than 7 specialist with ten years experience.
-
Independent intellectual property rights, hold invention and utility patents.
-
Dynamic constitute coordinate,no affected by the inclination of lift
-
No need to wait during rolling or caster swing, save test time .
-
Automatic calculate wheel diameter, no need to input manually
-
High precision anti- throwing target, reinforced plastic enclosure,laser fabrication
600V 3D Wheel Aligner Specification
Item
|
Precision
|
Range
|
Front Total Toe-in:
|
±2’
|
±20°
|
Camber:
|
±2’
|
±20°
|
Caster:
|
±4’
|
±20°
|
SAI/KPI:
|
±6’
|
±20°
|
Setback:
|
±2’
|
±5°
|
Thread:
|
±2mm
|
|
Wheelbase:
|
±2mm
|
|
Ausland 600V 3D Wheel Aligner Reliable
-
Waterproof protected
-
Real-time check target picture
-
Perfect additional measurement
-
Industry best camera and optical system
-
Friendly interface, fast and stable search funtion
-
With unique quick testing mode, saving time and work efficiently
-
A wide range of wheel clamp, with10’’-24’’ solid & precision clamp
-
Specializing 3D wheel alignment R & D, more reliable, more cost-effective
