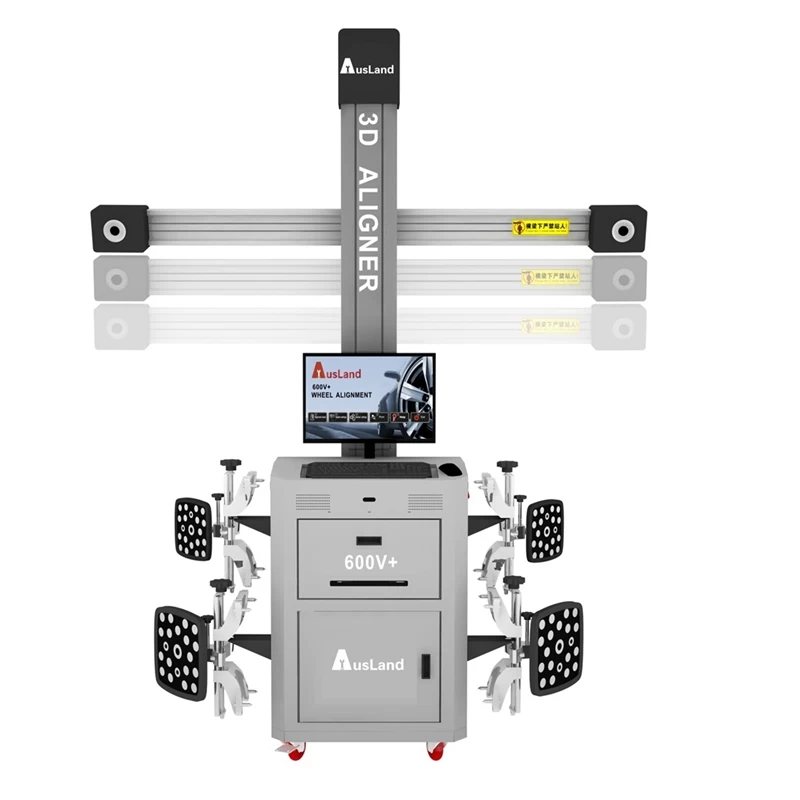

Ausland 600V Plus Muti-Station Automatic Tracking 3D Wheel Aligner Machine
600V+ 3D Wheel Aliger Product advantage:
1.Intelligent sound recognition
2.Measurement platform support：pit，four post lift, big scissor lift,small scissor lift
3.Auto trace function no requirement of manual intervention
4.Camera beam follows lift movement automatically during the measurement procedure,ennable the operator to work on the chassis at any height.
5.Support improperly leveled platform,it can be measured as long as the target is in the visual range.
6.Optimized dynamic visual technology, live caster data
7.Shortest in the industry, rolling runout compensation without pause
8.Track width ,Track width difference,wheelbase, wheelbase difference detection
9.Display real-time Kingpin , adjust suspension data conveniently
10 .Real-time target monitor
Supported multi languages: Chinese, English, Spanish, Russian, German, Japanese, French, Arabic, Thai, Greek, Korean, Romanian, Portuguese, Finnish, Slovenian, Polish, Hungarian, etc.
Ausland 600V Plus 3D Wheel Aliger Specification
|
Item:
|
Precision
|
Range
|
Maximum Measuring Range
|
|
Camber:
|
±2’
|
±2°
|
±20°
|
|
Front Total Toe-in:
|
±2’
|
±2°
|
±20°
|
|
Caster:
|
±4’
|
±10°
|
±20°
|
|
SAI/KPI:
|
±6’
|
±15°
|
±20°
|
|
Setback:
|
±2’
|
±2°
|
±10°
|
Ausland 600V+ 3D Wheel Aliger Environment Requirements
Temperature：-10-50°
Relative humidity：≦85%
Display Precision：0.01°/1′/0.1mm/0.1inch
