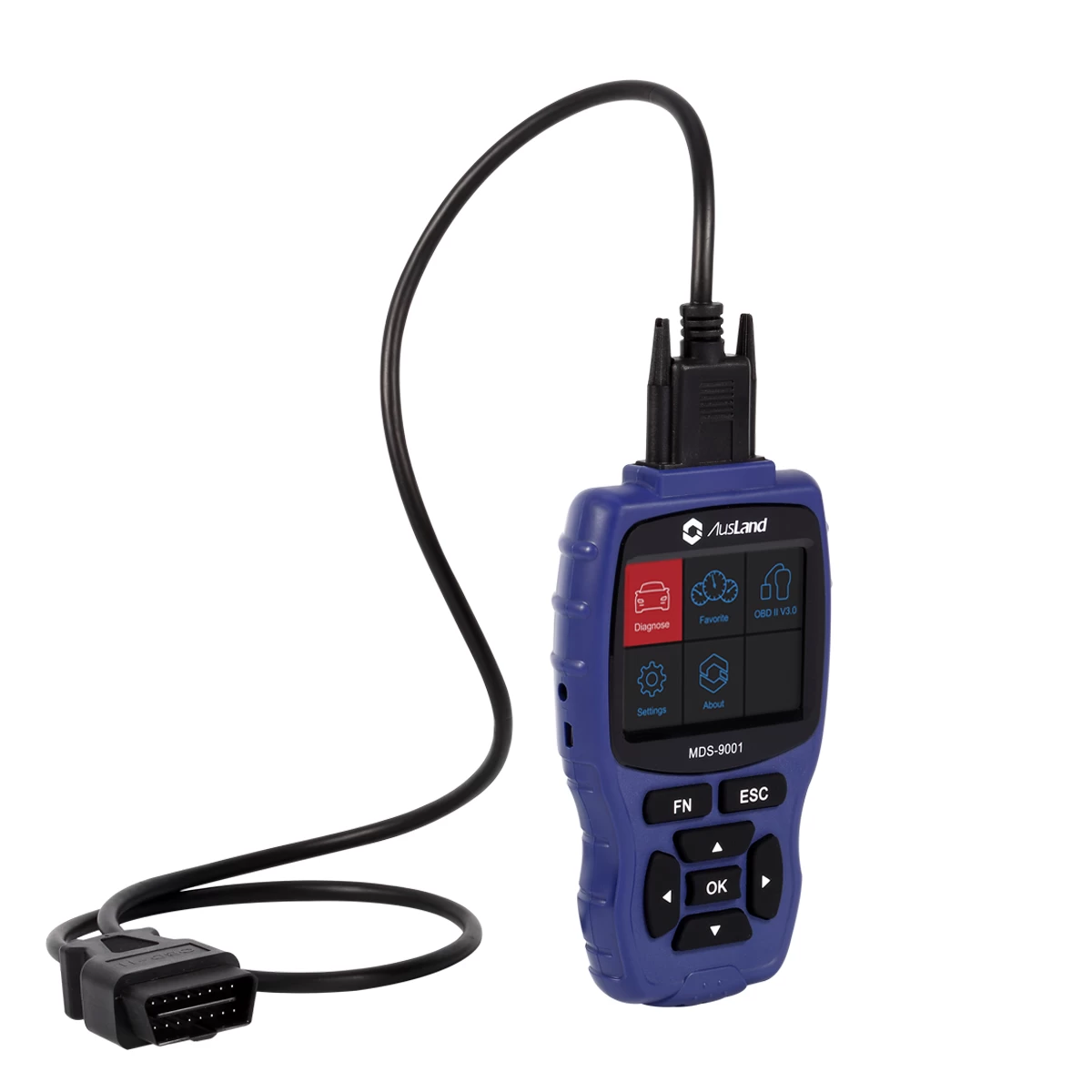

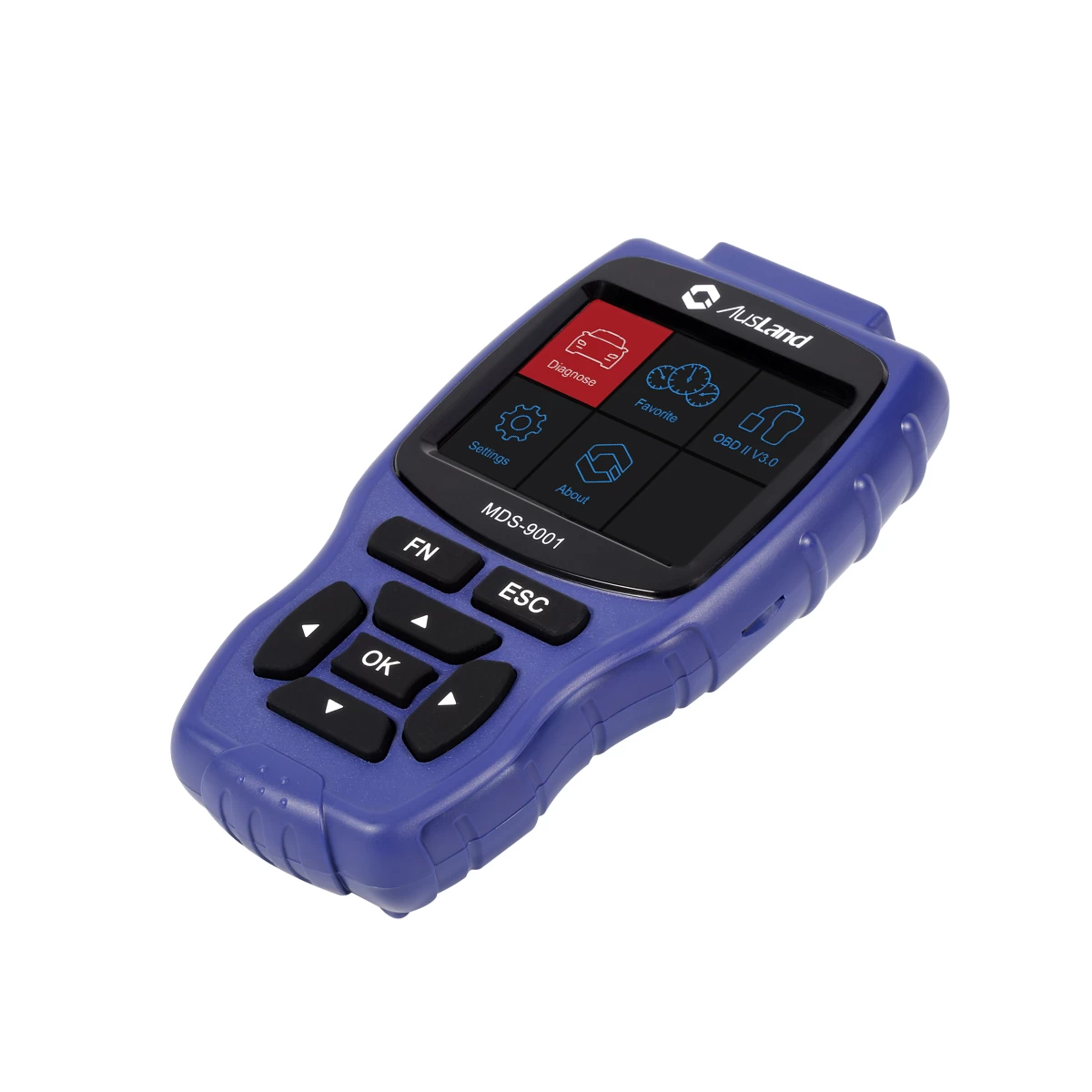

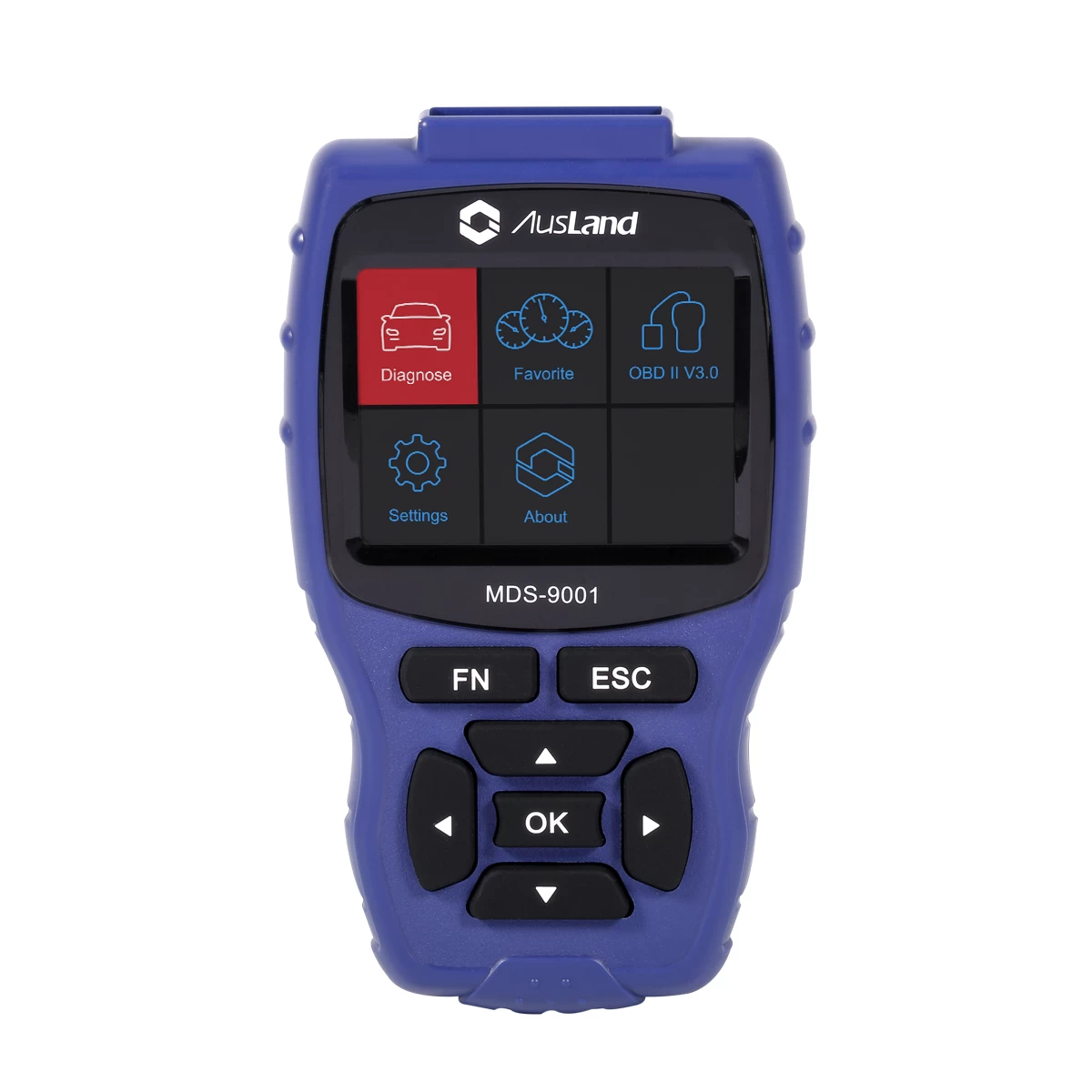

AUSLAND MDS-9001 Auto Diagnostic Code Reader SAS ABS TPMS BMS For Car Scanner Handheld Scan Programming Tool for Ford

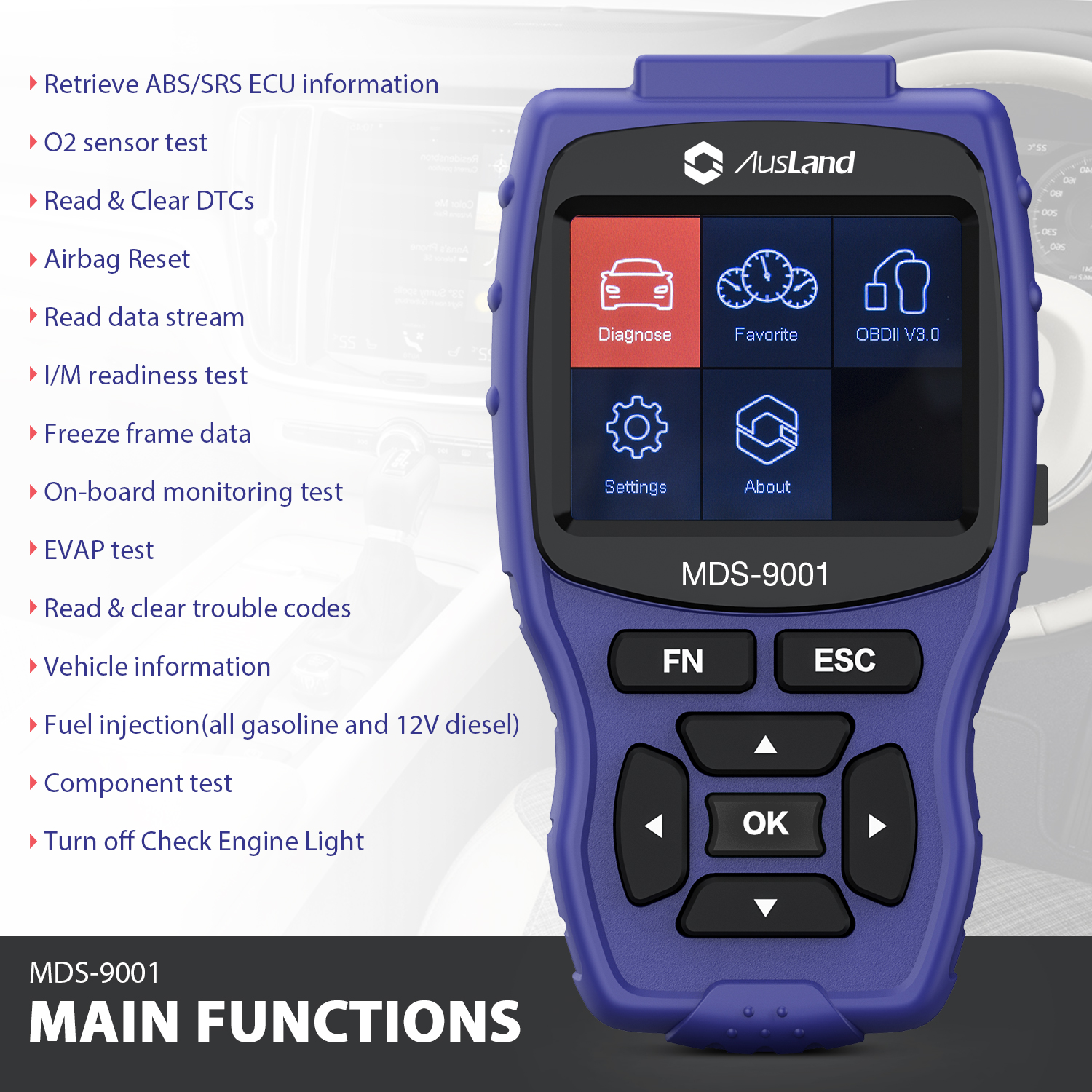

Features
l Works on most systems
l Reads & Clear trouble code (generic & manufacturer specific DTC’s) on all the systems such as engine, transmission, abs and airbag
l On-board readiness monitoring- to read the results of on-board diagnostic
monitoring tests for specific components systems
l Requests and records live sensor data
l Provides live data graphing, Merges graphs for easy and intuitive diagnosis
l Displays freeze frame data, providing freeze frame data as snapshot of the operating conditions at the time of an emission-related fault
l Performs most adaptations, Does active tests on systems and components
l Performs special functions, coding, security access
l Retrieve ECU information
l EVAP test – initiating a leak test for the vehicle’s EVAP system with necessary
l procedures available
l Fuel injection (all gasoline & 12 V diesel)
l Resets oil service light, Oil light/service reset – supporting service lamp reset, brake pad reset service mileage, check engine light, and service interval
l Turn off the ECU warning light, diagnoses EPB/SBC functionality

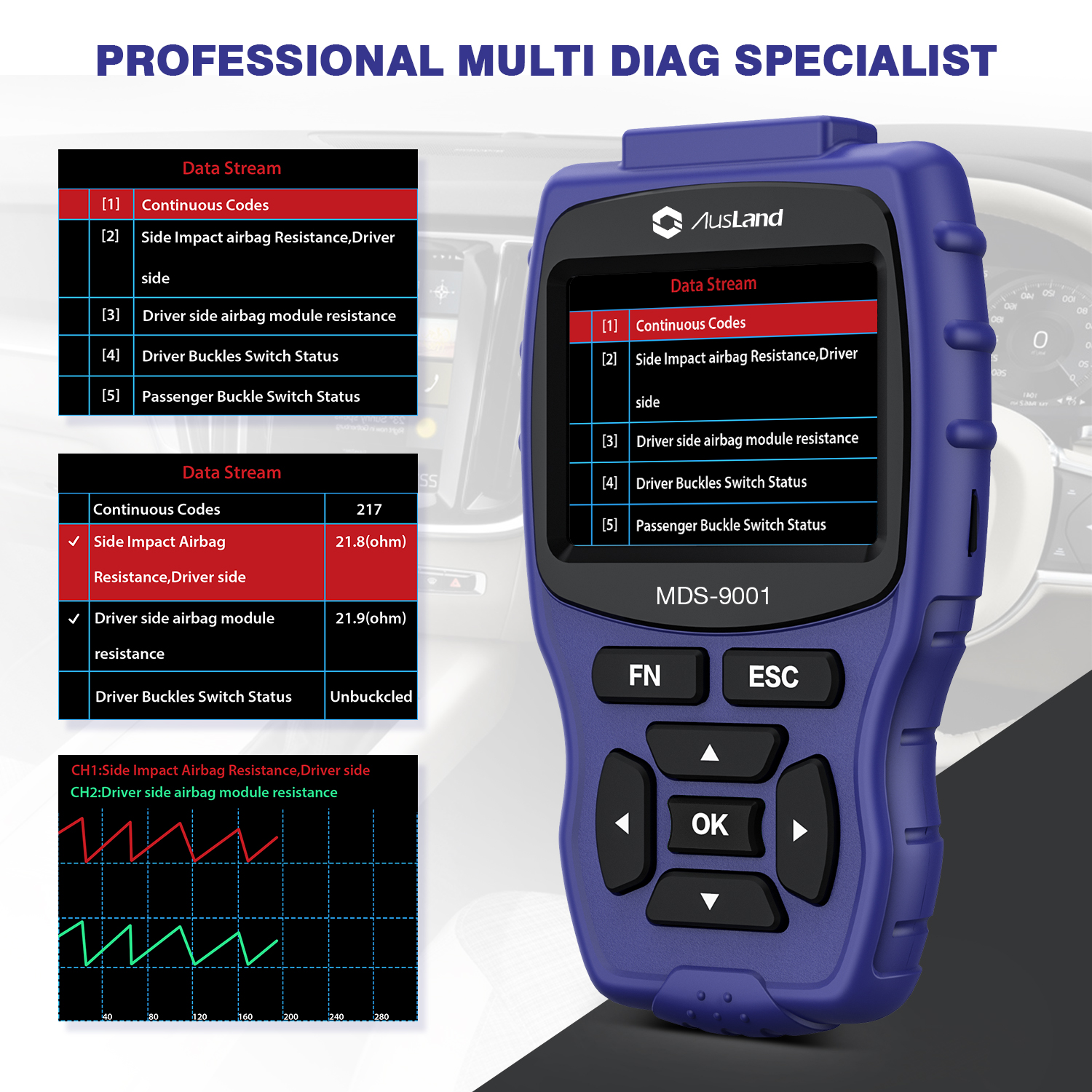

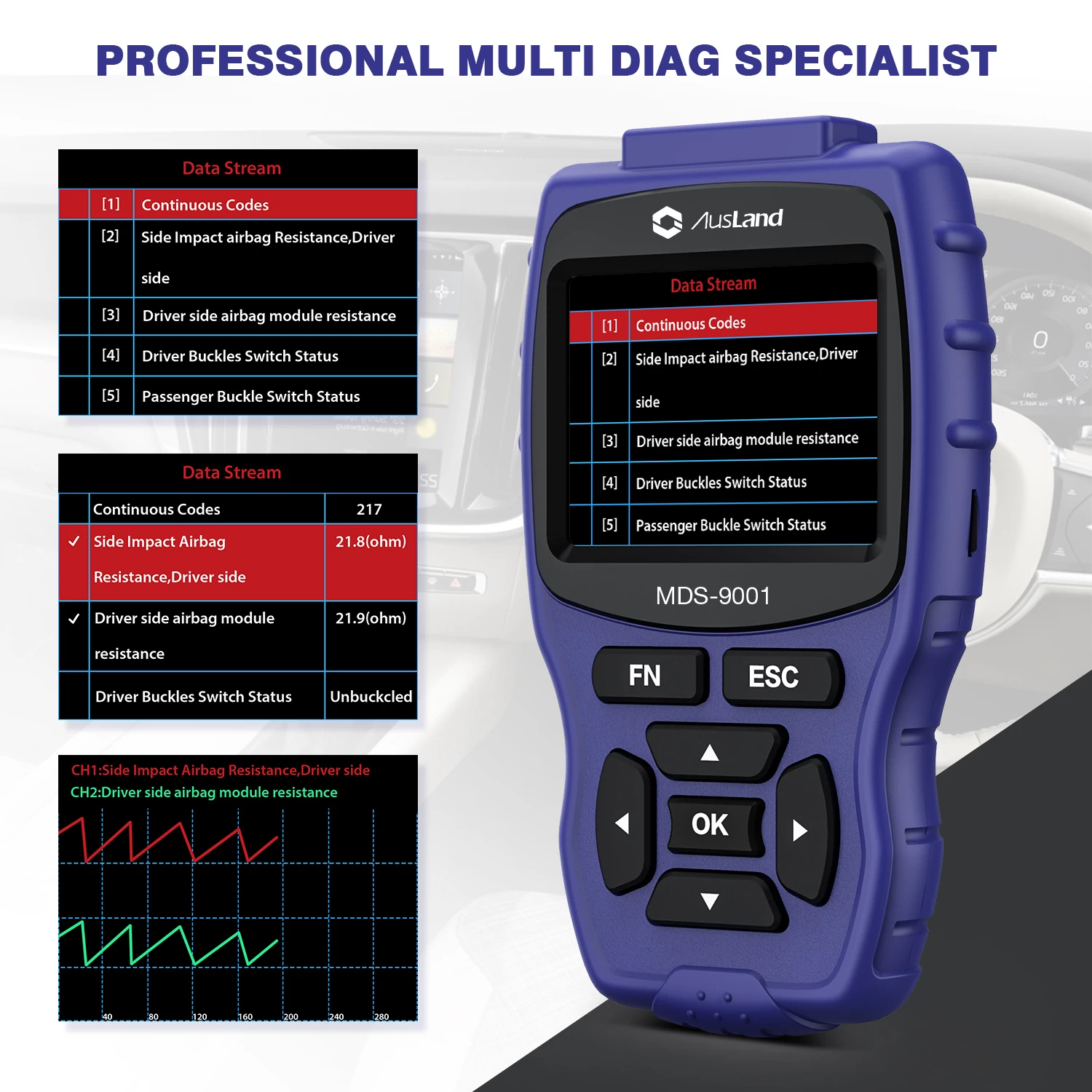

l View & graph live data for real time graphing/live data reading
l Component for bi-directional tests such as cycling abs solenoids
l Re-calibration of brake control module after changing the brake pads
Replacement
l Sets inspection 1, 2 service interval
l Sets (non) long life oil service
l Sets inspection mileage
l Deactivates and re-activates brake control system
l Retracts calipers for brake pad replacement
l Returns calipers to the original position
l Initializes the wear indicator if new pads installed
l Diagnoses EPB caliper functionality
l Code troubleshooters for faster and easier diagnosis
l Multilingual menu options and code definitions
l Memory card for data backup and software update by internet
l Large TFT color screen and menu-driven operation

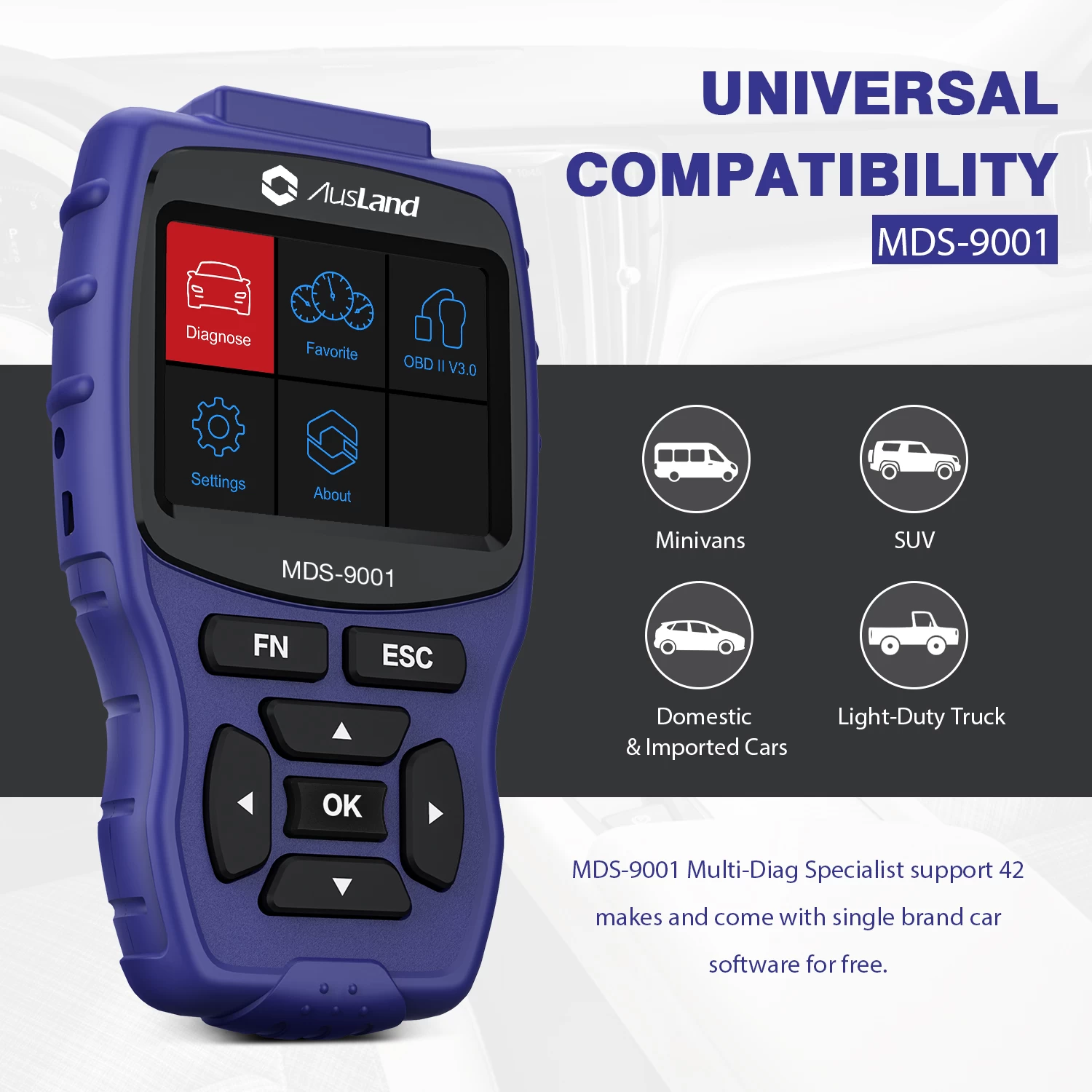

l Multi System Platform capable
OBDII Features
l Read fault codes
l Clear fault codes
l Retrieve data stream
l EVAP test
l Vehicle information
l I/M Readiness

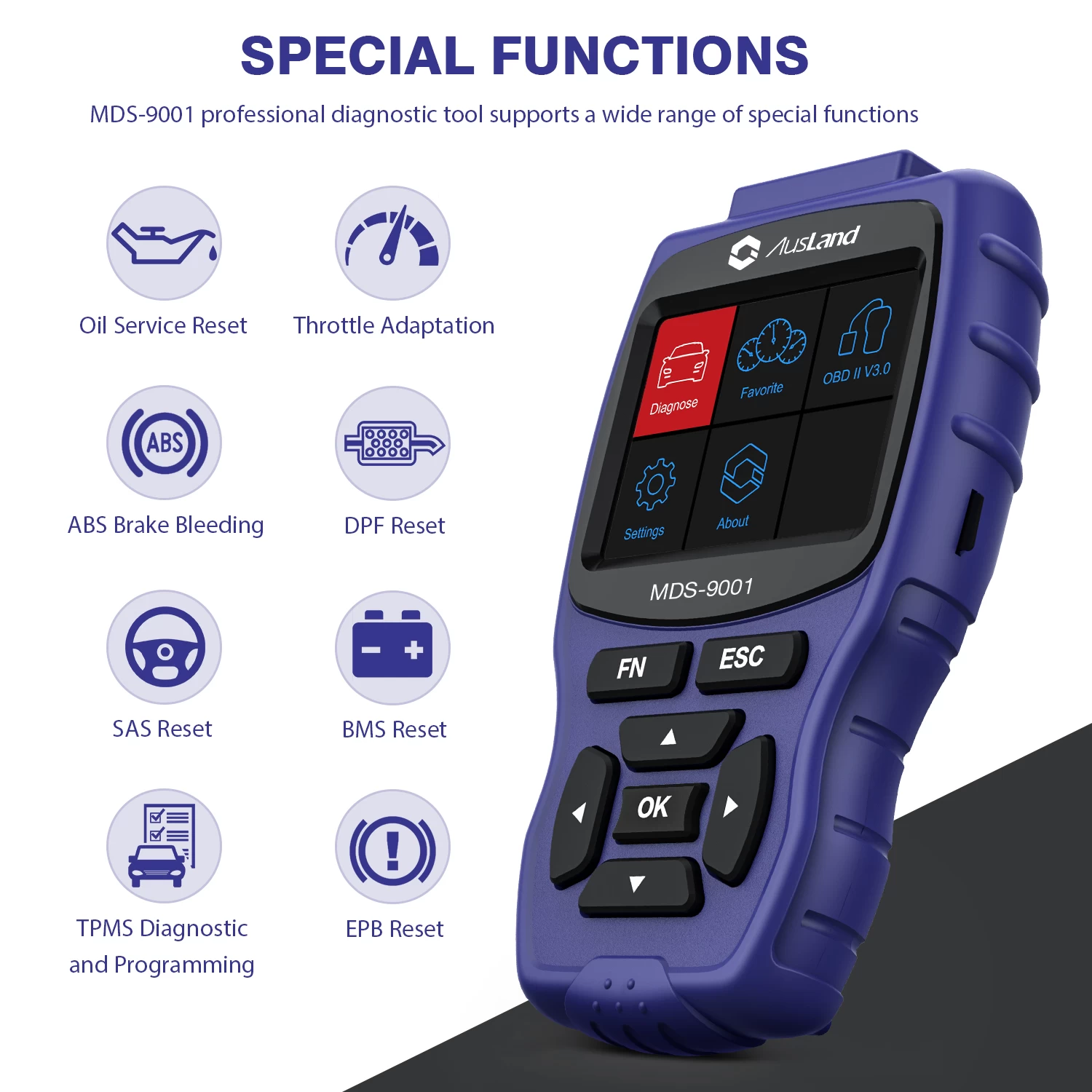

Special Funciton
l CONFIGURE THE LATERAL ACCELERATION SENSOR
l CONFIGURE THE LONGITUDINAL ACCELERATION SENSOR
l CONFIGURE THE PRESSURE SENSOR
l CONFIGURE THE STEERING ANGLE SENSOR
l DIESEL PARTICULATE FILTER STATIC REGENERATION
l ENTER THE FUEL INJECTOR DEFAULT COUNT VALUE
l FUEL INJECTOR CORRECTION FACTORS
l KOEO ON DEMAND SELF-TEST
l MODULE INITIALIZATION
l PULL DRIFT COMPENSATION
l RESET DIFFERENTIAL PRESSURE SENSOR LEARNED VALUES
l RESET KAM
l RESET THE DIESEL PARTICULATE FILTER LEARNED VALUES
l RESET THE EXHAUST GAS RECIRCULATION VALVE LEARNED VALUES
l RESET THE EXHAUST GAS TEMPERATURE
l RESET THE FUEL INJECTOR LEARNED VALUES
l RESET THE HEATED EXHAUST GAS OXYGEN SENSOR LEARNED VALUES
l RESET THE HIGH PRESSURE FUEL SYSTEM LEARNED VALUES
l RESET THE INTAKE AIR THROTTLE VALVE LEARNED VALUES
l RESET THE MASS AIR FLOW SENSOR LEARNED VALUES
l RESET THE POWERTRAIN CONTROL MODULE LEARNED VALUES
l RESET THE TURBOCHARGER VARIABLE VANE POSITION SENSOR LEARNED VALUES
l RESET THE WATER IN FUEL WARNING
l STRAIGHT AHEAD ADAPTION ANGLE RESET

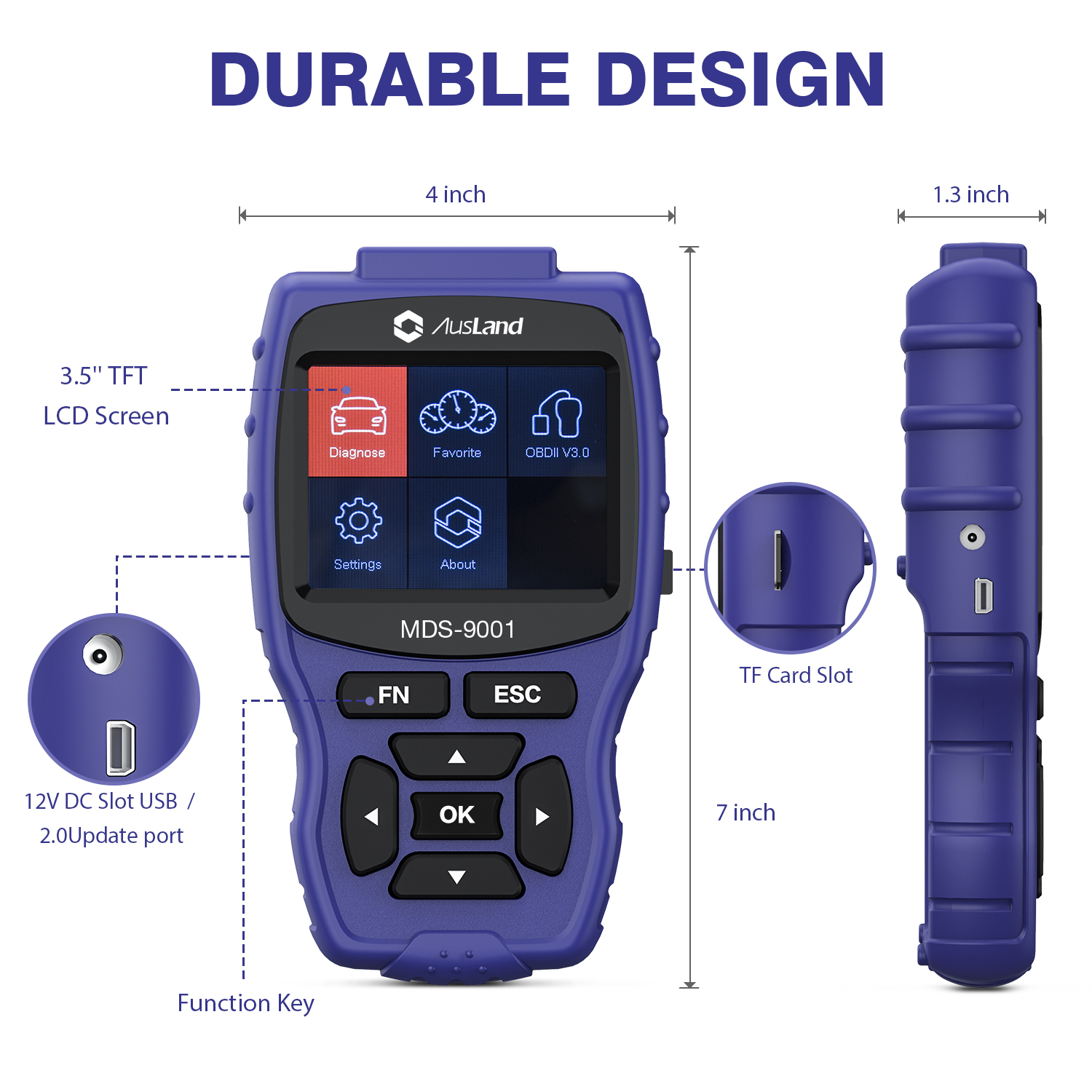

Specification
l Display: 3.5’’ TFT LCD
l Operating temperature: 0 ～ +50℃
l Storage temperature: -20 ～ +70℃
l Operating current: 150mA 12V(Typical)
l Power consumption:1.8W(Typical)
l Packing dimension: 176*102*33mm(L×W×H)
l Weight: 270g

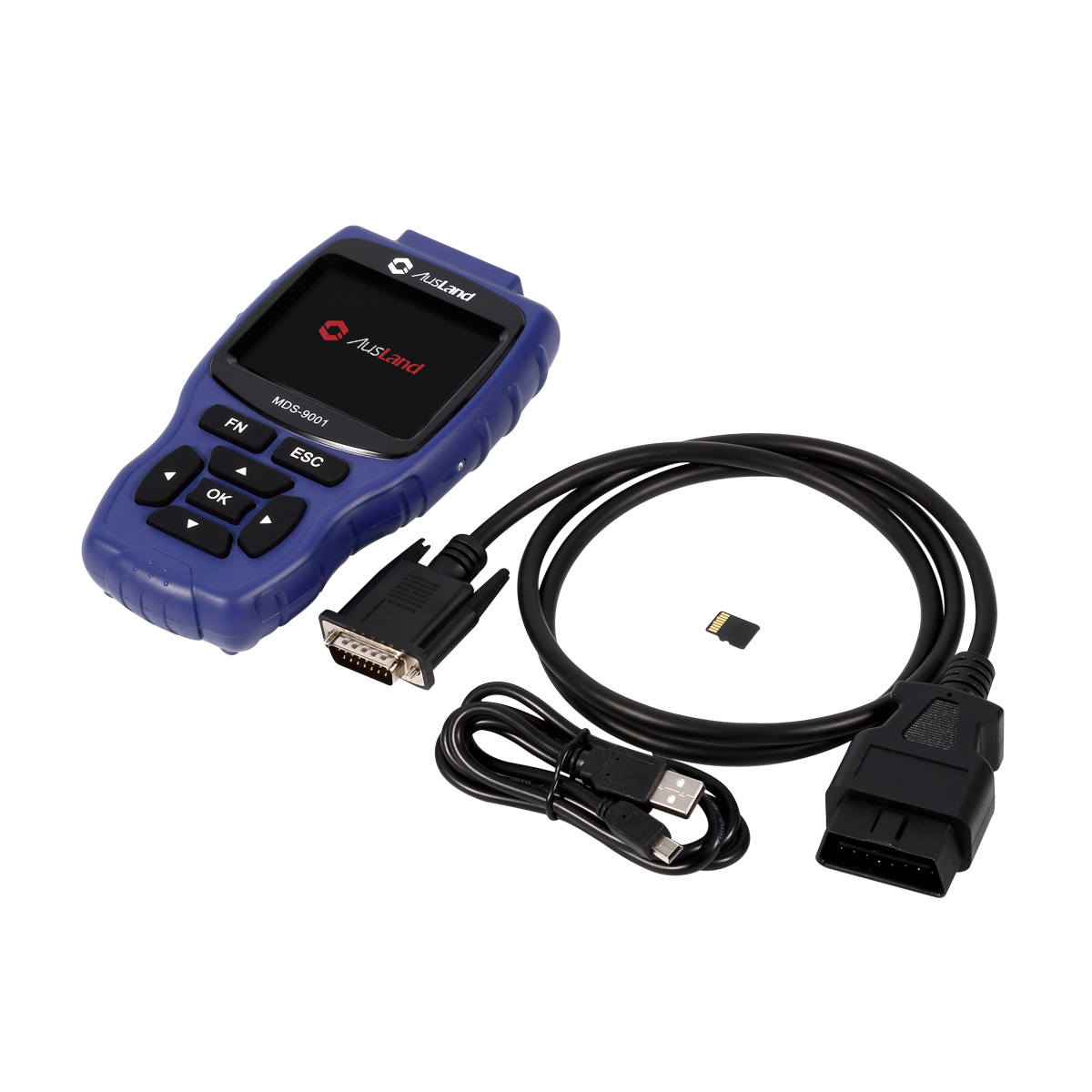

Packing list:
l Main unit 1pc
l Main Cable 1pc
l OBDII-16 Connector 1pc
l USB Cable 1pc
l User Manual 1pc
