Ausland MDS-9001 for Toyota Professional Diagnostic Scan Tool Car Diagnostic OBD2 Code Scanner

Ausland MDS-9001 for Toyota Professional Diagnostic Scan Tool Car Diagnostic OBD2 Code Scanner

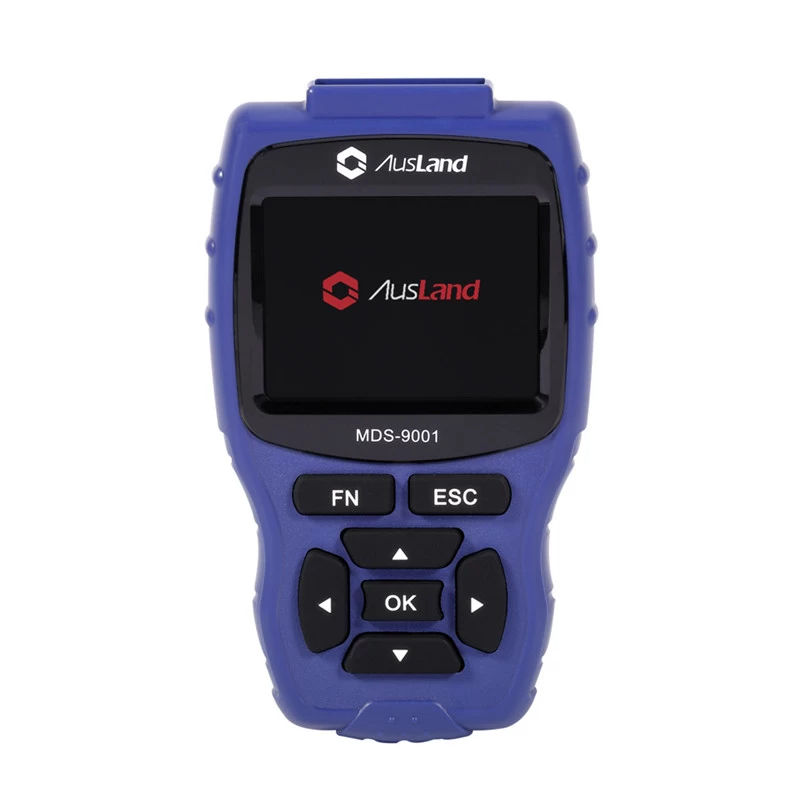

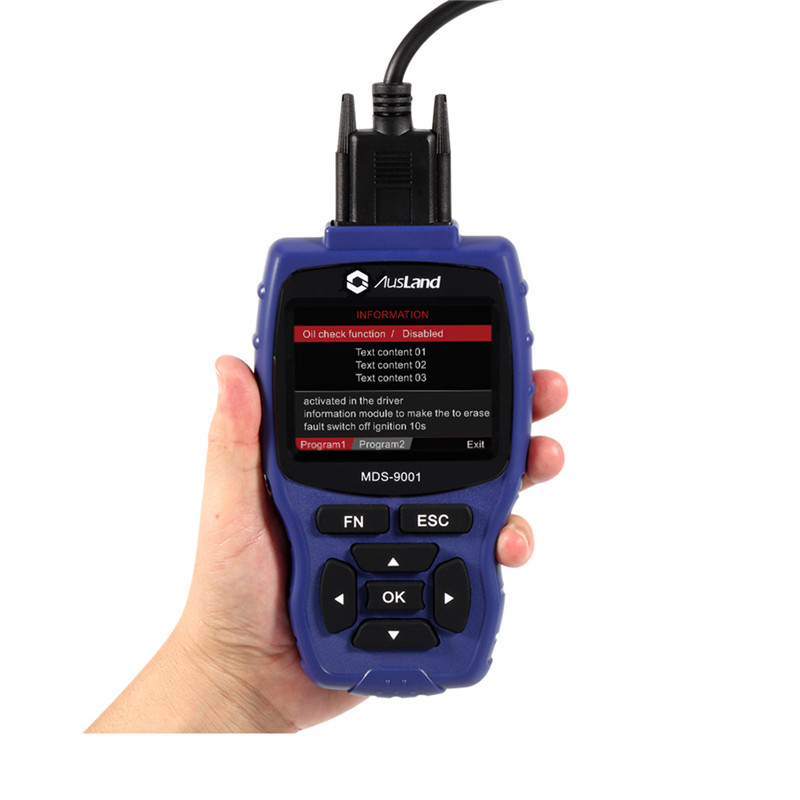

MDS-9001 Multi-diag specialist is professional handheld scan tool, not only for small garages, independent repairs, enthusiasts, but also for technicians by delivering OE-level diagnosis on all the electronic systems. It has basic functions such as codes and live data, and capable of advanced functions too, such as actuation, adaptation and programming. In addition, it can lets you to access oil service light reset, throttle body adjustment, DPF regeneration and much more commonly required service features.

Ausland MDS9001 Features

• Works on most systems
• Reads & Clear trouble code (generic & manufacturer specific DTC’s) on all the systems such as engine, transmission, abs and airbag
• On-board readiness monitoring- to read the results of on-board diagnostic monitoring tests for specific components systems
• Requests and records live sensor data
• Provides live data graphing, Merges graphs for easy and intuitive diagnosis
• Displays freeze frame data, providing freeze frame data as snapshot of the operating conditions at the time of an emission-related fault
• Performs most adaptations, Does active tests on systems and components
• Performs special functions, coding, security access
• Retrieve ECU information
• EVAP test – initiating a leak test for the vehicle’s EVAP system with necessary
• procedures available
• Fuel injection (all gasoline & 12 V diesel)
• Resets oil service light, Oil light/service reset – supporting service lamp reset, brake pad reset service mileage, check engine light, and service interval
• Turn off the ECU warning light, diagnoses EPB/SBC functionality
• View & graph live data for real time graphing/live data reading
• Component for bi-directional tests such as cycling abs solenoids
• Re-calibration of brake control module after changing the brake pads replacement
• Sets inspection 1, 2 service interval
• Sets (non) long life oil service
• Sets inspection mileage
• Deactivates and re-activates brake control system
• Retracts calipers for brake pad replacement
• Returns calipers to the original position
• Initializes the wear indicator if new pads installed
• Diagnoses EPB caliper functionality
• Code troubleshooters for faster and easier diagnosis
• Multilingual menu options and code definitions
• Memory card for data backup and software update by internet
• Large TFT color screen and menu-driven operation
• Multi System Platform capable

1. Read fault codes
2. Clear fault codes
3. Retrieve data stream
4. EVAP test
5. Vehicle information
6. I/M Readiness

• 4WD CONTROL PREVENTION MODE
• A/C OPERATION LIMITATION HISTORY COUNT CLEAR
• A/T CODE REGISTRATION
• A/T CODE RESET
• ABNORMAL OPERATION HISTORY
• ABS HISTORY
• AF/O2 SENSOR OPERATION
• AHS CAMERA OPTIC AXIS ADJUSTMENT
• AHS SHADE ANGLE ADJUSTMENT
• AIR BLEEDING
• ALL READINESS CHECK MODE
• ASG SYSTEM INITIAL LEARNING
• ATF THERMAL DEGRADATION ESTIMATE RESET
• AUTO POWER OFF CANCEL
• AUTOMATIC CAMERA ADJUSTMENT
• BATTERY DIAGNOSIS
• BATTERY STATUS INFO UPDATE
• BEAM AXIS ADJUSTMENT
• BEAM AXIS MISALIGNMENT READING
• BLOWER MOTOR BRUSH WEAR AMOUNT INITIALIZATION
• BLUETOOTH CONNECTION HISTORY
• BRAKE CALIPER/FLEXIBLE HOSE REPLACEMENT
• BRAKE FLUID REPLACEMENT
• BSM MASTER ABNORMAL HISTORY
• BSM MASTER BEAM AXIS ADJUSTMENT
• BSM MASTER BEAM AXIS DISPLAY
• BSM MASTER BEAM AXIS INSPECTION
• BSM SLAVE ABNORMAL HISTORY
• BSM SLAVE BEAM AXIS ADJUSTMENT
• BSM SLAVE BEAM AXIS INSPECTION
• CAMERA AXIS ADJUST
• CAMERA SYNCHRONOUS ERROR HISTORY
• CAMERA/TARGET POSITION MEMORY
• CHECK MODE RESET MEMORY
• CVT OIL PRESSURE CALIBRATION
• DCM OPERATION HISTORY
• DCM SERVICE
• DECELERATION SENSOR ZERO POINT CALIBRATION
• DRIVE HISTORY RESET
• ECB UTILITY INSPECTION MODE
• ECU INFORMATION SYNC
• ENGINE OIL JET CONTROL CHECK
• EVAPORATIVE SYSTEM CHECK
• FRONT BEAM AXIS ADJUSTMENT
• FRONT BEAM AXIS MISALIGNMENT READING
• FRONT BEAM AXIS OFFSET READING
• FUEL DENSITY LEARNING VALUE RESET
• HEAVY KNOCK HISTORY
• HEIGHT OFFSET
• HEIGHT SENSOR INITIALIZATION
• HISTORY CLEAR
• HV BATT CELL LOW VOLT READY ON PREVENTION CANCEL
• ID REGISTRATION
• INITIAL REGISTRATION
• INSPECTION MODE
• LASER/RADAR CRUISE INITIALIZATION
• LEARNING VALUE INITIALIZATION
• LEARNING VALUE RESET
• LOST COMMUNICATION HISTORY
• MANUAL CAMERA ADJUSTMENT
• MAP INFORMATION
• NORMAL BATTERY STACK AVERAGE VOLTAGE CALCULATION
• OPTICAL DISC ERROR HISTORY
• PARTS EXCHANGE LEARNING
• PCS IMAGE INFORMATION CLEAR
• PCS IMAGE RECORD SETTING
• POSITION MEMORY
• PREDIAGNOSTIC BATTERY CHARGE
• REAR COOLING UNIT CHECK
• REAR WING ZERO POINT CALIBRATION
• RECOG ECU H TEMP HIST RESET
• RECOGNITION CAMERA AXIS ADJUST
• RECOGNITION CAMERA/TARGET POSITION MEMORY
• REFRIGERANT GAS VOLUME CHECK
• REMOTE ENGINE STARTER ID REGISTRATION
• REMOTE ENGINE STARTER INITIAL REGISTRATION
• RESET MEMORY
• SENSITIVITY CHECK
• SENSOR ADJUSTMENT
• SERVOMOTOR INITIALIZATION
• SHIFT CONTROL SYNCHRONIZATION
• SIGNAL CHECK
• SOFTWARE ERROR HISTORY
• STABILIZER SYSTEM CHECK
• STEERING ANGLE ADJUST
• STEERING SENSOR INITIALIZATION
• SWITCH OIL MAINTENANCE DISPLAY
• TEMPORARY VEHICLE START UP
• TIRE POSITION WRITE
• TORQUE SENSOR ADJUSTMENT
• TROUBLE FACTOR CODE CLEAR
• VIDEO DEVICE CONNECTION CHECK
• VIN
• VSC/TR(A)C/4WD CONTROL PREVENTION MODE
• WI-FI CONNECTION HISTORY
• WIRELESS DOOR LOCK DIAGNOSIS MODE

Packing list:

Main unit           1pc

Main Cable           1pc

OBDII-16 Connector   1pc

USB Cable           1pc

User Manual         1pc
