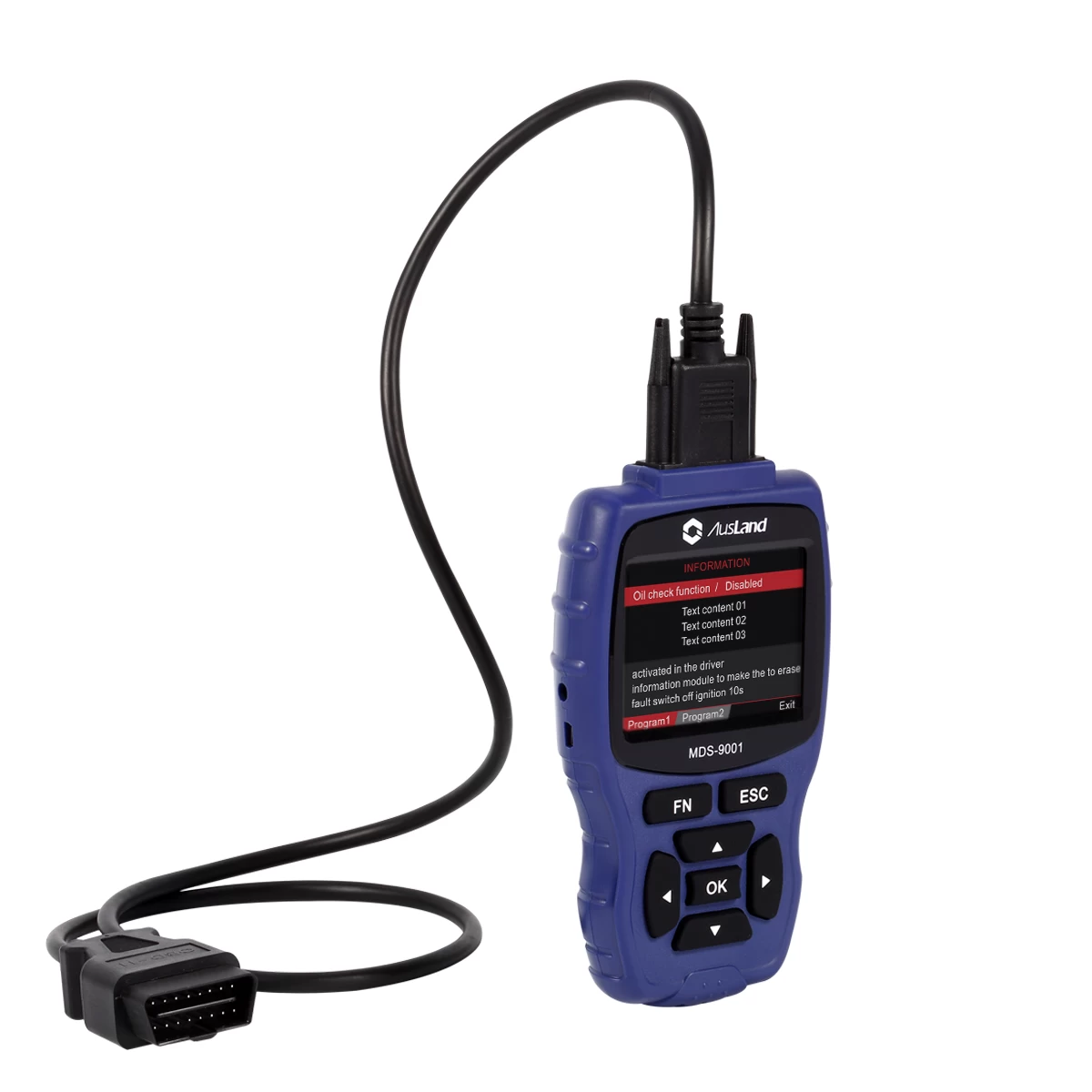

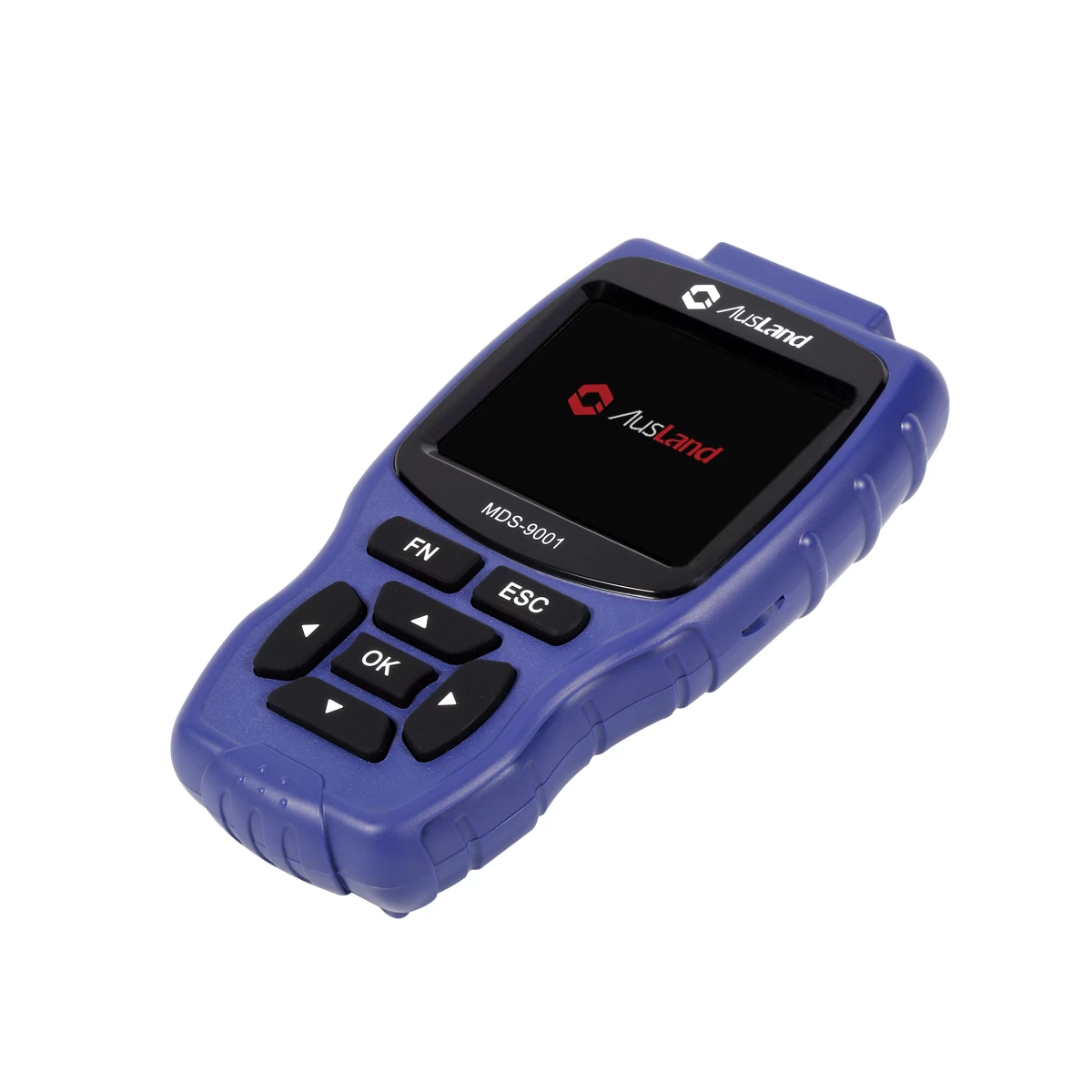

AUSLAND MDS-9001 Multi-Diag Specialist Electronics Diagnostic Tools Code Reader Car Tester Diagnostic Scanner for BMW Mini
MDS-9001 Multi-diag specialist is professional handheld scan tool, not only for small garages, independent repairs, enthusiasts, but also for technicians by delivering OE-level diagnosis on all the electronic systems. It has basic functions such as codes and live data, and capable of advanced functions too, such as actuation, adaptation and programming. In addition, it can lets you to access oil service light reset, throttle body adjustment, DPF regeneration and much more commonly required service features.
BMW MODELS COVERED
1 Series - E81, E82, E87, E88, 1M, F20, F21
2 Series - F22, F23, F45, F46, F87
3 Series - E30, E36, E46, E90, E91, E92, E93, F30, F31, F35, F34, F80
4 Series - F32, F33, F36, F83, F83
5 Series - E28, E34,E39,E60,E61,M5,GT(F07),F10,F11,F18
6 Series - E24, E63, E64, M6, F12, F13, F06
7 Series - E23, E32, E38, E65, E66, F01, F02, F03, F04, G11, G12
8 Series - E31
I Series - I01, I02
X1 - E84, F48, F49
X3 - E83, F25
X4 - F26
X5 - E53, E70, X5M, F15, F85
X6 - E71, E72, X6M, F16, F86
Z1 - E30
Z3 - E36, Z3M
Z4 - E85, E86, E89
Z8 - E52
MINI For Most Models
R50: "Mk I" Mini One & Cooper
R52: "Mk I" Mini Convertible
R53: "Mk I" Mini Cooper S
R55: "Mk II" Mini Clubman
R56: "Mk II" Mini Hatch/Hardtop range
R57: "Mk II" Mini Convertible
R58: Coupé
R59: Roadster
R60: Countryman
R61: Paceman
F54: Clubman
F55: Hatchback
F56: Hatchback
F57: Convertible
Features
l Works on most systems
l Reads & Clear trouble code (generic & manufacturer specific DTC’s) on all the systems such as engine, transmission, abs and airbag
l On-board readiness monitoring- to read the results of on-board diagnostic
monitoring tests for specific components systems
l Requests and records live sensor data
l Provides live data graphing, Merges graphs for easy and intuitive diagnosis
l Displays freeze frame data, providing freeze frame data as snapshot of the operating conditions at the time of an emission-related fault
l Performs most adaptations, Does active tests on systems and components
l Performs special functions, coding, security access
l Retrieve ECU information
l EVAP test – initiating a leak test for the vehicle’s EVAP system with necessary
l procedures available
l Fuel injection (all gasoline & 12 V diesel)
l Resets oil service light, Oil light/service reset – supporting service lamp reset, brake pad reset service mileage, check engine light, and service interval
l Turn off the ECU warning light, diagnoses EPB/SBC functionality
l View & graph live data for real time graphing/live data reading
l Component for bi-directional tests such as cycling abs solenoids
l Re-calibration of brake control module after changing the brake pads
Replacement
l Sets inspection 1, 2 service interval
l Sets (non) long life oil service
l Sets inspection mileage
l Deactivates and re-activates brake control system
l Retracts calipers for brake pad replacement
l Returns calipers to the original position
l Initializes the wear indicator if new pads installed
l Diagnoses EPB caliper functionality
l Code troubleshooters for faster and easier diagnosis
l Multilingual menu options and code definitions
l Memory card for data backup and software update by internet
l Large TFT color screen and menu-driven operation
l Multi System Platform capable
OBDII Features
l Read fault codes
l Clear fault codes
l Retrieve data stream
l EVAP test
l Vehicle information
l I/M Readiness
Special Functions
l a/c On With Ignition On Key
l Adjust Transversal-Acceleration Sensor
l Adjustment, Steering-Angle Sensor
l Alignment Ews-Dme-Cas-Dde
l Arm Acoustically Doors/Lids Closed
l Arm Visually Doors/Lids Closed
l Arming/Disarming
l Auto Fan Control On With Ignition On Key
l Automatic Driving Lights Control
l Automatic Locking\Car
l Bleed Routine
l Bleeding Procedure
l Bleeding, Dsc Hydraulics
l Brake Fluid
l Car Key Memory
l Cas Reset
l Cbs Correction Vehicle Data
l Clear Adaptations
l Co Adjustment
l Compartment Sensor
l Convenient Closing /Opening Rc
l Coolant
l Correction Set Temperature
l Daytime Driving Lights
l Delete Transport Mode
l Diesel Filter
l Disable/Enable Key
l Disarm Acoustically
l Disarm Visually
l Display Coding Code
l Display History Of Battery Replacement
l Drain Fill The Refrigerant Circuit
l Driver's Window\One Touch Close/Open
l Dsc Unit Adjustment
l Easy Entry Steering Wheel Longitudinal / Tilting
l Elv Steering Lock Fault Counter Reset
l Enable/Disable Key
l Engine Oil
l Entrance Aid, Tilt Direction
l Exhaust Emission Inspection
l Front Brake
l Home Lights Duration
l Idle Speed Adjustment
l Initialize Power Windows
l Injector Rate Matching
l Key Memory Of Heat/Ac/Ventilation
l Key Number
l Lateral Acceleration Sensor Adjustment
l Learn Sensor Values
l Learning Valvetronic Limit Positions
l Longitudinal Acceleration Sensor Adjustment
l Micro Filter
l Mirror Folding
l Mix-Up Checks, Brake Lines
l Passenger's Window\One Touch Close/Open
l Rain/Light Sensor Initialization
l Read Out Operating Data
l Rear Brake
l Rear Window Driver's Side\One Touch Close /Open
l Rear Window Passenger's Side\One Touch Close /Open
l Recirculated Air Memory
l Register Battery Change
l Register Battery Replacement
l Relock 2 Minutes After Unlocking If Doors Unopened\Key
l Renewal Of The Brake Caliper Or Brake Pads
l Replacement Particular Filter
l Reset Service Interval Indicator
l Reset Starter Interlock
l Run-In Protection For a/c Compressor
l Seat/Memory Position
l Selective Central Locking/Convenient Access\Car
l Set Fan Power
l Spark Plugs
l Start Windows Initialization
l Startup
l Sunroof Initialization
l Tilt Sensor
l Unlock, On Removal Of Rc
l Vehicle Check
l Volume Level
l Workshop Mode
Specification：
Display: 3.5’’ TFT LCD
Operating temperature: 0 ～ +50℃
Storage temperature: -20 ～ +70℃
Operating current: 150mA 12V(Typical)
Power consumption:1.8W(Typical)
Packing dimension: 176*102*33mm(L×W×H)
Weight: 270g

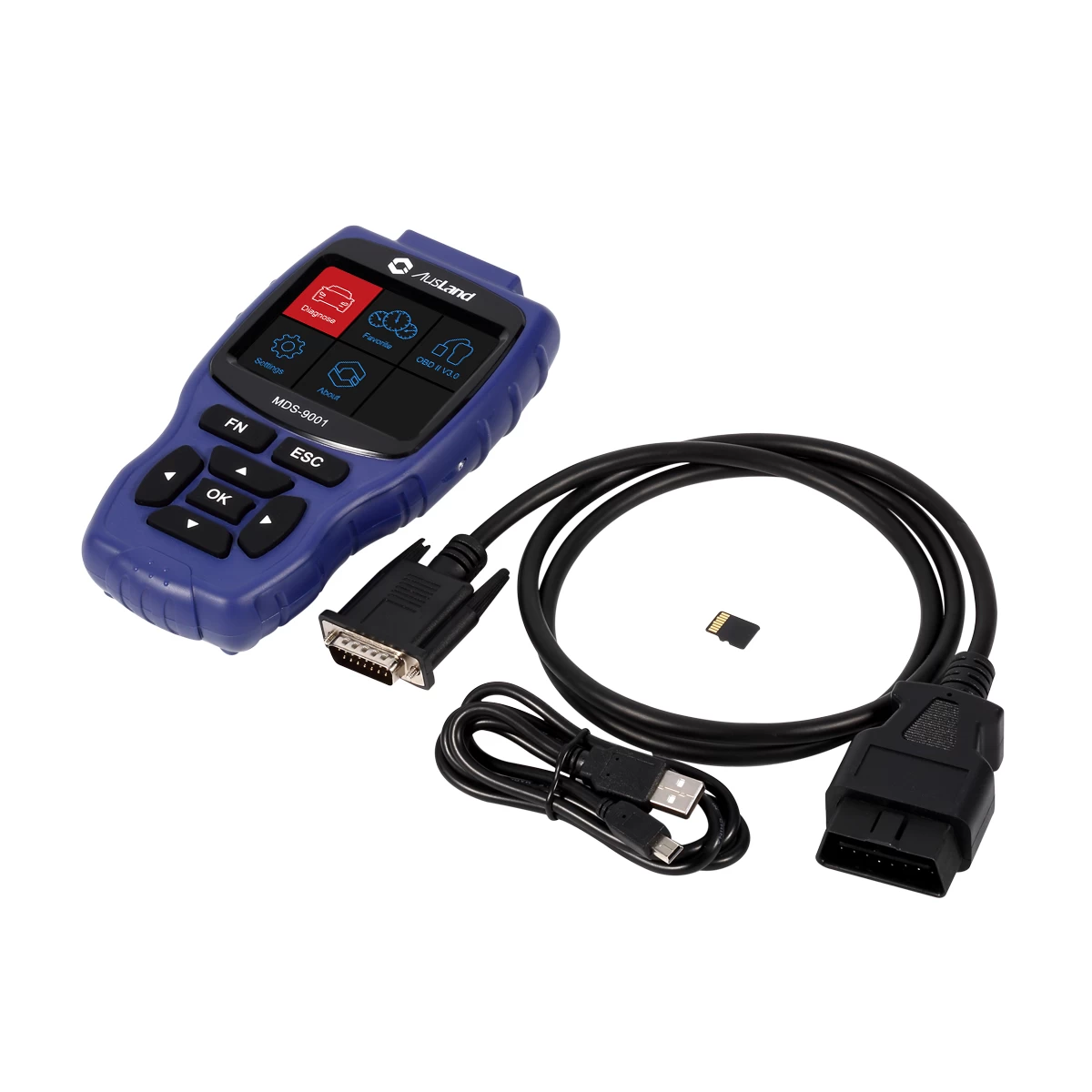

Packing list:
Main unit 1pc
Main Cable 1pc
OBDII-16 Connector 1pc
USB Cable 1pc
User Manual 1pc
