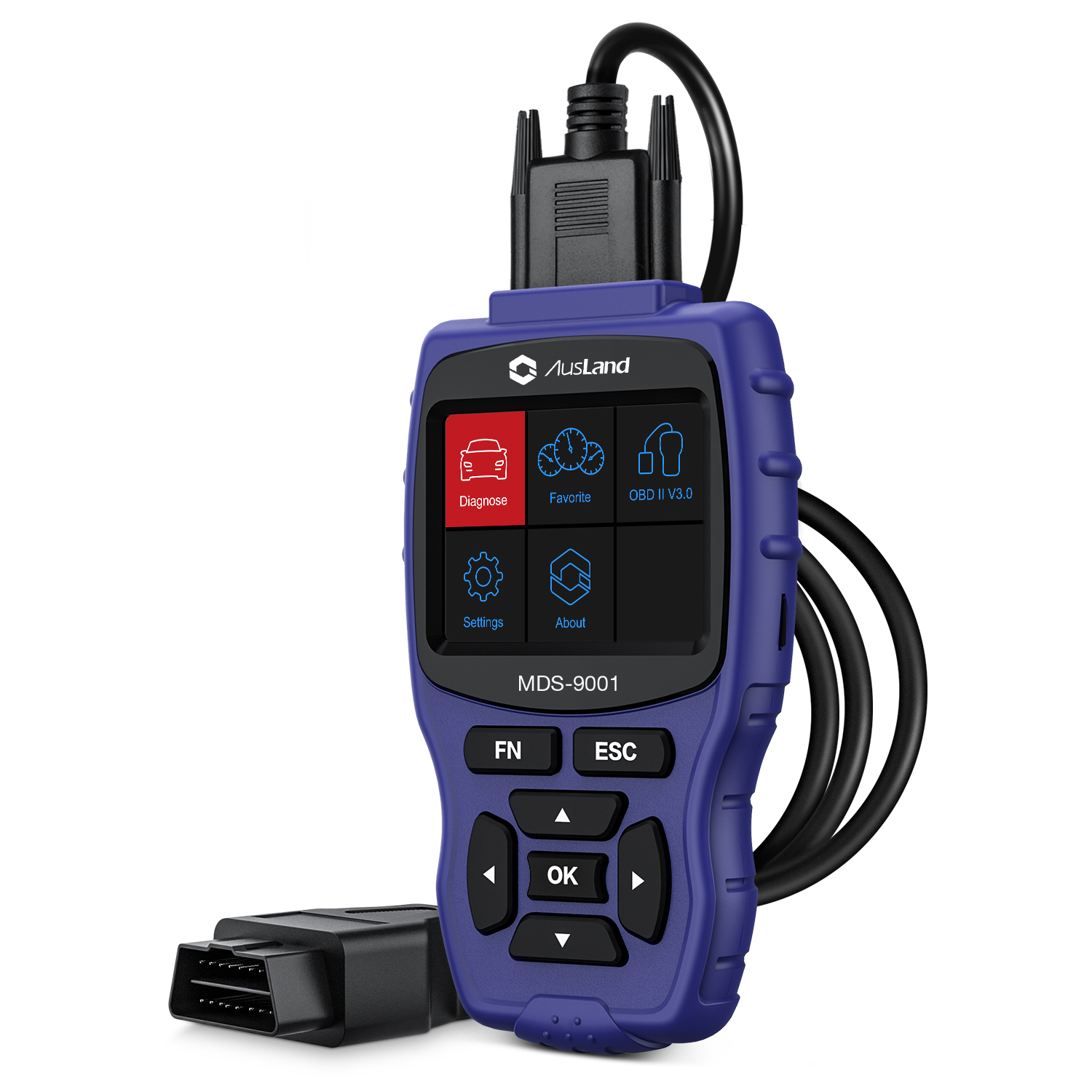

AUSLAND MDS-9001 Professional Universal Auto Diagnostic Scanner Code Reader 12V OBDII for LANDROVER
Features
l Works on most systems
l Reads & Clear trouble code (generic & manufacturer specific DTC’s) on all the systems such as engine, transmission, abs and airbag
l On-board readiness monitoring- to read the results of on-board diagnostic
monitoring tests for specific components systems
l Requests and records live sensor data

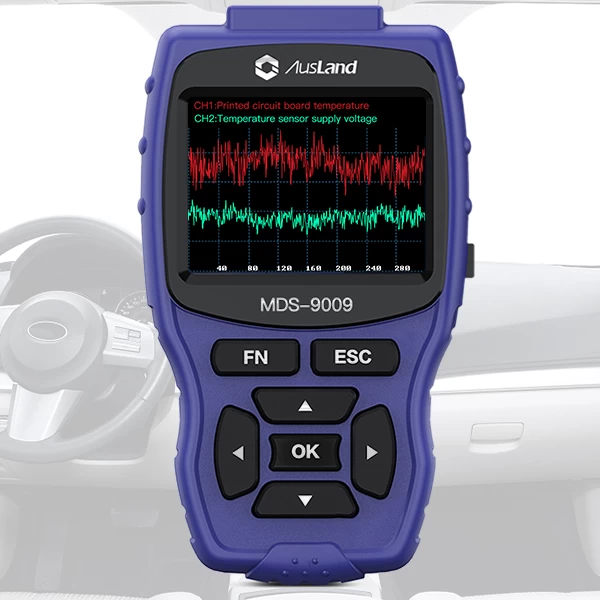

l Provides live data graphing, Merges graphs for easy and intuitive diagnosis

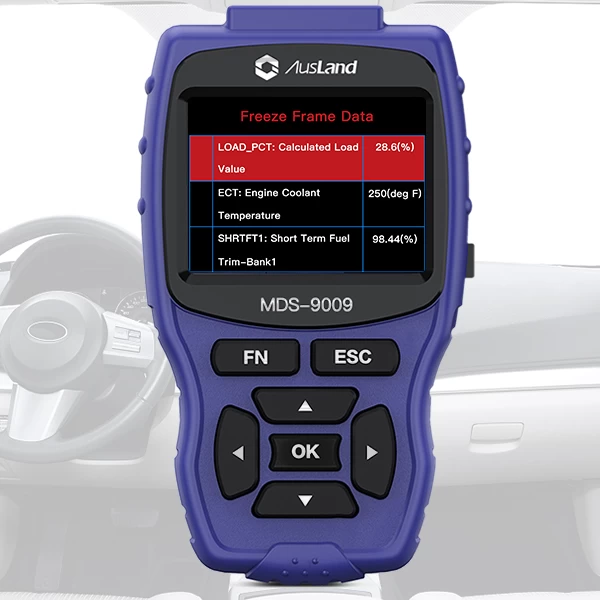

l Displays freeze frame data, providing freeze frame data as snapshot of the operating conditions at the time of an emission-related fault
l Performs most adaptations, Does active tests on systems and components
l Performs special functions, coding, security access
l Retrieve ECU information
l EVAP test – initiating a leak test for the vehicle’s EVAP system with necessary
l procedures available
l Fuel injection (all gasoline & 12 V diesel)
l Resets oil service light, Oil light/service reset – supporting service lamp reset, brake pad reset service mileage, check engine light, and service interval
l Turn off the ECU warning light, diagnoses EPB/SBC functionality
l View & graph live data for real time graphing/live data reading
l Component for bi-directional tests such as cycling abs solenoids
l Re-calibration of brake control module after changing the brake pads
Replacement
l Sets inspection 1, 2 service interval
l Sets (non) long life oil service
l Sets inspection mileage
l Deactivates and re-activates brake control system
l Retracts calipers for brake pad replacement
l Returns calipers to the original position
l Initializes the wear indicator if new pads installed
l Diagnoses EPB caliper functionality
l Code troubleshooters for faster and easier diagnosis

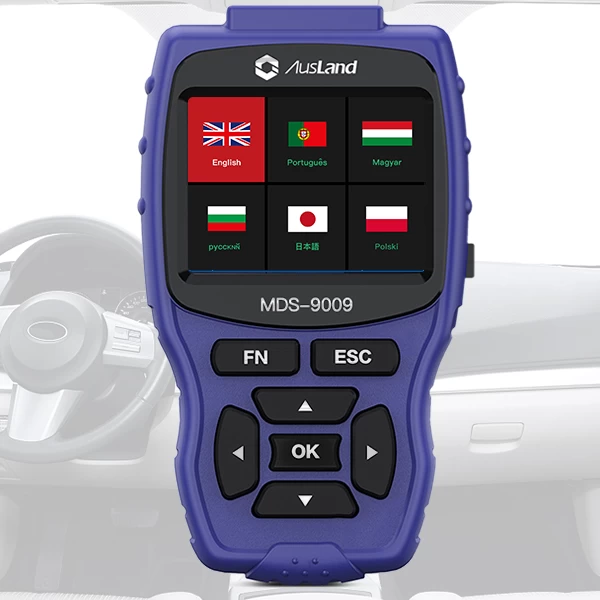

l Multilingual menu options and code definitions
l Memory card for data backup and software update by internet
l Large TFT color screen and menu-driven operation
l Multi System Platform capable
OBDII Features
l Read fault codes
l Clear fault codes
l Retrieve data stream
l EVAP test
l Vehicle information
l I/M Readiness
Special Funciton
l AUTOMATIC SERVICE RESET
l BOOST PRESSURE ACTUATOR REPLACEMENT
l BRAKE CALIPER REPLACEMENT ASSEMBLY TEST
l DIESEL FUELING ADAPTION RE- INITIALIZATION
l DIESEL PARTICULATE FILTER DIFFERENTIAL PRESSURE SENSOR REPLACEMENT
l DIESEL PARTICULATE FILTER DYNAMIC REGENERATION
l DIESEL PARTICULATE FILTER REPLACEMENT
l DRIVE THE PARKING BRAKE TO THE LATCHING POSITION
l DRIVER'S DOOR WINDOW GLASS
l DRIVER'S MEMORY SEAT CALIBRATION
l DRIVER'S SEAT CALIBRATION
l EXHAUST GAS RECIRCULATION VALVE
l FUEL PRIME ROUTINE
l GEAR SELECTOR SENSOR CALIBRATION
l GEAR SELECTOR SENSOR CALIBRATION
l HEADLAMP CONTROL MODULE SYSTEM CALIBRATION
l HUNIDITY SENSOR REPLACEMENT
l LATERAL ACCELEROMETER CALIBRATION
l LONGITUDINAL ACCELEROMETER SENSOR CALIBRATION
l MANUAL SERVICE RESET
l OIL CHANGE RESET
l OIL SERVICE COUNTER RESET
l OXIDATION CATALYST
l OXYGEN SENSOR
l PARKING BRAKE ACTIVATION
l PARKING BRAKE PAD REPLACEMENT - EXIT MAINTENANCE MODE APPLICATION
l PARKING BRAKE PAD REPLACEMENT - RELEASE TO SERVICE POSITION
l PASSENGER'S DOOR WINDOW GLASS
l POWERTRAIN CONTROL MODULE ADAPTION
l POWERTRIAN CONTROL MODULE ADAPTION CLEAR
l PRESSURE SENSOR CALIBRATION
l RAIN SENSOR INITIALISATION
l READ/SET INJECTOR GRADES
l RESET ADAPTIONS
l RESET THE OIL SERVICE COUNTER
l RESET WATER IN FUEL DETECTION
l ROLL RATE SENSOR CALIBRATION
l SEAT CUSHION REPLACEMENT
l SEAT HEATER MODULE CALIBRATION
l SERVICE INTERVAL RESET
l SLIDING ROOF MODULE INITIALISATION
l STEERING ANGLE SENSOR CALIBRATION
l STEPPER MOTOR REPLACEMENT
l SUNROOF CALIBRATION
l THROTTLE VALVE ACTOR
l TRANSMISSION CONTROL MODULE ADAPTION CLEAR
l TRANSMISSION CONTROL MODULE OIL COUNTER RESET
l YAW RATE SENSOR CALIBRATION
Specification
l Display: 3.5’’ TFT LCD
l Operating temperature: 0 ～ +50℃
l Storage temperature: -20 ～ +70℃
l Operating current: 150mA 12V(Typical)
l Power consumption:1.8W(Typical)
l Packing dimension: 176*102*33mm(L×W×H)
l Weight: 270g
Packing list:
l Main unit 1pc
l Main Cable 1pc
l OBDII-16 Connector 1pc
l USB Cable 1pc
User Manual 1pc
