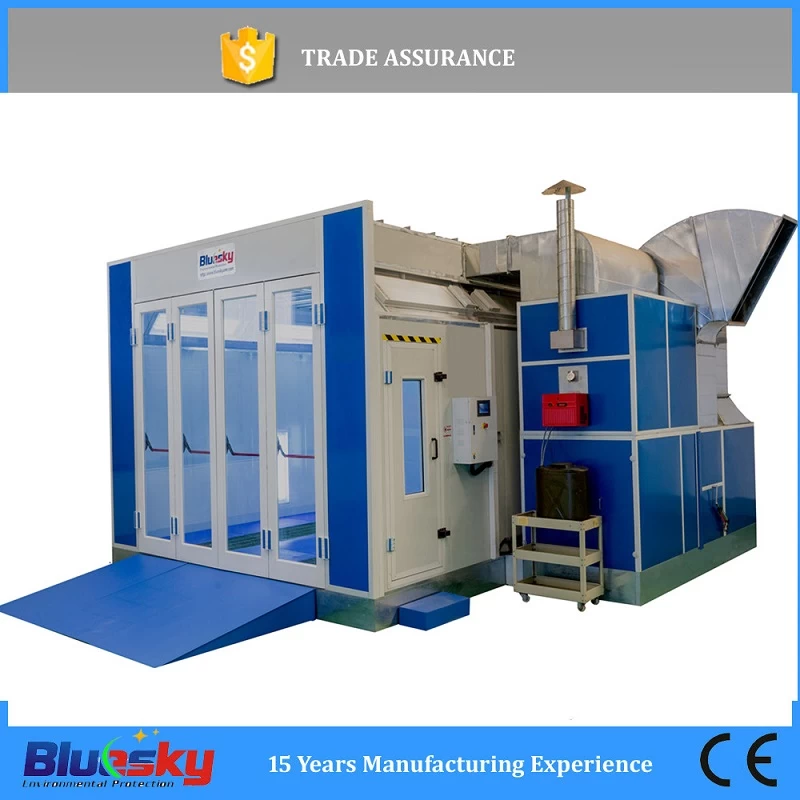

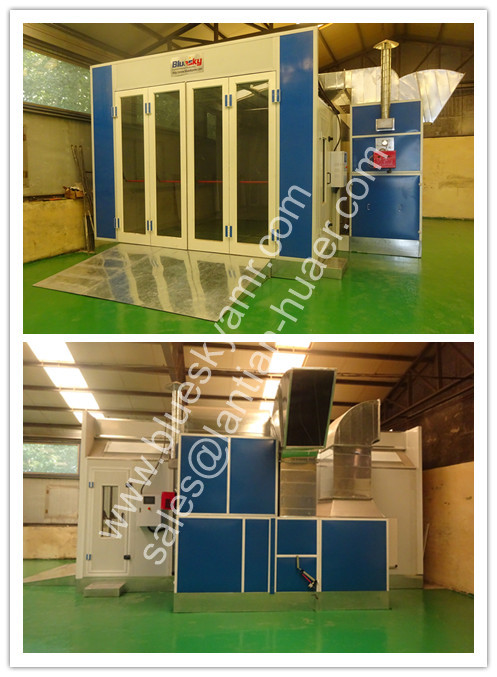

Australia Standard Spray Paint Booth BSH-SP9200B(AU)
Main technical performance and parameter of Automotive Paint booth:
| Dimensions |
Length(mm) |
Width(mm) |
Height(mm) |
| Outer Size |
7,000 |
5,200 |
3,600 |
| Internal Size |
6,900 |
3,900 |
2,750 |
| Entrance Door |
Adopt with handle and lock |
3,000 |
2,700 |
| Operatior’s Door |
Adopt with handle and Anti-Explosion |
800 |
2,000 |
Features:
|
Total power 17.5 kw; 380V/3ph/50hz; Noise < 80db
|
I. Wallboard
|
Adopt high quality fireproof insulation EPS panel, thickness: 75mm (Rock wall optional) Density is 12kg/m3 0.476mm thick colored steel on both side.
|
II. Foundation System
|
Full metal foundation, two rows flat steel grids and three rows metal non-slip diamond plates, the grids are twisted steel for the cross bar steel grating.
Galvanized and beautiful, durable and better force bearing.
|
III. Heating System
|
Adopt one unit of Italy Riello diesel burner G20 (Gas burner and Electrical heating optional);
One set of heat exchanger, high efficient heat-resistant stainless steel as cycling ;
4-6 minutes (from 20-60℃) underbaking status, max baking temperature is 80℃;
One unit of Cabinet(Rock-wool insulation), Two pcs Air ducts.
|
IV. Filtration System
|
Pre-filters Can Capture Granules Larger than 10μm;
Ceiling filter can Capture Granules Bigger than 4μm.
Floor filter multilayer glass fiber, air cleanliness in room can reach 98%
|
V. Light System
|
Ceiling light, 8 group×4pcs = 32pcs×36w;
Bottom light, 8 group×4pcs = 32pcs×36w;
With light fixture, anti-explosion design.
|
VI. Ventilation System
|
Air -inlet fan 1 sets×7.5kw, Centrifugal, Air outlet fan 1 set 7.5kw, Centrifugal. Air flow speed in cabin 0.4m/s.
One set of Painting and baking exchange system
One set of Cabinet for the fans and three pcs air ducts
|
VII. Control Panel
|
One unit, including spray switch, baking switch, emergency stop, etc.
|
VIII. Other Include
|
All sets of hardware, fasteners and sealants
|
Spray booth comparison:
Model
|
BSH-SP9100A
|
BSH-SP9100B
|
BSH-SP9200A
|
BSH-SP9200B
|
BSH-SP9300A
|
BSH-SP9300B
|
BSH-SP9500
|
Fuel
|
Electric
|
Diesel
|
Diesel
|
Diesel
|
Diesel
|
Diesel
|
Diesel
|
Internal size
|
6.9*3.9*2.65m
|
6.9*3.9*2.75m
|
6.9*3.9*2.75m
|
6.9*3.9*2.75m
|
8*4*3m
|
8.6*4.5*3.5m
|
15*5*4.8m
|
Entrance door
|
3*2.6m
|
3*2.7m
|
3*2.7m
|
3*2.7m
|
3*2.9m
|
3*3.5m
|
4*4.8m
|
Personal door
|
0.8*2m
|
0.8*2m
|
0.8*2m
|
0.8*2m
|
0.8*2m
|
0.8*2m
|
0.8*2m (2 units)
|
Panel
|
50mm
|
50mm
|
75mm
|
75mm
|
50mm
|
75mm
|
75mm
|
Air-intake fan
|
2*1.5kw
|
2*4KW
|
2*4KW
|
1*7.5KW
|
2*5.5KW
|
2*5.5KW
|
4*7.5KW
|
Exhaust fan
|
0
|
0
|
1*4KW
|
1*7.5KW
|
1*5.5KW
|
1*7.5KW
|
2*7.5KW
|
Air speed
|
0.3m/s
|
0.25m/s
|
0.3m/s
|
0.4m/s
|
0.35m/s
|
0.3m/s
|
0.3m/s
|
Ceiling Lights
|
32*36W
|
32*36W
|
32*36W
|
32*36W
|
40*36W
|
40*36W
|
64*36W
|
Bottom Lights
|
0
|
32*36W
|
32*36W
|
32*36W
|
32*36W
|
32*36W
|
64*36W
|
Burner
|
0
|
G10*1
|
G20*1
|
G20*1
|
G20*1
|
RG5S*1
|
RG5S*2
|
