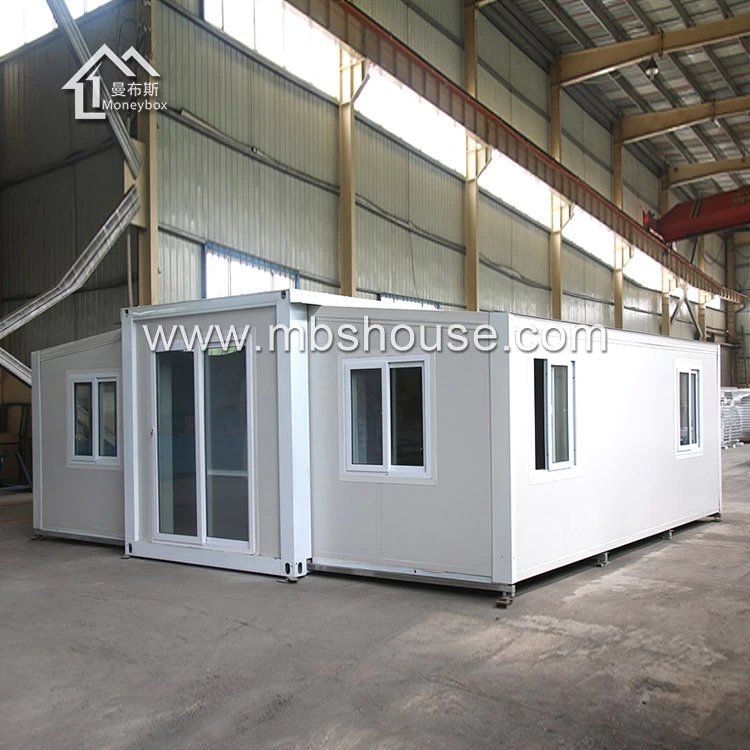

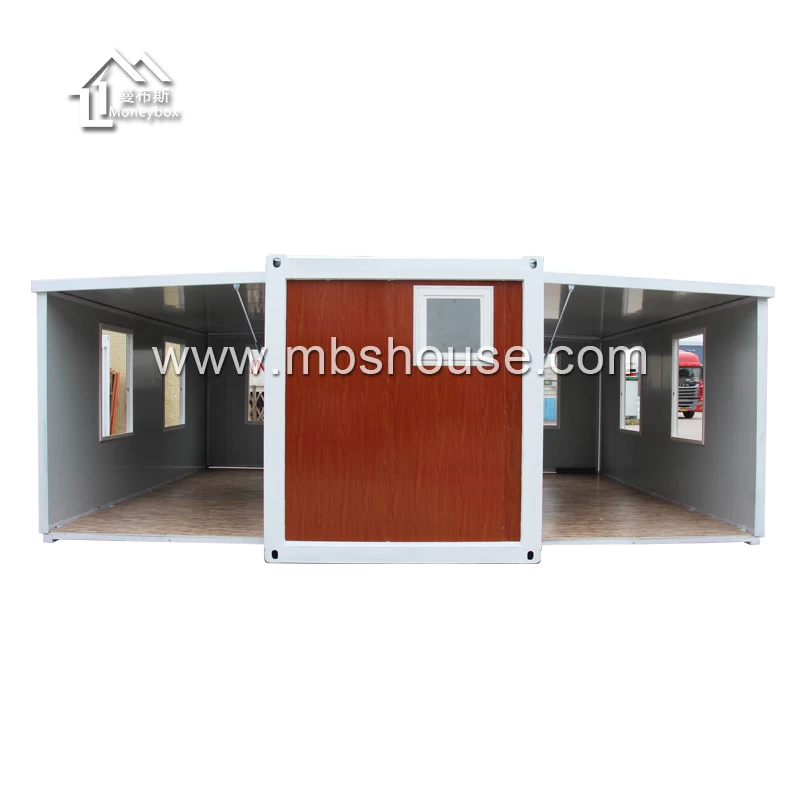

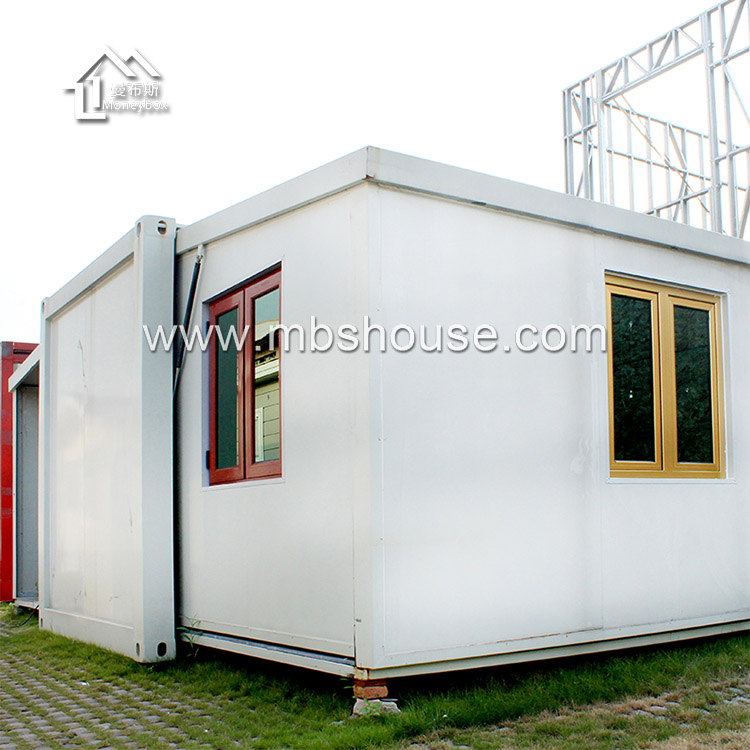

Australian Standard Luxury Prebuilt Expandable Container House
Product Character
1.Structure is reliable: Light steel structure system is safe and reliable
2.Easy assembly and disassemble: The house can be used repeatedly.
3.Beautiful decoration: The prefab house have bright and bland colour, with good decoration effect.
4.Flexible layout: Door and windows and other partition can be assembled in any transverse axes sites.
5.Using life: All the light steel structures have antisepsis-spraying treatment.Using life more than 15 years.
6.Eco-friendly and economical:Easy to assemble and disassemble, low wastage, without building rubbish.
Australian Standard Luxury Prebuilt Expandable Container House
|
No
|
Description
|
Specification
|
|
Standard Dimensions
|
|
1
|
Size
|
5850mm(L)x6300mm(W)x2500mm(H)
|
|
2
|
Packing Size
|
5850mm(L)x2250mm(W)x2500mm(H)
|
|
Specification
|
|
1
|
Frame Structure
|
2.0mm-4.0mm Cold formed profile steel / Square tube
|
|
2
|
Decoration
|
Primer Coat: epoxy zinc-rich primer two layers
|
|
Finishing Coat:alkyd honed painting white color/Polishing,Derusting
|
|
3
|
Roof
|
2mm Bending steel plate
|
|
4
|
Ceiling
|
50mm color steel sandwich panel(or carved metal insulation board)
|
|
5
|
Wall
|
50mm color steel sandwich panel (or 75mm/10mm )
|
|
6
|
Flooring
|
15mm fiber cement board+2mm PVC floor
|
|
(or 12mm/18mm/20mm CCA+10mm composite wood )
|
|
7
|
Door
|
50mm Metal composite door(glass wool/Phenolic Foam Board)
|
|
8
|
Window
|
PVC glass sliding window(4mm thickness glass)
|
|
9
|
Packing
|
Flat down packing
|
|
Technical Parameter
|
|
1
|
Temperature
|
(-45°C) to 50 °C
|
|
2
|
Anti-seismic
|
Grade 8
|
|
3
|
Wind Resistance
|
100km/h
|
|
4
|
Floor live load
|
2KN/m2
|
|
5
|
Roof live load
|
0.5KN/m2
|
|
6
|
Life span
|
more than 15 years
|
Australian Standard Luxury Prebuilt Expandable Container House
