Features of product:
(1)Our rock wool sandwich panel is fireproof, waterproof and airproof, sound insulation, heat preservation, convenient construction, attractive facade, environment-friendly
(2)All panels shall be packed according to various length and width indicted in packing list. Perlite wool shall be put under and above tips of panels. Whose reel perlite shall be adopted if necessary to avoid scratch. The foam above each panel pr each bundle of panels shall be marked with length.
(3)Our Vertical slab closing side has special N-couplers,it is waterproof and airproof and easy to installate.
(4)Rock wool sandwich board involve many fields in railway-aviation industry, automotive industry, electronic industry, power plants, chemical industry, cosmetics industry, pharmaceutical industry, food industry, logistics, real estate, sports stadiums, convention centers and other industrial, civil construction.
(5)Freedom to choose external steel and rock wool ,we meet costemers's any requires
Product technology data
|

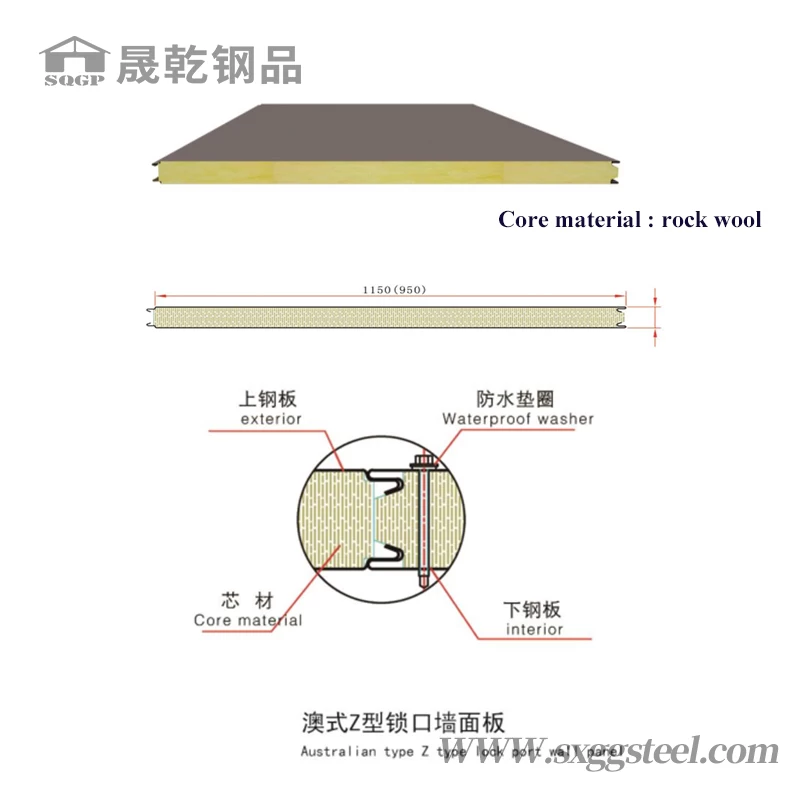

Australian standard Z lock rock wool Sandwich Panel
|
|
Effective width
|
Wall panel: 950mm,1150mm
|
|
Roof panel: 960mm
|
|
Material
|
Color Steel Sheet
|
|
Rock wool board
|
|
Structure
|
Upper and lower layer: color steel sheet
|
|
Middle layer: Rock wool board
|
|
Thickness
|
Color steel sheet: 0.3~0.8mm
|
|
Rock wool board: 50mm, 75mm, 100mm
|
|
Rock wool density
|
80~120kg/m³
|
|
Lifetime
|
20~35 years
|
|
Features
|
Heat Insulation, light weight, quick installation,waterproof, fireproof, soundproof, energy-saving,environmental friendly,
|
Application:
Rockwool sandwich panel is cold rolled into the required profiles from prepainted galvanized steel sheets or prepainted galvalume steel sheets, which is used as roofing panel in all kinds of buildings, such as industrial and civil buildings, warehouse, particular building, inner and outer decorative wall. And there are direct overlapped model, hidden screw model, self-locking model, steel tile sheet, as per your requirements.
