Australian Type X-Shoring Frame

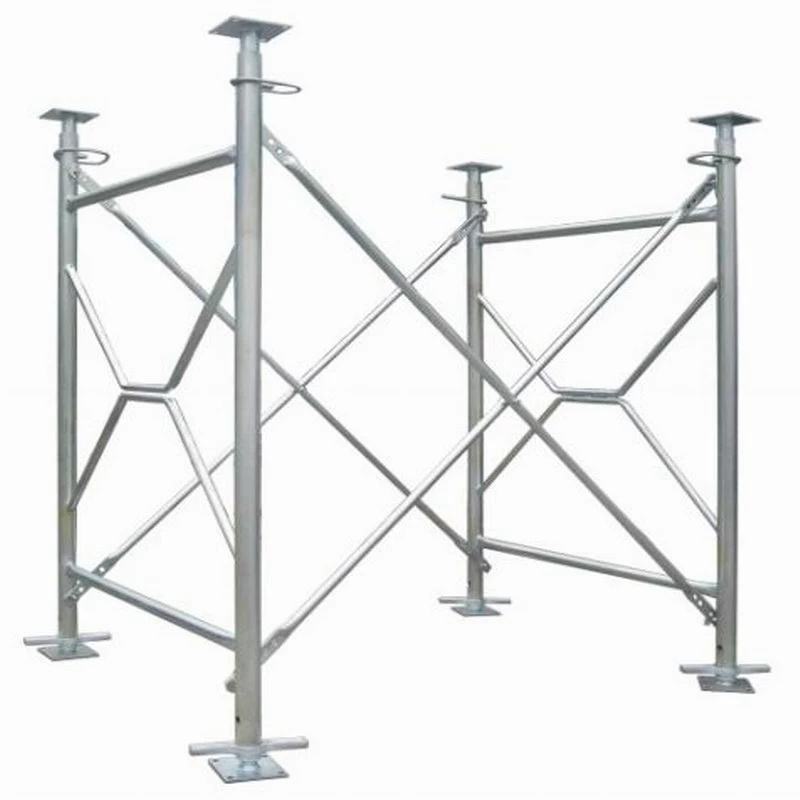

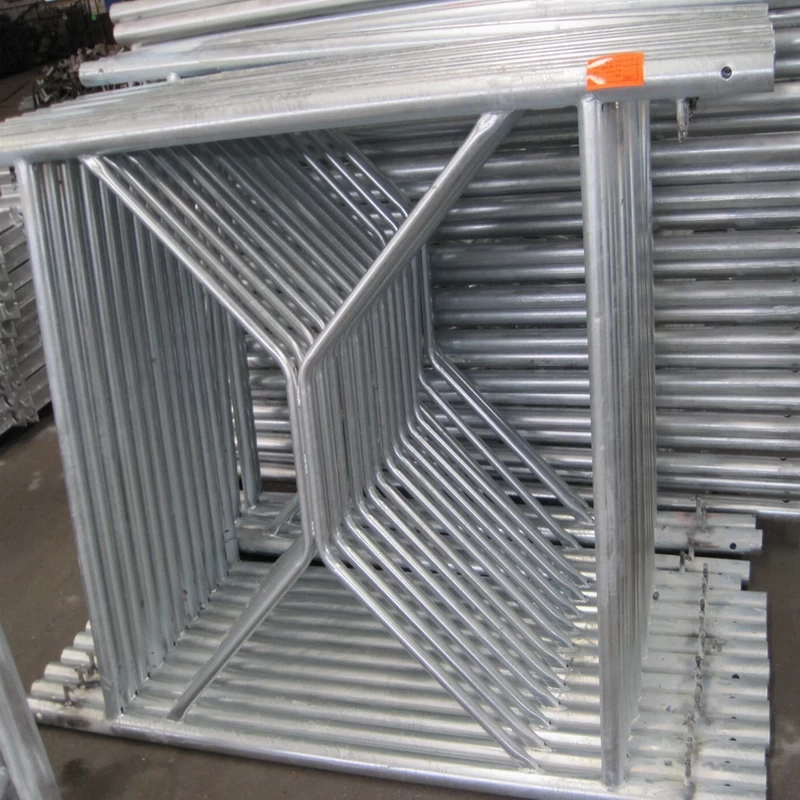

X-Shoring Frame is a typical shoring scaffolding used in Australia. It is made from high quality steel tube O.D. 60x3.5mm or O.D. 60x.40mm as frame legs, O.D. 42x2.3mm tube as the frame horizontal section, O.D. 28x2.0mm tube as the inside X-section. X-shoring frame offers heavy duty supoort for construction.
X-Shoring Frame Scaffolding
Main Components or accessories: X-frame, Shoring Brace, Top Insert (Prop), Collar (Lock) Pin, Shoring Spigot (Coupling Pin), Shoring Base Jack, Shoring U-head Jack, and so on.
Product Details:

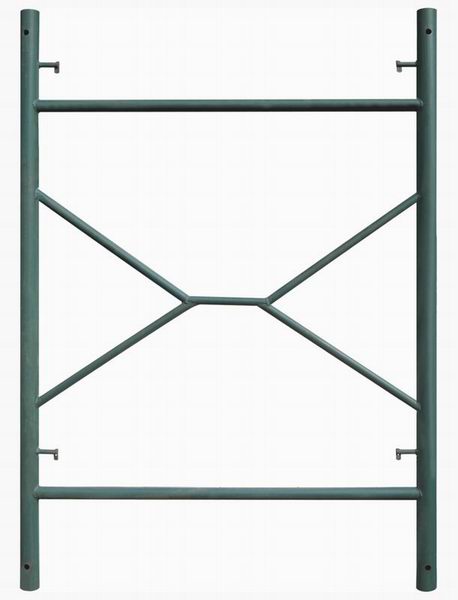

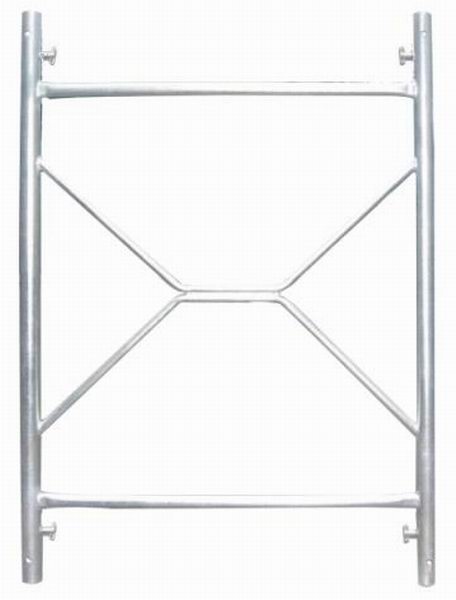

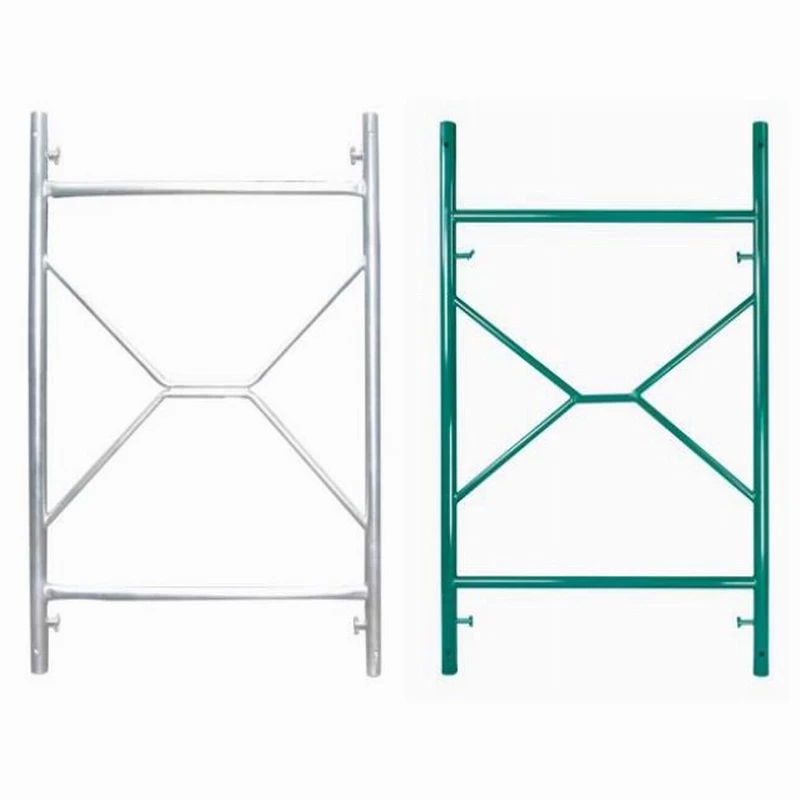

Australian Type X-Shoring Frames
| Code | Description | Material | Size | Weight(kg) | Weight(lbs) |
| XSF.47 | 4' x 7' X-Shoring Frame | Frame leg Ø60.3x3.5mm, Horizontal tube Ø42x2.2mm; Q235-Q355 | 1219x2134mm | 30.00 | 66.15 |
| XSF.46 | 4' x 6' X-Shoring Frame | 1219x1829mm | 27.00 | 59.54 | |
| XSF.45 | 4' x 5' X-Shoring Frame | 1219x1524mm | 24.00 | 52.92 | |
| XSF.44 | 4' x 4' X-Shoring Frame | 1219x1219mm | 19.10 | 42.12 | |
| XSF.43 | 4' x 3' X-Shoring Frame | 1219x914mm | 13.60 | 29.99 | |
| XSF.423 | 4' x 2'3" X-Shoring Frame | 1219x430mm | 11.90 | 26.24 |

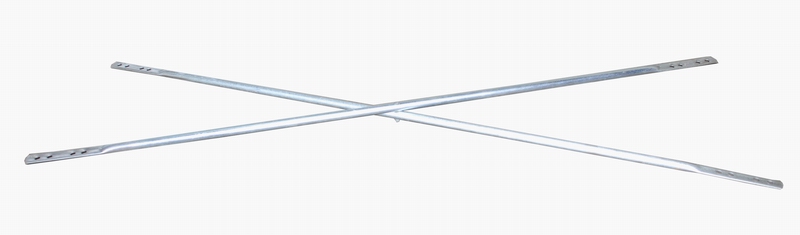

Shoring Braces
| Code | Size (Metric) | Material | Size (Imperial) | Weight(kg) | Weight(lbs) |
| SF.BR.74 | 7'x4' Shoring Brace | Ø28x2.0mm; Q235 | 2134 x 1219mm | 6.45 | 14.22 |
| SF.BR.73 | 7'x3' Shoring Brace | 2134 x 914mm | 6.10 | 13.45 | |
| SF.BR.730 | 7'x30" Shoring Brace | 2134 x 762mm | 5.96 | 13.14 | |
| SF.BR.72 | 7'x2' Shoring Brace | 2134 x 610mm | 5.84 | 12.88 | |
| SF.BR.65 | 6'x5' Shoring Brace | 1829 x 1524mm | 6.26 | 13.80 | |
| SF.BR.64 | 6'x4' Shoring Brace | 1829 x 1219mm | 5.80 | 12.79 | |
| SF.BR.63 | 6'x3' Shoring Brace | 1829 x 914mm | 5.40 | 11.91 | |
| SF.BR.62 | 6'x2' Shoring Brace | 1829 x 610mm | 5.10 | 11.25 | |
| SF.BR.54 | 5'x4' Shoring Brace | 1524 x 1219mm | 5.15 | 11.36 | |
| SF.BR.53 | 5'x3' Shoring Brace | 1524 x 914mm | 4.70 | 10.36 | |
| SF.BR.530 | 5'x30" Shoring Brace | 1524 x 762mm | 4.50 | 9.92 | |
| SF.BR.52 | 5'x2' Shoring Brace | 1524 x 610mm | 4.36 | 9.61 | |
| SF.BR.44 | 4'x4' Shoring Brace | 1219 x 1219mm | 4.56 | 10.05 | |
| SF.BR.43 | 4'x3' Shoring Brace | 1219 x 914mm | 4.05 | 8.93 | |
| SF.BR.42 | 4'x2' Shoring Brace | 1219 x 610mm | 3.65 | 8.05 | |
| SF.MBR | Multi-holes Braces 6'4"-7'3" | 1930-2210mm | 5.88 | 12.97 |
Shoring Frame Accessories
| Code | Description | Material | Weight(kg) | Weight(lbs) |
| SF.TP.36 | Top Insert Prop 1050mm (3'6") | Steel Grade: Q235 | 6.00 | 13.23 |
| SF.SSJ.24 | Shoring Solid Jack Base 24" | 7.20 | 15.88 | |
| SF.HSJ.24 | Shoring Hollow Jack Base 24" | 5.89 | 12.99 | |
| SF.HUJ.24 | Shoring Hollow U-head Jack 24" | 8.30 | 18.30 | |
| SF.BP.66 | Shoring Base Plate 6"x6" | 2.27 | 5.01 | |
| SF.BP.88 | Shoring Base Plate 8"x8" | 3.69 | 8.14 | |
| SF.UH.88 | Shoring U Head 8"x8" | 5.75 | 12.68 | |
| SF.UH.89 | Shoring U Head 8"x9" | 6.15 | 13.56 | |
| SF.CLP | Collar Lock Pin | 0.42 | 0.93 | |
| SF.CP | Coupling Pin | 0.52 | 1.15 |
